GSM/GPRS MODULE

Perfect M2M at minimal Footprint

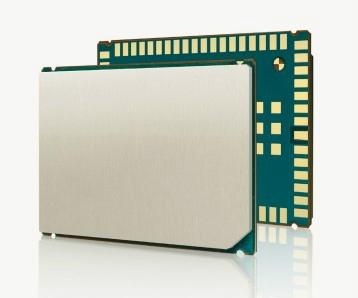

The Cinterion BGS2 module is the most successful 2G LGA wireless module in the market offering full voice capabilities, highspeed GPRS data transmission and best-in-class low power consumption, making it an exceptional choice for all-around machine-to-machine communications.

The ultra-compact design offers a minimal footprint perfectly suitedto the needs of M2M manufacturers of small, high-volume devices with a focus on reliable and efficient processes.

With BGS2 Release 2, the module adds Quad-Band GSM/GPRS with advanced SSL encryption for IP-based services, jamming detection, an analog and digital audio interface and generic flash access to the internal memory of the module. The unique multi-design capabilities of the new release allows seamless migration to the world’s smallest 3G wireless module, supporting HSPA data transmission within a contiguous design framework to assure long-lasting, future-proof M2M applications.

BGS2 comes in two flavors as Quad-Band with GPRS class 10 (BGS2-W) and Dual-Band with GPRS class 10 (BGS2-E). As is true with all Cinterion modules, the BGS2 includes full type approval (FTA) for global roaming and certification for use with the largest carriers worldwide.

The BGS2 wireless module features:

• Quad-Band 2G (BGS2-W)
• GPRS class 10
  DL: max. 85.6 kbps,
  UL: max. 42.8 kbps (BGS2-W)
  UL: max. 21.4 kbps (BGS2-E)
• Full Voice Support
• TCP/IP stack access via AT commands
• Mounting by solderable pins - no screws, no spacer
• Highly compact size
• Extended operating temperature range: -40° to +85°C
