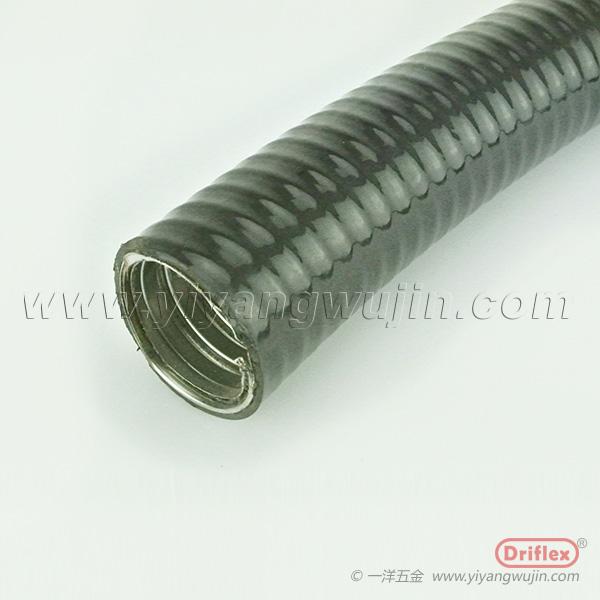

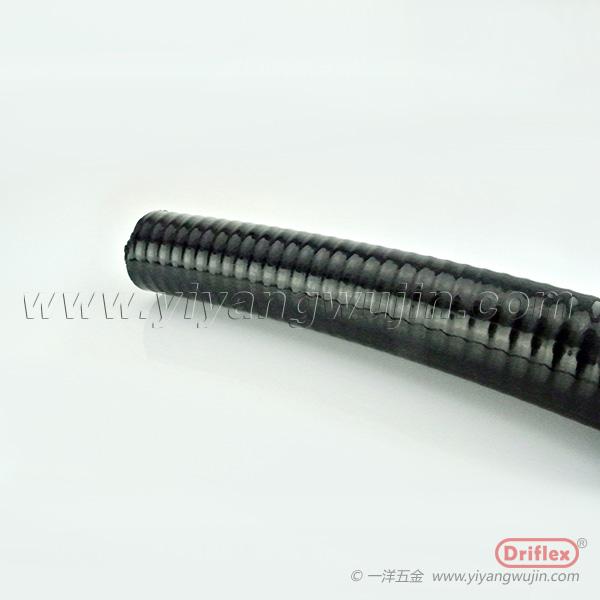

~防水金属平包管

Model: LT-12
Description:

包棉纱防水金属软管

镀锌铁皮制成,表面被覆耐延烧PVC材料.

极佳柔软性及绝对防水效果.

吸收移动和震动的性能,多方向弯曲挠性.

3/8"至1-1/4"嵌入一棉纱填封,1-1/2"至4"以反扣结构制作.

耐温范围从-20度至+105度.

适合使用于油气,水气重之场所.

PVC包塑，有选择黑色、灰色、橙色.

适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。

Part No

Nominal Size ISO (mm)

Nominal Size US (inches)

I.D. (mm)

O.D. (mm)

Min. Bend Radius (mm)

Length (M/coil)

LT-10 16 3/8" 12.3 - 12.8 17.5 - 18.0  60  30
LT-11 20 1/2" 15.8 - 16.3 20.8 - 21.3 80 30
LT-12 25 3/4" 20.7 - 21.2 26.2 - 26.7 100 30
LT-13 32 1" 26.2 - 26.8 32.7 - 33.4 150 30
LT-14 40 1-1/4" 34.8 - 35.4 41.4 - 42.2 180 20
LT-15 50 1-1/2" 40.1 - 40.6 47.4 - 48.3 200 20
LT-16 63 2" 51.3 - 51.9 59.4 - 60.3 250 15
LT-17 75 2-1/2" 63.0 - 63.6 72.1 - 73.0 300 10
LT-18 90 3" 78.0 - 78.7 87.9 - 88.9 450 10
LT-19 100 4" 101.6 - 102.6 113.2 - 114.3 600 5
