~低烟毒金属软管

Model: LFH-11
Description:

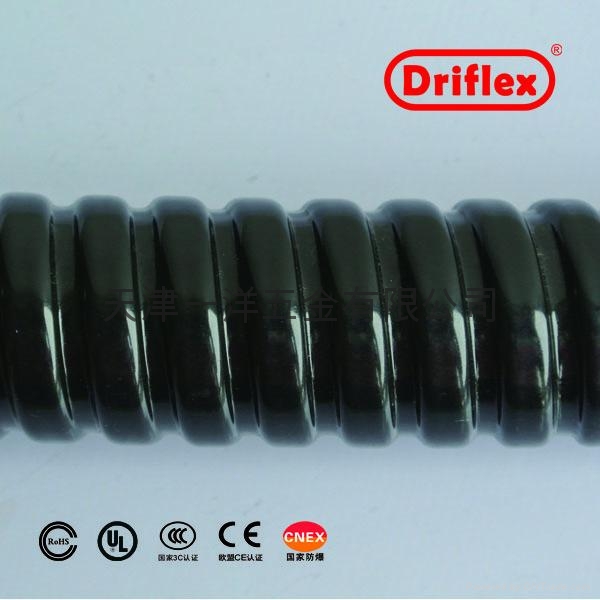

低烟毒金属软管

镀锌铁皮制成,表面低烟毒塑料被覆.

轻质结构，绝佳弯曲性能及低烟毒耐燃特性.

使用于任何狭小空间或通风不良，注重生命安全等之电气配管区域．

耐温范围从-10度至+90度.

Part No

Nominal Size
 ISO (mm)

Nominal Size
 US (inches)

I.D. (mm)

O.D. (mm)

Min. Bend
 Radius (mm)

Length
 (M/coil)

LFH-10 16 3/8" 12.3 - 12.8 16.7 - 18.0  50 50
LFH-11 20 1/2" 15.8 - 16.3 20.2 - 20.7 65 50
LFH-12 25 3/4" 20.7 - 21.2 25.5 - 26.1 75 50
LFH-13 32 1" 26.0 - 26.6 31.6 - 32.2 100 50
LFH-14 40 1-1/4" 34.7 - 35.4 40.8 - 41.5 125 30
LFH-15 50 1-1/2" 40.0 - 40.6 46.6 - 47.2 150 30
LFH-16 63 2" 51.3 - 51.9 58.1 - 58.7 175 20
LFH-17 75 2-1/2" 63.0 - 63.6 71.8 - 72.4 200 10
LFH-18 90 3" 78.0 - 78.7 87.2 - 87.9 225 10
LFH-19 100 4" 101.6 - 102.6 111.2 - 112.3 275 5
