上海淼亮供应Jacob喇叭口黄铜镀镍电缆接头

上海淼亮供应Jacob喇叭口黄铜镀镍电缆接头
型号:齐全
品牌:Jacob
原产地:德国
类别:工业设备 / 机械五金 / 其他机械五金
标签︰Jacob电缆接头 , Jacob电缆接头 , Jacob防爆产品
单价: ¥2 / 件
最少订量:100 件

产品描述

“上海淼亮供应Jacob喇叭口黄铜镀镍电缆接头”详细介绍

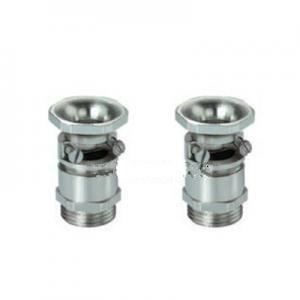

Jacob喇叭口黄铜镀镍电缆接头(Jacob-Trumpet-shaped cable gland)

JACOB FAVORIT cable gland 23.6xxMxx,FAVORIT cable gland 23.6xx

>> Configuration

Pressure screw:Brass CuZn39Pb3, nickel-plated

Strain relief clamp:Brass, nickel-plated

Bolts:Stainless steel

Washers:Steel, zinc-plated

Sealing ring:SBR/NBR, multiple perforation

Gland body:Brass CuZn39Pb3, nickel-plated

Connecting thread:metric, as per EN 60423

>>Properties

  • increased anchorage and bending protection

Temperature range:-30°C/+100°C

Protection grade:IP55

Comment:connecting thread long available on request

>>Features

Connecting thread standard length

A ØC L SW1 SW2 H   Part No.
  mm mm mm mm mm Piece
M12x1,5 5,5 - 8 6 17 20 35,5 100 23.609M12
M16x1,5 6 - 11,5 6 20 24 37 50 23.611M16
M20x1,5 6 - 11,5 6,5 22 24 37,5 50 23.611M20
M20x1,5 8 - 11,5 6,5 22 27 38,5 50 23.613M20
M25x1,5 8,5 - 15 7 27 30 40,5 50 23.616M25
M25x1,5 12 - 19 7 30 34 44,5 25 23.621M25
M32x1,5 17 - 27 8 40 46 51 10 23.629M32
M40x1,5 17 - 27 8 43 46 51 10 23.629M40

* Clamping range of anchorage

Connecting thread standard length

A ØC L SW1 SW2 H   Part No.
  mm mm mm mm mm Piece
Pg 9 6 - 8,5 6 17 20 35,5 50 23.609
Pg 11 7,5 - 11,5 6 20 24 37 50 23.611
Pg 13,5 8,5 - 13 6,5 22 27 38,5 50 23.613
Pg 16 9,5 - 15 6,5 24 30 40 50 23.616
Pg 21 12 - 19 7 30 34 45 25 23.621
Pg 29 16,5 - 27 8 40 46 51 10 23.629

* Clamping range of anchorage



上海淼亮供应Jacob喇叭口黄铜镀镍电缆接头 1上海淼亮供应Jacob喇叭口黄铜镀镍电缆接头 2上海淼亮供应Jacob喇叭口黄铜镀镍电缆接头 3上海淼亮供应Jacob喇叭口黄铜镀镍电缆接头 4上海淼亮供应Jacob喇叭口黄铜镀镍电缆接头 5
