“Jacob尼龙电缆防水接头”详细介绍

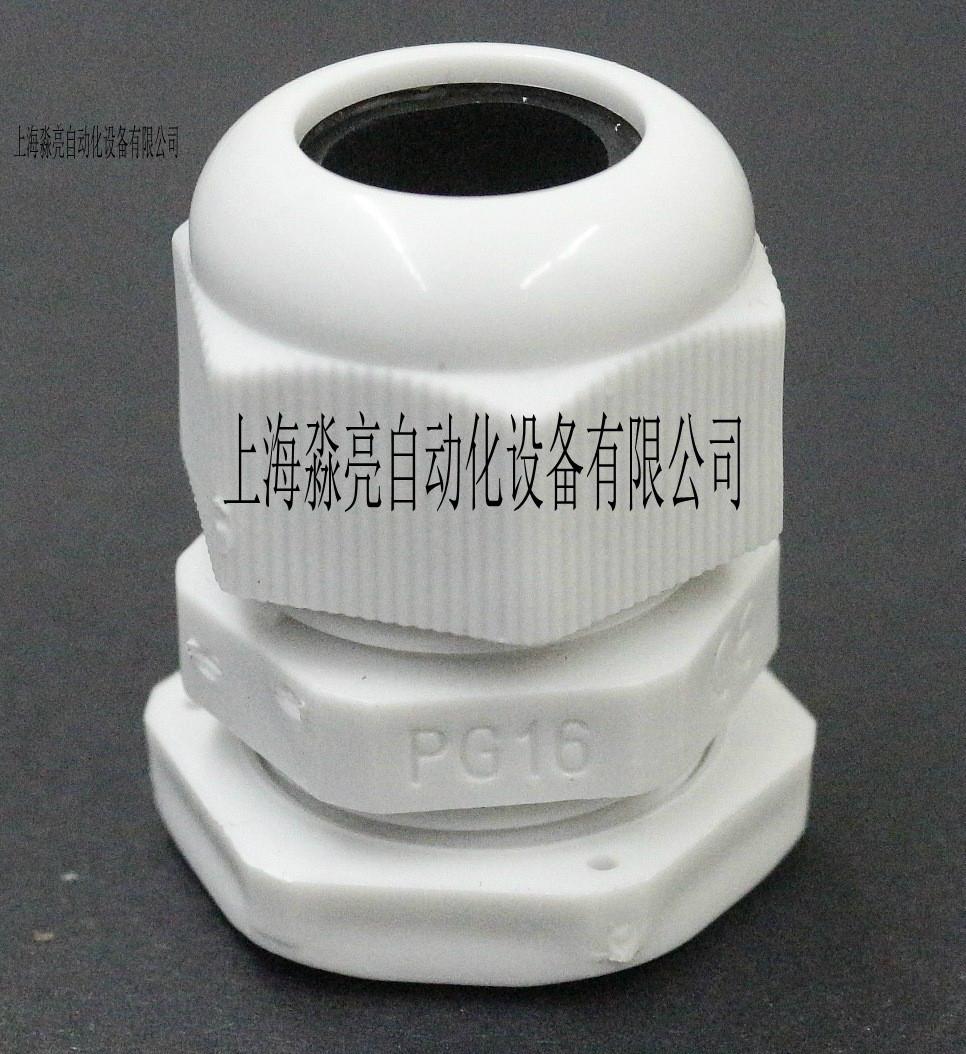

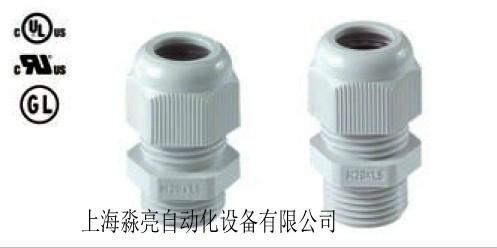

JACOB PERFECT cable gland 50.0xx PA/FLzzzz

JACOB PERFECT cable gland 50.1xx PA/Rzzzz

>> Configuration

Dome nut：Polyamide PA6 V-0Sealing ring：Polychloroprene-Nitrile rubber CR/NBR

Gland body：Polyamide PA6 V-0

Connecting thread：Pg as per DIN 40430

>> Properties

• for superior claims on firing protection through self-extinguishing polyamide

• integrated anchorage

• wide sealing and clamping range

• easy-to-install

Temperature range：-20°C/+100°C

Glow wire test：+960°C，at 0,8 mm wall thickness

Protection grade：IP68Test standard：UL 514B，UL / CSA-File，E140310

Comment，details about test standards see annex / hexagonal locknut of polyamide PA6 V-0 see 2xx PA-FLzzzz

>> Features

RAL 7035

Connecting thread standard length



A	ØC	L	SW1	SW2	H		Part No.
	mm	mm	mm	mm	mm	Piece
Pg 7	3 - 6,5	8	15	15	30,5	100	50.007 PA/FL
Pg 9	4 - 8	8	19	19	34	100	50.009 PA/FL
Pg 11	5 - 10	8	22	22	37	100	50.011 PA/FL
Pg 13,5	6 - 12	9	24	24	39	100	50.013 PA/FL
Pg 16	10 - 14	10	27	27	42,5	50	50.016 PA/FL
Pg 21	13 - 18	11	33	33	47,5	50	50.021 PA/FL



RAL 9005

Connecting thread standard length



A	ØC	L	SW1	SW2	H		Part No.
	mm	mm	mm	mm	mm	Piece
Pg 7	2 - 5	8	15	15	30,5	100	50.007 PA/RSW
Pg 9	2 - 6	8	19	19	34	100	50.009PA/R/SW
Pg 11	3 - 7	8	22	22	37	100	50.011 PA/RSW
Pg 13,5	5 - 9	9	24	24	39	100	50.013 PA/RSW
Pg 16	7 - 12	10	27	27	42,5	50	50.016 PA/RSW
Pg 21	9 - 16	11	33	33	47,5	50	50.021 PA/RSW
Pg 29	12 - 20	11	42	42	53	25	50.029 PAR/SW
Pg 36	20 - 26	13	53	53	61	10	50.036 PAR/SW



RAL 7035

Connecting thread standard length



A	ØC	L	SW1	SW2	H		Part No.
	mm	mm	mm	mm	mm	Piece
Pg 7	2 - 5	8	15	15	30,5	100	50.007PAR7035
Pg 9	2 - 6	8	19	19	34	100	50.009PAR7035
Pg 11	3 - 7	8	22	22	37	100	50.011PAR7035
Pg 13,5	5 - 9	9	24	24	39	100	50.013PAR7035
Pg 16	7 - 12	10	27	27	42,5	50	50.016PAR7035
Pg 21	9 - 16	11	33	33	47,5	50	50.021PAR7035
Pg 29	12 - 20	11	42	42	53	25	50.029PAR7035
Pg 36	20 - 26	13	53	53	61	10	50.036PAR7035



RAL 7001

Connecting thread standard length



A	ØC	L	SW1	SW2	H		Part No.
	mm	mm	mm	mm	mm	Piece
Pg 7	2 - 5	8	15	15	30,5	100	50.007 PA/R
Pg 9	2 - 6	8	19	19	34	100	50.009 PA/R
Pg 11	3 - 7	8	22	22	37	100	50.011 PA/R
Pg 13,5	5 - 9	9	24	24	39	100	50.013 PA/R
Pg 16	7 - 12	10	27	27	42,5	50	50.016 PA/R
Pg 21	9 - 16	11	33	33	47,5	50	50.021 PA/R
Pg 29	12 - 20	11	42	42	53	25	50.029 PA/R
Pg 36	20 - 26	13	53	53	61	10	50.036 PA/R





JACOB PERFECT cable gland 50.1xx PA/Rzzzz

RAL 9005
