50公斤钛合金真空熔炼炉

50公斤钛合金真空熔炼炉
型号:ZG-0.05L
品牌:高盛电炉
原产地:-
类别:工业设备 / 冶金设备
标签︰50公斤镍基合金炉 , 50公斤真空熔炼炉 , 50钛合金熔炼炉
单价: ¥400000 / 件
最少订量:1 件
发送查询

产品描述

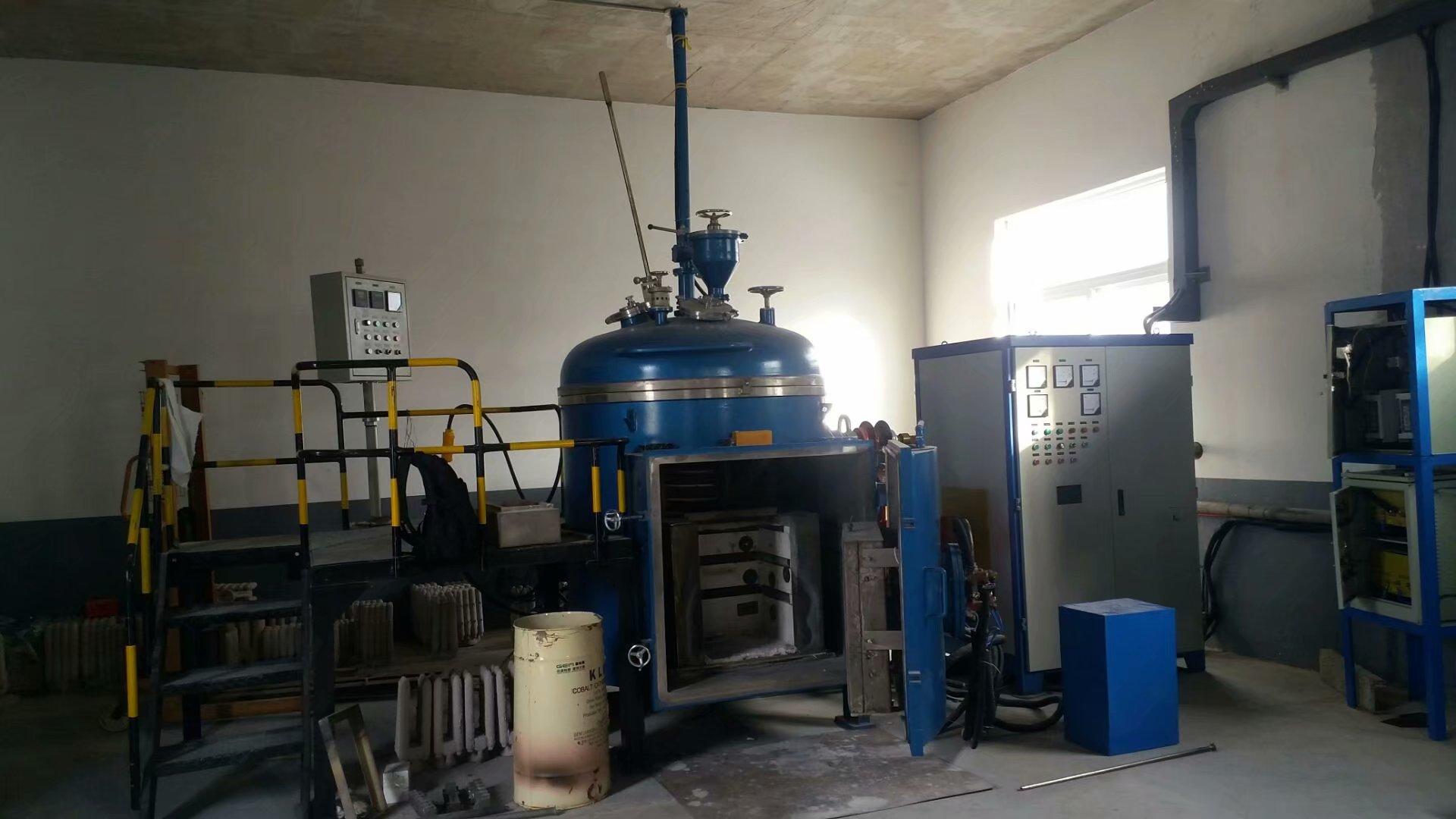

ZG-0.05L 周期式真空感应熔炼离心精密铸造炉技术方案

一、设备用途

ZG-0.05L 周期式真空感应熔炼精密铸造炉是熔炼坩埚封闭在真空室中,利用电磁感应产生的涡

流热做热源(电能转换成热能)。在真空状态下进行金属的冶炼并浇铸,从而得到高质量材料的熔

炼设备。主要用于精密合金、高温合金、镍基、钴基、稀土金属、多晶硅等金属的熔炼。

主要由炉体、炉盖、装置加料、测温装置、捣料装置、中频电源、进电装置、倾炉浇铸装置、

离心铸造机、真空系统、中频电源、调压加热炉电源、电气控制系统、设备冷却系统等构成

二、 熔炼炉技术参数:

额定容量:50kg

线圈尺寸:直径 280mm 高度 380mm

线圈材质:T2

熔化速度:30-40 分钟/

熔炼环境:真空或惰性气体状态。

炉体直径:1200mm(以设计数据为准)

最高温度:2000℃ (与坩埚材质有关,最高可以达到 2200 度)

工作温度:1750℃

坩埚材质:氧化镁坩埚、刚玉坩埚、石墨坩埚

极限作真空度:≤6.67X10

-3

Pa (空炉、冷态、未通水)

熔炼工作真空度:≤6.67X10

-2

Pa

压升率:≤3Pa/h

抽真空时间:≤20min

中频电源型号:KGPS-100

电源额定功率:100KW

电源频率:2500Hz

接触式测温-钨铼热电偶测温仪,浸入钢液面 温度测量范围:1000-1700℃

控制系统:西门子 PLC 控制 触摸屏

浇注方式:液控倾翻坩埚

浇铸倾斜角度:-10-100°

模具材质:蜡模 、钢模、石墨模具3

设备布局尺寸:L:5500 mm X W:4500mm X H:4200mm

3.真空系统配置:

熔炼室:KT-400 油扩散泵 1 , ZJP-300 罗茨泵 1 台, 2X--70 机械泵 1 .

真空系统配置气动真空挡板阀门、真空管道、真空密封、复合真空计、真空表。气动充气阀、放气阀

4、电力要求:

低压配电:3 /接地/中性

电源电压:380 V AC±5%,50Hz

设备总功率:130KW

控制电压 (内部产生):220V

5、 冷却水参数

冷却设备:FB-250 闭式冷却塔

水质:冷却水:软水

喷淋水 自来水

冷却水量: 20m3/h (循环量)

最高进水温度 5℃-35℃;

出水温度 <55℃.

进水压力 0.15—0.3MPa

6、充气系统:

气体类型:氩气、氮气

气体压力:0.4-0.6MPa

充入炉体内压力操作人员进行调节

控制方式::自动和手动两种控制方式

 Vacuum induction melting furnace by the medium frequency power supply, vacuum furnace, furnace, vacuum system, cooling system, etc.Main functions are vacuum melting furnace, mould heating.Vertical casting, crucible bottom blowing refining, temperature measurement, sampling and loading, the computer control system, the closed cooling equipment.

Ⅰ、ZG-0.05L vacuum induction melting furnace technical parameters:


Rated capacity                     50Kg

IF Power                           100KW

Max temperature                    1800℃   (Depends on the crucible material)
Work temperature:                  1750℃

Temperature measurement methods     Thermocouple temperature measurement



working condition                   Vacuum or atmosphere protection

Max vacuum                          6.7x10-3 Pa

Work vacuum:                        6.7x10-2 Pa

pressure rise rate                 4 Pa  per hour

Vacuum pump configuration:          KT-300  Oil diffusion vacuum pump

                                    ZJP-300  Roots pump

                                    2X-70   Mechanical vacuum pump

Protect gas :                       Argon or nitrogen

MF Power                             KGPS-100KW  Air cool

Coil input  voltage:                250-375V
IF power frequency:                 2500Hz
Input voltage                       380V
Input Phase:                        3 phase
Input Power Frequency:              50Hz
Equipment layout region              Length 4500mm ,  width 3000mm,    Height 2500mm

Cooling water circulation           10m3 per hour

Input water temperature             5 degree to 35 ℃

Out water temperature               less than 55℃

Water pressure                      0.15-0.25 MPa;









Ⅱ、 ZG-0.05L vacuum induction melting furnace supply list

1、 The melting furnace part

序号

Item

项目名称

Product Name

  规格及说明

Specifications, Instructions

数量

QTY

1

炉盖Lid



1/PCS

2

钨铼热电偶测温

thermocouple temperature measurement

W5/26Re  200-1600℃

1/PCS

3

加料alloy Material Feeding,



1/PCS

4

搅拌mixing arm

 Tungsten  muddler   length 150mm

1/PCS

5

视窗   View Window

观察视窗 Watch window

1/PCS



1/PCS

6

炉盖提升机构

hoisting mechanism of furnace  lid

hydraulic

1/PCS

7

炉体 Melting Furnace Pot

直径1000mm,内壁不锈钢 外壁碳钢

Diameter of 1000 mm, the inter wall of stainless steel, the outer wall of carbon steel

1/PCS

8

炉门furnace door

width 400mm  高 height 600mm

1/PCS

9

倾炉机构  furnace tilting mechanism

hydraulic

1/PCS

10

导电铜轴Conductive copper shaft



1/PCS

11

感应线圈 coil

50Kg  coil

1/PCS

12

中频电源 Intermediate frequency power

KGPS-100kw-2500HZ

1/PCS

13

水冷导电铜排

Water conductive copper platoon



1/PCS

14

除尘挡板 Dust   baffle



1/PCS

15

水冷锭模接口



2/2 PCSES













2.真空系统 The vacuum system part

序号

Item

项目名称

Product Name

  规格及说明

Specifications, Instructions

数量

QTY

1

机械泵Mechanical pump

2X-70    pumping speed  30L/S , power  3.5KW

1/PCS

2

电磁压差

DYC-JQ Electro-vacuum Differential Pressure Valve

DDC-JQ80

1/PCS

3

罗茨泵Roots pumps

ZJP-300     pumping speed 150L/S  power  5.KW

1/PCS

4

气动高真空挡板阀

GDQ-J series high-vacuum flap valve

GDQ-80

2 PCSES

5

油扩散泵 oil-vapor diffusion pump

KT-300     pumping speed 6500L/S  power  6KW

1/PCS

6

气动高真空挡板阀

GDQ-J series high-vacuum flap valve

GDQ-200

1/PCS

7

冷阱cold trap

¢300

1/PCS

8

真空管道vacuum piping

DN100

4 PCSES

9

不锈钢波纹管

Vacuum stainless steel bellows

DN100

3 PCSES

10

充气球阀filler valve

Filling the Argon or nitrogen gas into the furnace

1/PCS

11

放气球阀Vacuum degassing valve

¢10

1/PCS

12

复合真空计

Compound vacuum gauge

ZDF―Ⅲ型系列电阻/电离复合真空计

1/PCS

13

规 管vacuum gauge

ZJ-52T电阻规  ¢15.5  Vacuum gauge tube resistance

1/PCS

ZJ-27电离规   ¢15.5 ionization vacuum gauge

1/PCS

14

真空表Mechanical vacuum gauge



1/PCS

15

油水分离器

oil and water seperator



1/PCS

16

压缩空气compressed air system

Greater than or equal to 0.6 MPa

1/PCS

4中频电源及电气控制系统  Intermediate frequency power and control system

序号

名称

规格及说明

数量

1

中频电源

Intermediate frequency power

KGPS-100KW   4000Hz

1套

2

 Manual control and

computer control system

Furnace cover lift control
Turret lifting
Temperature measuring operation
Charging operation
Sampling operation
Mixing operation
Medium frequency power supply control
The vacuum pump control
Vacuum valve control
Cooling water switch operation



3



仪表

仪器



ammeter
voltmeter
Intermediate frequency voltage
Frequency table
Power meter,
Temperature measurement table (metal)
Temperature measurement table (diffusion pump)
alarm
Indicator button
 state of light







5、冷却系统

序号

Item

项目名称

Product Name

  规格及说明

Specifications, Instructions

数量

QTY

1







2

控制箱Cooling equipment control box



1/PCS

3

分水器(闭式) Water diverter



1/PCS

4

集水器(闭式)Water collector



1/PCS

5

流量开关 water valve



18/PCSES

6

水压表 water pressure gauge



1/PCS

7

水温表water temperature gauge

 ¢60

1/PCS

8



感应线圈、中频电源

2/PCSES

9



PPR管道到感应线圈之间



10



分水器、集水器到设备之间的管道



6、其它

序号

Item

项目名称

Product Name

  规格及说明

Specifications, Instructions

数量

QTY

1

    工作平  working platform

标准型材焊接

 1PCS

2

图纸 Drawings

地基图 设备总图纸 电气图纸等

Foundation Drawing, Equipment Overall Drawing, Electrical Drawing

全套/Completed Set

3

文献资料

Documents

设备使用说明书 、维护手册等

Equipment Use Instruction Books, Maintenance Books

全套/Completed Set







7、安装材料及备品配件

序号

Item

项目名称

Product Name

规格及说明

Model or Note

数量

QTY

1

石墨坩埚graphite  Crucible

50公斤

1PSCES

3

打结料 Lining



2/bags

4

耐火胶泥 Refractory mortar



2/bags

5

水玻璃  Water soluble silicate



40L

6

石棉布 Asbestos Cloth



1/roll

7

石棉板 Asbestos board



2/  PSCES

8

钨铼热偶丝 Thermocouple Wire

0.5mm WRe5/26 D分度热偶丝

2PSCES

9

测温管temperature tube

金属陶瓷 Metal ceramic temperature tube

2/PCS

10
