型号: | CKT432 |
---|---|
品牌: | CKT |
原产地: | - |
类别: | 电子、电力 / 仪器、仪表 / 其他仪器、仪表 |
标签︰ | 手持式数字电桥 , LCR测试仪 , 电感测试仪 |
单价: |
¥1350
/ 台
|
最少订量: | 1 台 |

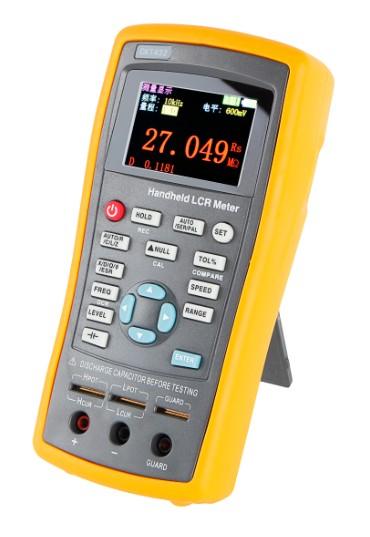

CKT431/432/433 handheld LCR meter adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. CKT431/432/433 handheld LCR meter have the highest configuration. With the highest frequency of 100kHz, constant 100Ω source internal resistance, 0.6Vrms measurement voltage level, and 0.2% accuracy, make CKT431/432/433 have the excellent performance of both desktop instrument and portability of handheld.
SPECIFICATIONS |
|
|
CKT431/CKT432/CKT433 Handheld LCR Meter |
Main Parameters |
L, C, R, Z, DCR |
Sub Parameters |
D, Q, θr, θd, X, ESR |
Accuracy |
0.2% |
Frequency |
CKT431:100Hz,120Hz,1kHz, 10kHz CKT432:100Hz,120Hz,1kHz,10kHz,40KHz,100kHz CKT433: 100Hz~100KHz (continuously adjustable at a step of 1Hz) |
Display Range |
L: 0.01mH-9999H C: 0.01pf – 9999mF R, Z: 0.0001W-99.99MW D: 0.0001 –9.999 Q: 0.0001 –999.9 D%: -9999% - 9999% q(deg):-179.99°-179.99° q(rad) :-3.1416 –3.1416 |
Speed |
1 time/s (slow), 2 times/s (medium), 4 time/s (fast) |
Source Resistance |
100W |
Internal Bias |
0-500mV adjustable, at a step of 1mV |
Signal Level |
0.1Vrms, 0.3Vrms, and 0.6Vrms; CKT433 (0-0.7V adjustable) |
Range |
Automatic or Manual |
Display Max |
Principle Parameter: 49999 Sub Parameter:49999 |
Adjustment |
Open/short scan frequency correction for each range |
Comparator |
1 set, compare main parameters |
Trigger |
Internal |
Interface |
Build-in Mini-USB interface(virtual interface)Charging interface |
Others |
2.8 inch true-color 16M color TFT-LCD display;USB communication; compatible SCPI instruction set;switch in both English and Chinese;adjustable back light; automatic power off |
GENERAL FEATURES |
|
Power Supply (ATL909) |
Input:100-240V~50/60Hz 0.35A Output:9V 1A DC |
Battery Parameter |
8.4V,Li,1400mAh rechargeable battery |
Working Time |
Highlight 30%≥14 hours,Highlight 50%≥12 hours, Highlight 100%≥9 hours |
Size |
Outside(mm):90(Width)x190(Height)x31(Depth) 400g |
OREDRING INFORMATION |
|
Accessories |
Four-terminal Kelvin test clip; DC adapter; High capacity lithium battery; Mini-USB cable |
