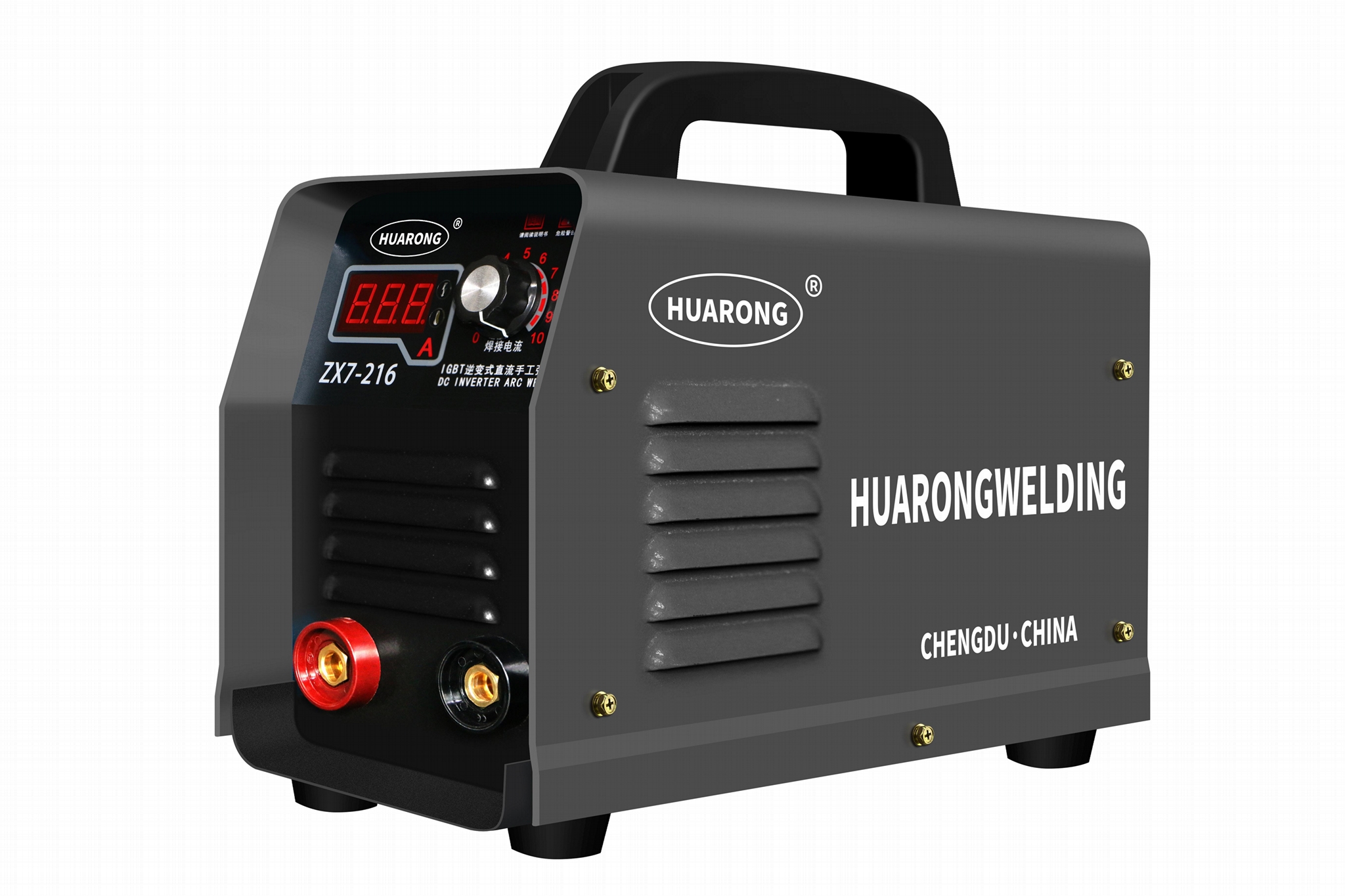

IGBT 单管逆变式直流弧焊机

IGBT 单管逆变式直流弧焊机
型号:ZX7-216
品牌:华荣
原产地:中国
类别:工业设备 / 机械五金 / 其他机械五金
标签︰电焊机 , 弧焊机 , 焊机
单价: ¥308 / 件
最少订量:10 件
发送查询

产品描述

Function: hand welding

Application Scope: welding carbon steel, stainless steel, foundry iron and so on.

Performance Features

The machine adopts advanced single IGBT HF inverter technology.

The machine itself can start arc and the thrust current can be adjusted respectively,making it suitable for welding acid and basic electrode rods.

The machine can protect itself from the damage of overvoltage, undervoltage, overflow, overload.

Easy arc-striking, stable arc, less splash, beautiful weld forming.



ZX7-216

Name

Unit

Parameter

Voltage/frequency

V/Hz

1~220V±20% 50/60Hz

Rated input capacity

KVA

6.8

Rated input current

A

31

Power factor

-

0.73

Output no-load voltage

V

62

Rated duty cycle

%

60/40℃

Current range

A

30-216

Wire diameter

mm

≤φ3.2

Efficiency

%

85

Insulation class

-

F

Protection degree

-

IP21S

Dimension(L×W×H)

mm

300×130×230

Net weight

Kg

4.3

Carbon steel, stainless steel, low-alloy steel

Slab thickness

mm

2.0-6.0

Wire diameter

mm

2.5/3.2

Current range

A

30-216

付款方式︰TT
