IGBT 逆变等离子弧切割机

IGBT 逆变等离子弧切割机
型号:LGK7-100
品牌:华荣
原产地:中国
类别:工业设备 / 机械五金 / 其他机械五金
标签︰切割机 , 数控切割机 , 等离子切割机
单价: ¥3600 / 件
最少订量:1 件
发送查询

产品描述

Outline and function

Function: plasma arc cutting

Application Scope: cutting stainless steel, alloy steel, foundry iron, carbon steel, Copper, Aluminum, Manganese, Titanium, clad plate and so on.

Performance Feature

Digit display can preset cutting parameters accurately and the current is stepless.

With advanced soft switch high frequency inverter technology and super-power IGBT module switch device circuit,the machine is reliable.

100% arc-striking success rate, stable and stiff arc, smooth incision, excellent technological performance.

The machine has all signal output required by CNC control and is suitable for automatic cutting.

With high duty cycle,this machine can keep working a long time under maximum current.

LGK7-100

Name

Unit

Parameter

Voltage/frequency

V/Hz

3~380V±15% 50/60Hz

Rated input capacity

KVA

18.5

Rated input current

A

24

Power factor

-

0.86

Rated output current

A

100

Rated output voltage

V

120

Rated duty cycle

%

100/40

Output no-load voltage

V

310

Output current range

A

30~100

Quality cutting thickness (steel )

mm

22

Max cutting thickness (steel)

mm

40

Plasma gas usage

-

Compressed air

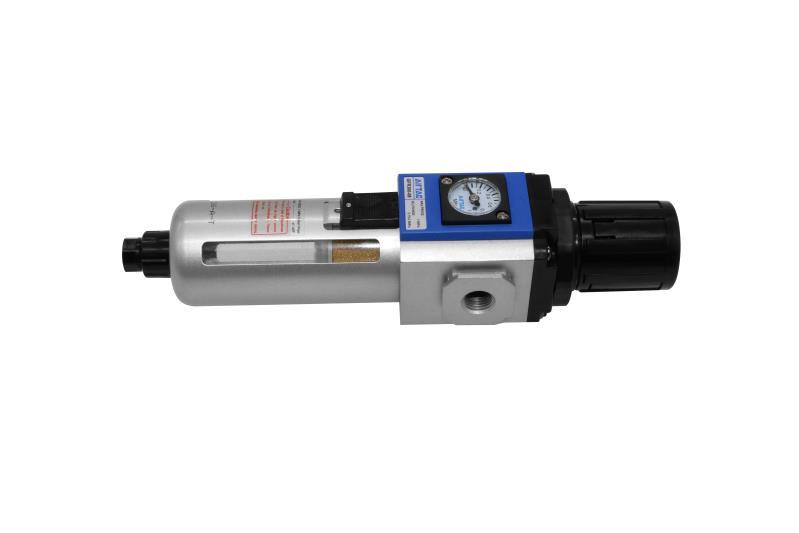

Working gas pressure scope

MPa

0.45-0.55

Efficiency

%

90

Insulation class

-

F

Shell protection degree

-

IP21S

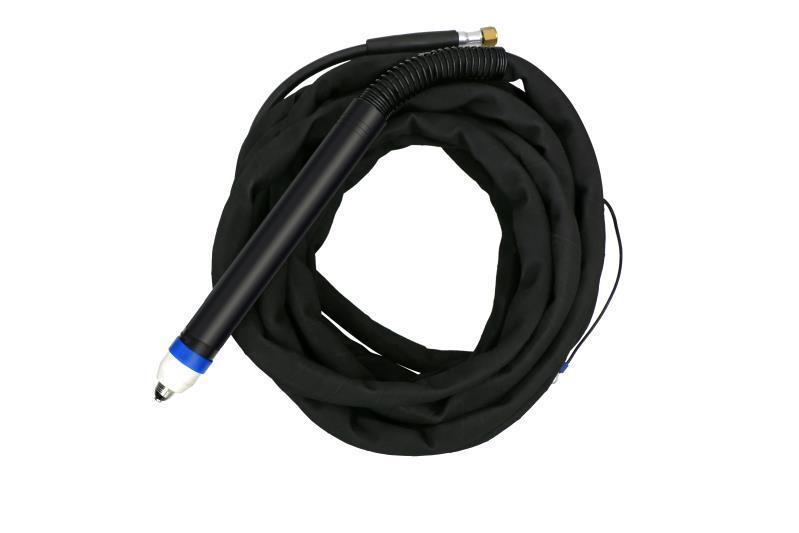

Torch cooling

-

Air-cooled

Arc-striking mode

-

Non-contact arc-striking

Dimension(L×W×H)

mm

670×325×595

Net weight

Kg

54

付款方式︰TT
