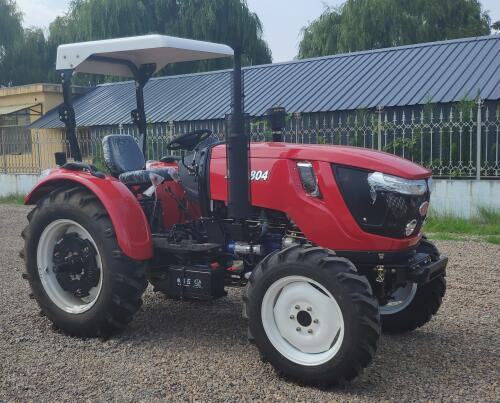

Model

                                TL904

Machine parameters

Type

4×4

Rated Traction( KN)

17.5

PTO Max Power (KW)

56.2

Dimensions(mm)

3980×1820×2600

Wheelbase(mm)

2050

Track(mm)

Front wheel(mm)

1280

Rear wheel(mm)

1100-1390

 Ground clearance(mm)

Minimum ground clearance(mm)

330

Use unilateral braking

4.2±0.30

Not unilateral braking

4.8±0.30

Minimum use quality

3144

Gearbox

12F+12R Shuttle Shift

Steering System

 hydraulic steering gear

Drive Train

Clutch

double acting clutch

Working equipment

Maximum lifting force at 610mm(KN)

≥17.7

Suspension mechanism

Three-piont suspension type 1

PTO shaft

PTO Spedd(r/min)

540/760(option: 540/1000)

Tire

Front wheel specifications

8.3-20/8.3-24

Rear wheel specifications

12.4-24/12.4-28/14.9/30/11-32

Engine

Type

Inline, 4 stroke, Water cooled

Cylinder

4

Optional

Cabin

AC/Heater

Roll bar

Canopy

Perfusion volume

Radiater(L)

12

Fuel tank(L)

64

Hydraulic steering oil(L)

0.8

Steering system oil(L)

20

This parameter table is for reference only, everything is based on actual products
