型号: | - |
---|---|
品牌: | - |
原产地: | - |
类别: | 工业设备 / 农机、农具 |
标签︰ | 农业机械 , 农业拖拉机 , 农业机械设备 |
单价: |
¥15000
/ 件
|
最少订量: | 1 件 |

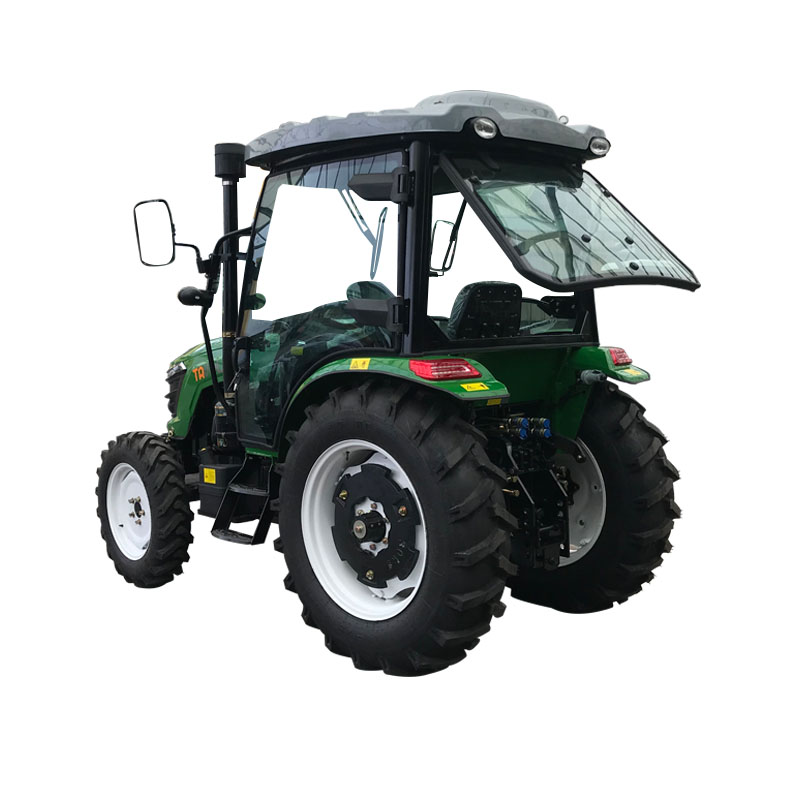

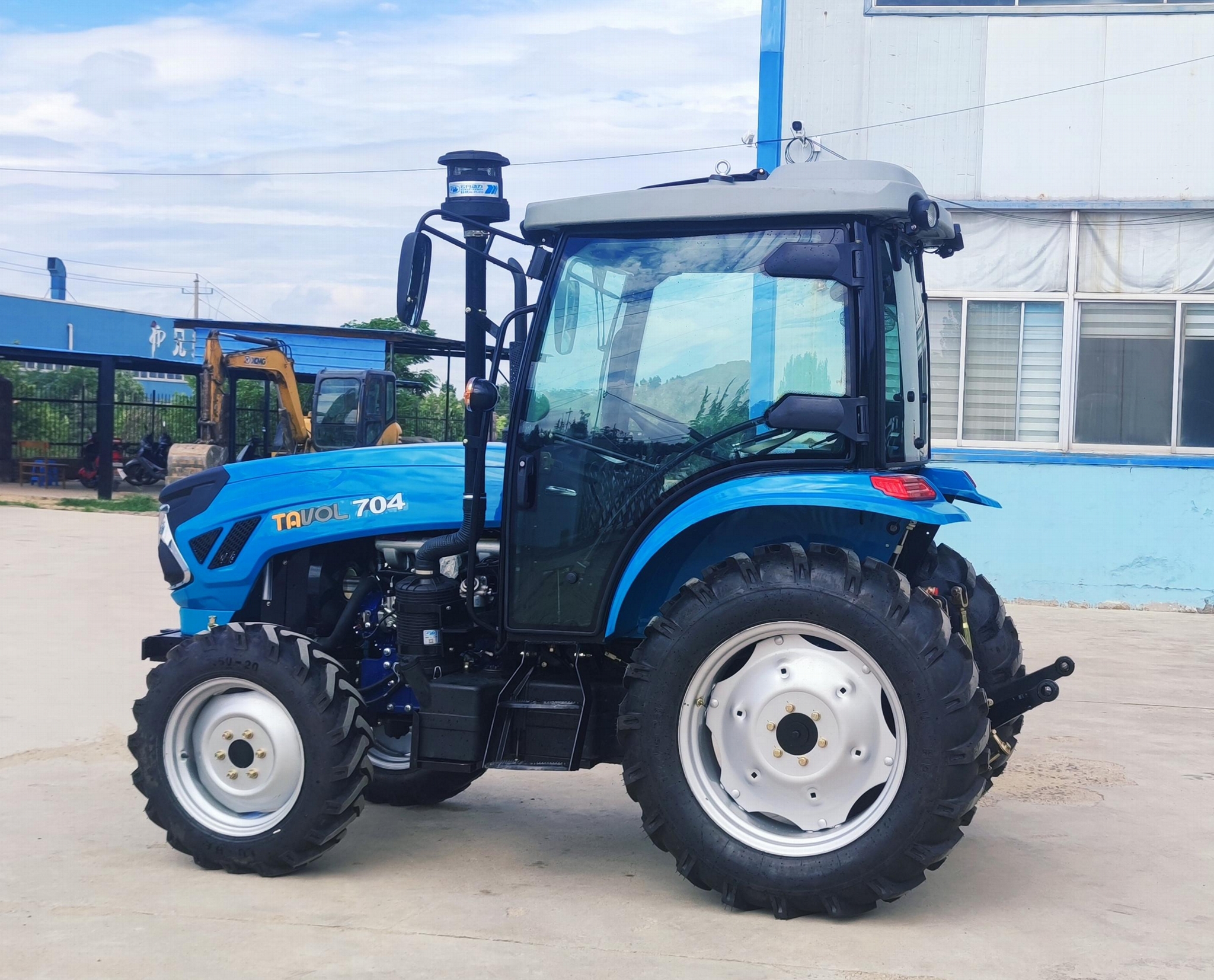

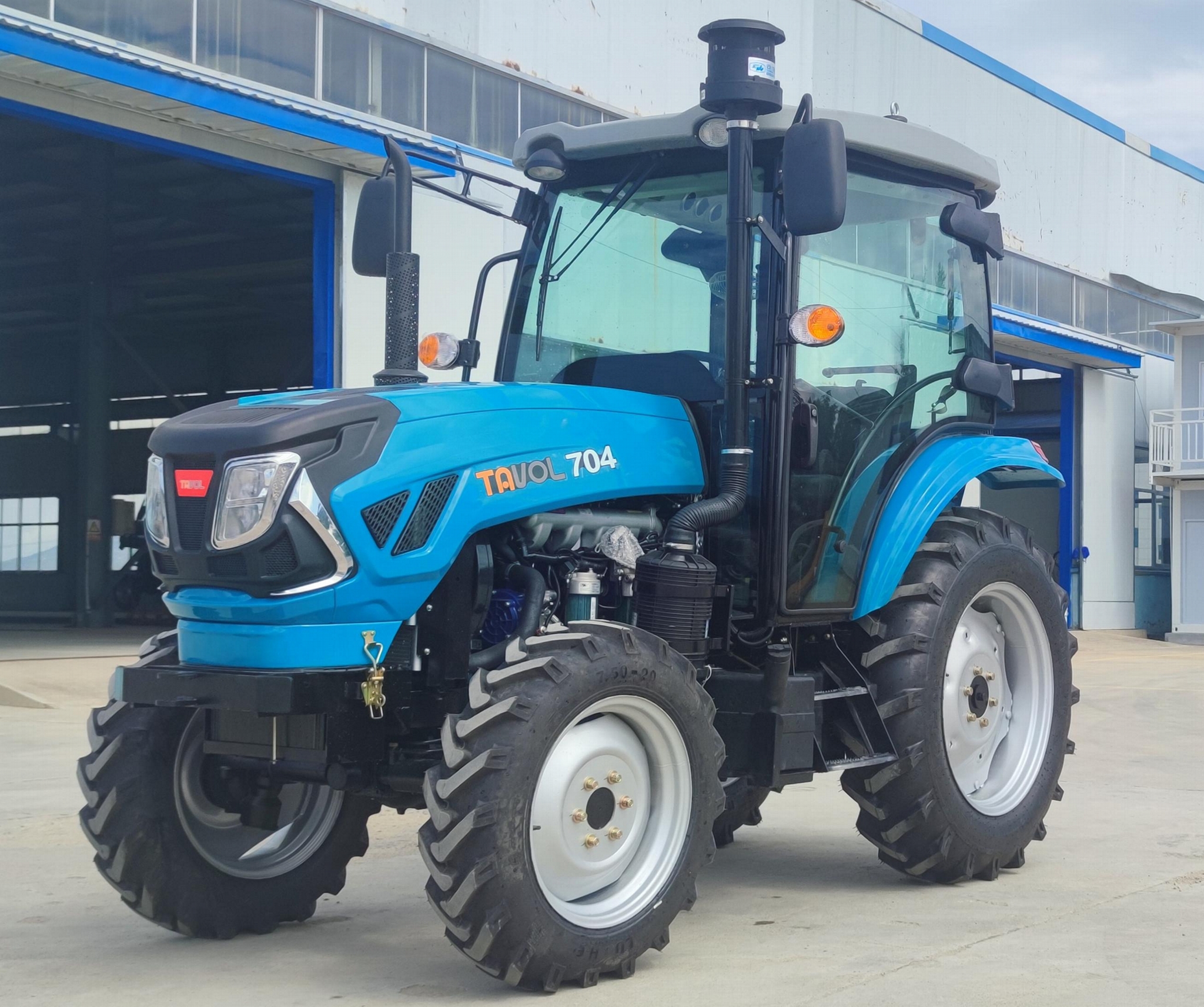

本系列拖拉机是一款多功能、大马力农用拖拉机。 该机型具有结构紧凑、操作方便、转向灵活、牵引力强、通用性强、维修方便等特点。
该系列采用TD底盘,四轮驱动,16F+8R梭式换挡变速箱,液压转向,双级离合,三点联动浮动调节。
该系列可选配防倾杆、液压多阀、加热器、空调舱
销售地域:欧洲、南美及澳洲、非洲等地区
配套机具:圆盘犁、圆盘耙、旋耕机、中耕机等耕作工具。 可选工具,如前装载机、反铲、拖车、割草机、耙子、喷洒机
Tavol series tractor(90hp to 150hp tractor) |
|||||||
Product model |
TL904 |
TL1004 |
TL1104 |
TL1204 |
TL1304 |
TL1404 |
TL1504 |
Wheel drive |
4×4 |
||||||
Dimension |
L*W*H 4530×2050×2930mm |
||||||
Weight |
3690-3840kg |
||||||
Front wheel tread |
1490,1580,1650,1740mm limited adjustable |
||||||
Rear wheel tread |
1520,1620,1740,1850mm limited adjustable |
||||||
Wheel base |
2195mm |
||||||
Min land clearence |
405mm |
||||||
Gear shifts |
16+8 |
||||||
Tire size |
standard tire:12.4-24/16.9-34, biger tire: 14.9-24/18.4-34 |
||||||
Steering gear |
Hydraulic steering |
||||||
Rear Suspension |
Three point linkage |
||||||
Engine Specification |
|||||||
Engine model |
YTO or Weichai |
||||||
Engine type |
water cooled, vertical, 4 stroke and direct injection |
||||||
Rated power(kw) |
66.1 |
73.5 |
80.88 |
88.2 |
95.5 |
102.9 |
110.2 |
Rated revolution |
2300/2400 r/min |
||||||
Start way |
Electric start |
||||||
Transmission |
4×(2+1)×2 shifts |
||||||
Clutch |
Double stage clutch, dry friction |
||||||
PTO speed |
6 splined 540/1000 |
