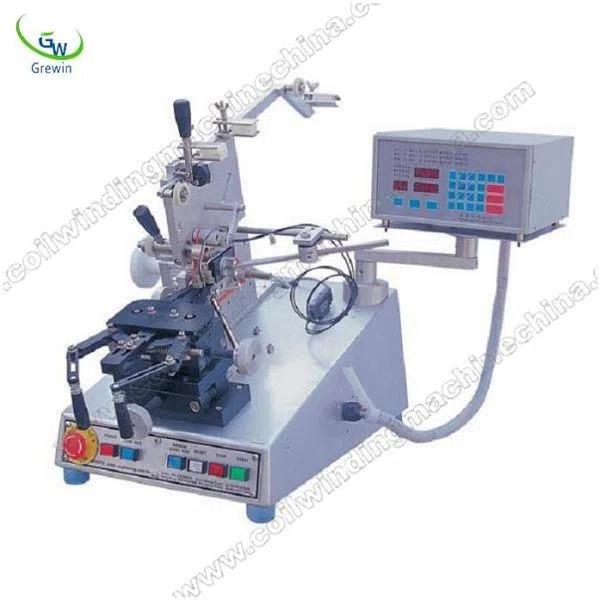

NAME:GW-9020B Digital Stepping Motor Coil Winding Machine
SPECIFICATION:
GW-9020B
Wire Size |
0.05-1.1mm |
Max Speed |
1500rpm |
Min.Finished I.D. |
3mm(will be different by shuttle size and coil height) |
O.D.Range |
8-60mm |
Winding Motor |
1/2HP DC motor |
Weight |
70kgs |
Spreading Motor |
Stepping Motor |
Dimension |
600*620*550mm |
Memory Capacity |
999 sequences |
Power source |
AC 220V/110V(50/60MHz) |
Min.wire size |
According to the machine head and shuttle size |
GW-9020B-B4 Specification
Wire Size |
0.12-0.8mm |
Max Speed |
1500rpm |
Min.Finished I.D. |
3mm |
O.D.Range |
5-60mm |
Winding Motor |
1/2HP DC motor |
Weight |
70kgs |
Spreading Motor |
Stepping Motor |
Dimension |
600*620*550mm |
Memory Capacity |
999 sequences |
Power source |
AC 220V/110V(50/60MHz) |
Shuttle Type |
2.4,2.5,2.8,3.4,4.7,6.3,7.9,9.5 |
||
Min.wire size |
According to the machine head and shuttle size |
GW-9020B-B6 Specification
Wire Size |
0.25-1.1mm |
Max Speed |
1500rpm |
Min.Finished I.D. |
6mm |
O.D.Range |
8-60mm |
Winding Motor |
1/2HP DC motor |
Weight |
70kgs |
Spreading Motor |
Stepping Motor |
Dimension |
600*620*550mm |
Memory Capacity |
999 sequences |
Power source |
AC 220V/110V(50/60MHz) |
Shuttle Type |
4.7,6.3,7.9,9.5,12.7,15.6 |
||
Min.wire size |
According to the machine head and shuttle size |
GW-9020B-B8 Specification
Wire Size |
0.3-1.2mm |
Max Speed |
1500rpm |
Min.Finished I.D. |
12mm |
O.D.Range |
40-120mm |
Range Height |
80mm |
I.D. Shuttle |
220mm |
Winding Motor |
1/2HP DC motor |
Weight |
70kgs |
Spreading Motor |
Stepping Motor |
Dimension |
600*620*550mm |
Memory Capacity |
999 sequences |
Power source |
AC 220V/110V(50/60MHz) |
Shuttle Type |
8, 10, 12, 15, 17, 20 |
||
Min.wire size |
According to the machine head and shuttle size |
FEATURES:
Digital Stepping Motor Coil Winding Machine has Hi-tech shuttle for highest efficiency.
Digital Stepping Motor Coil Winding Machine has separate speed controls for loading and winding.
Digital Stepping Motor Coil Winding Machine has accurately count length of loading by limited-switch.
Accurately count turns of winding by photo-electricity sensor
Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle
Accurately wire spacing by programmable controller
Memory capacity accommodates 999 sequences of parameters with off-power memory retention for more than one year.
Automatic wire clamp and cut system, layer winding, material unloading and cleaning of the tool during each cycle.
Optional release agent dispensing to aid removal of the coil from the tooling.
Fine programmable pitch control enabling precise layer winding.
ADVANTAGES:
One year guarantee for whole machine
We can design and develop special machine based on your request
We can train customer how to operate and repair equipment
We supply full and quickly services when you use our products.
Corrosion resistant,High tensile strength,Easy to use
Optimum performance oriented
PRODUCT:
APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
PRACTICAL APPLICATION :
TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
PACKAGING:
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
Below is the name of all listed accessories for the machine and construction diagram.
(Note:Different machines have different equiped parts)
FREQUENCY CONVERTER |
IRON COUNTER |
BIG GEAR RING |
HAND RING GEAR |
INTERFACE GEAR |
MAINSHAFT GEAR |
IMPORTED BEARING |
WIRE PULLEY |
WIRE GUIDER BASE |
GREEN SWITCH |
POTENTIOMETER |
LEFT RIGHT SWITCH |
TRANSDUCER PNP |
COUNTER WIRE |
CASE CIRCUIT BOARD |
THE BOARD OF THE CASE BACK |
CONTROLLER |
TAPE CUTTER |
BRAKE UNIT |
WIRE GUIDE WHEEL |
DISPLAY AND CONTROLLER FOR MAGAZINE ROTATION |
WIRE GUIDE HOLDER |
FOOT PADALS |
PCB BOARD FOR FOOT PADALS |
LEATHER BELT |
LEATHER PAD |
FAN |
SPRING FOR TAPE |
FACTORY:
We-GREWIN INDUSTRIAL GROUP is expert in winding machines lines for 28Years. Our Grewin have ISO9001:2015,CE approvals,Machines'Patents,"high-tech enterprises"by the government.
