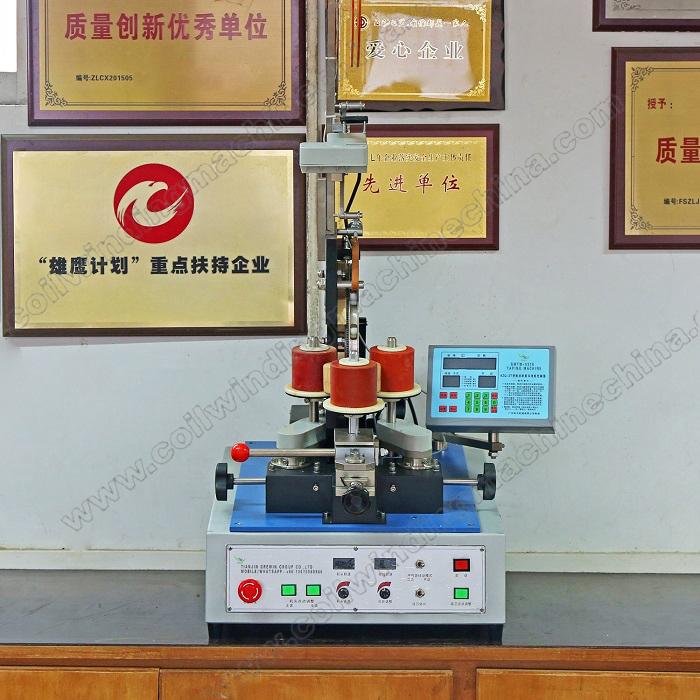

NAME:GWTM-0318 Transformer Toroidal Taping Machine

WEB: https://www.coilwindingmachinechina.com/automatic-taping-machine/gear-head-taping-machine/transformer-toroidal-taping-machine.html

SPECIFICATION

Tape width

15(8,10,12,20)

Max.winding speed

200rpm

Max.final coil.O.D

Φ60-200

Tape spacing

Proportional linkage

Min.final coil.I.D

Φ40

Supply voltage

AC 220V(50Hz)

Max.finalcoil height

100

Mechanical dimensions

550×500×1200

Controller storage capacity Programs

29 set

Weight

100kg

FEATURES:

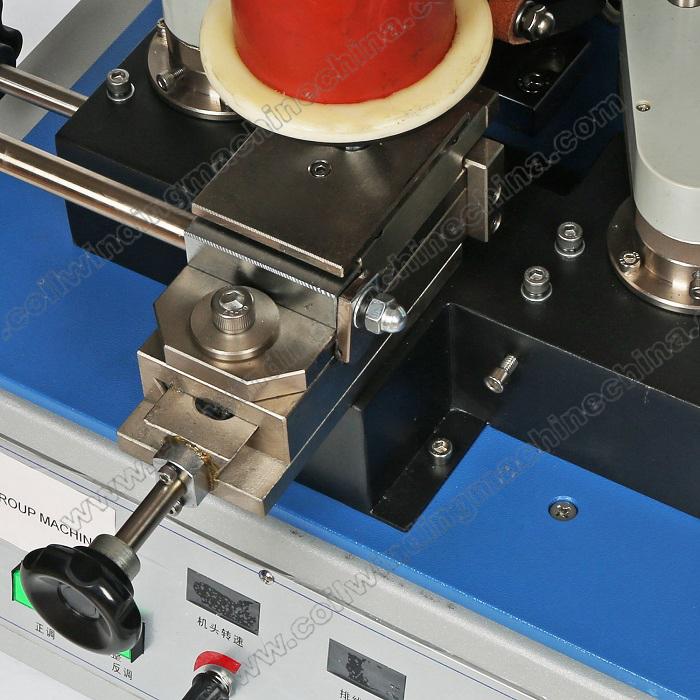

Special relay gear of Toroidal Taping Machine design for quick exchanging of pitch setting gears.

To increase the production volume, the main spindle belt is designed to be with lightly weight to reduce heat caused by motor spinning significantly.

Transformer Toroidal Taping Machine structure is strengthened to perform precise tapping and decrease the damage to screws.

Toroidal Taping Machine is easy to operate and maintain the machine.

Quality made in China.

ADVANTAGES:

High accuracy: stepper motor guarantees high accuracy

The cut surface is flat: the hot knife can heat seal the cut surface of the color ribbon and the light and thin textile belt, and the sealing is smooth and free of burrs.

The blade is made of imported high-quality steel and has a long service life.

Automatic operation: just set the length and number of cuts you need, and the rest of the work is done automatically.

Automatic pause: Once the material is used up, it will automatically stop working. Bouncer automatic alarm

Memory function: automatically store the cut length, cut quantity and cut speed before shutdown

PRODUCT:

APPLICATION:

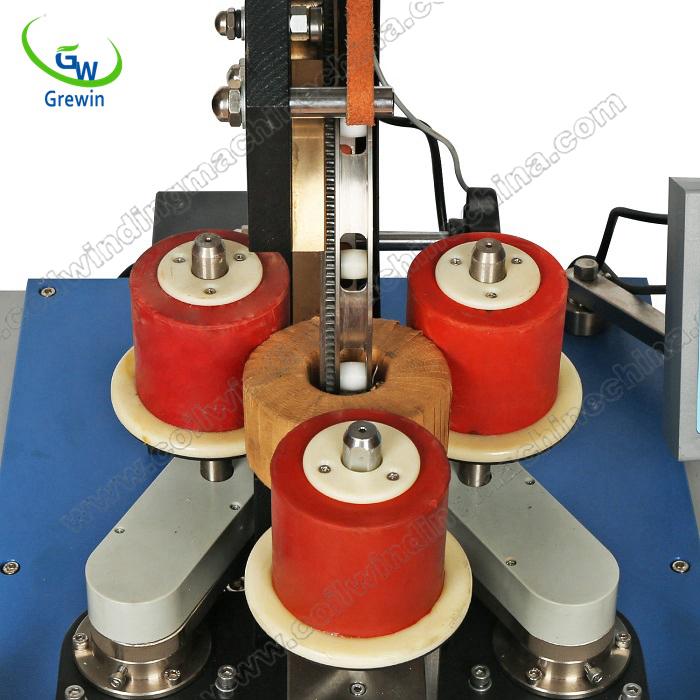

Transformer Toroidal Taping Machine for application of insulation tape to wound coils. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.

The coil is placed by an operator on a rotating spindle, and the machine automatically applies the required number of turns of insulation tape, secures the end of the tape with a wiping action, and ejects the coil from the machine.

It's an accurately and reliability digital automatic toroid-taping machine. it is used for wraping the insulation tape on the toroidal core and windings. Automatic Toroid Transformer Coil Taping Machine is designed to operate with a wide variety of insulation tapes, including Kapton, Polyester, PEN, PVC, PPS, and most other woven and non-woven types.


PRACTICAL APPLICATION :



TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.

image023(001)

PACKAGING:



Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.

image025(001)

Below is the name of all listed accessories for the machine and construction diagram.

(Note:Different machines have different equiped parts)

FREQUENCY CONVERTER

IRON COUNTER

BIG GEAR RING

HAND RING GEAR

INTERFACE GEAR

MAINSHAFT GEAR

IMPORTED BEARING

WIRE PULLEY

WIRE GUIDER BASE

GREEN SWITCH

POTENTIOMETER

LEFT RIGHT SWITCH

TRANSDUCER PNP

COUNTER WIRE

CASE CIRCUIT BOARD

THE BOARD OF THE CASE BACK

CONTROLLER

TAPE CUTTER

BRAKE UNIT

WIRE GUIDE WHEEL

DISPLAY AND CONTROLLER

FOR MAGAZINE ROTATION

WIRE GUIDE HOLDER

FOOT PADALS

PCB BOARD FOR FOOT PADALS

LEATHER BELT

LEATHER PAD

FAN

SPRING FOR TAPE

image027(001)(001)

FACTORY:



We-GREWIN INDUSTRIAL GROUP is expert in winding machines lines for 28Years. Our Grewin have ISO9001:2015,CE approvals,Machines'Patents,"high-tech enterprises"by the government.
