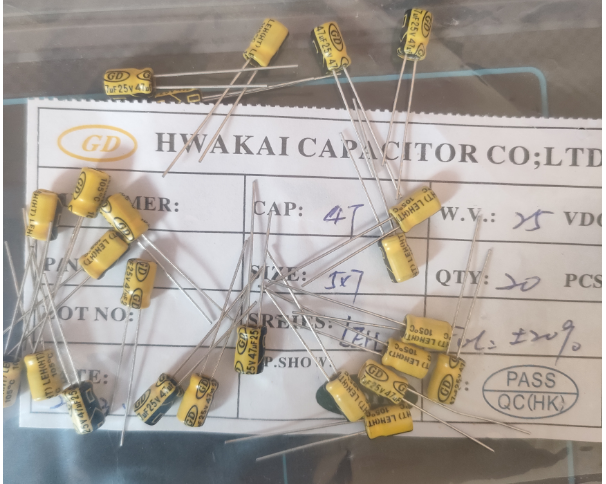

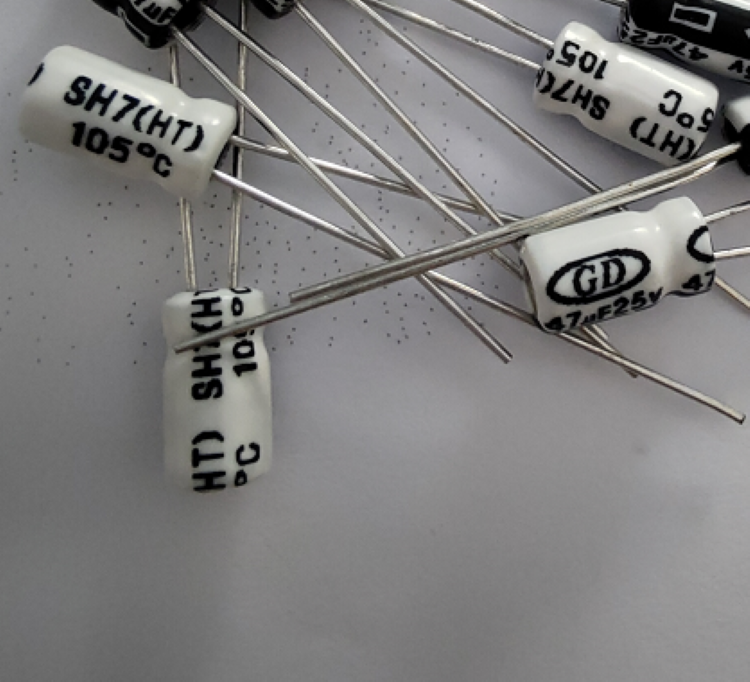

SH7 Series Miniaturized 7mm height 105℃超小型品
1. 本体之高度缩短至7m/m,适用于轻薄小型化之电子产品.
Developed short body length to 7m/m, for the demand of smaller and
thinner electronic equipment.
2. 适用于高密度电子设计,例如:OA机器、电子计算机、
汽车音响、迷你音响、摄影机、光碟机、手提电脑…等。
Most suitable for high-density electronic equipment, such as: automatic
office machines, pocket calculators, car stereos and mini-audio sets,
VCR, camera, CD-ROM, notebook, etc.
Specifications
No Item Performance
1 使用温度范围
Operating Temperature Range -40 to +1050C
2 定格电压范围
Rated Working Voltage Range 6.3-63V.DC
3 静电容量范围
Capacitance Tolerance 0.1-470µF
4 静电容量容许差
Capacitance Tolerance ±20%(at+25 0C,120Hz)
5 泄漏电流
Leakage Current After 2 minutes application of rated voltage:
I≤0.01CV or 3（μA）
6 损失角
Dissipation Factor(tanδ)
（120Hz\+25℃）
Working Voltage 6.3 10 16 25 35 50 63
tanδ max. 0.24 0.20 0.16 0.14 0.12 0.10 0.09

7 温度特性（at 120 Hz）
Characteristics at low temperature
（stability at 120Hz）
Working Voltage (V) 6.3 10 16 25 35 50 63
-25℃/+20℃ 4 3 2 2 2 2 2
-40/℃+20℃ 8 6 4 4 3 3 3

8 高温负荷特性
High Temperature Loading After 1000hrs. application of DC rated working voltage at +105℃,
The capacitor shall meet the following limits:
Post test requirements at + 25℃
Leakage current ≤ the Initial specified value
Capacitance change ≤±20% of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value

9 高温无负荷特性
Shelf Life After storage for 500hrs. at+105℃ with no voltage applied.
Post test requirements at+25℃
Same limits for high temperature lading.
