Professional Diagnostic Tool for DAF

Name: DAF VCI-560 MUX

Description:

The VCI-560 is a powerful fault diagnosis device that has been developed using the latest advanced technology. Used in combination with a PC, it provides a tool for quick and efficient analysis of vehicle faults.

The VCI-560 switches the input channel automatically to the required data line (K-line, L-line) or CAN-bus of the truckside "Diagnostic Connector".

Features:

DAVIE XDc II can diagnose, troubleshoot and program following vehicles systems:

- CAB climate system;
- Safety system;
- Security system;
- Transmission system;
- CAB climate system;
- Vehicle control system;
- Door control system;
- Instrumentation system;
- Engine system;
- Tachograph;
- Communication system;
- After treatment system;
- Break system.

VCI-560 specifications:

Dimensions (W x D x H) 126 x 214 x47 mm;
Weight 1.1 kg.

Power supply from the vehicle electrical system;
The VCI must be powered from the vehicle;
Rated voltages 8 to 32 V DC;
Current consumption in the load range Max. 1 A
If external power is interrupted, the VCI will be
buffered by the rechargeable battery;
Battery type NiMH 4,8V/1300mAh.

WiFi - optional.

Set includes:

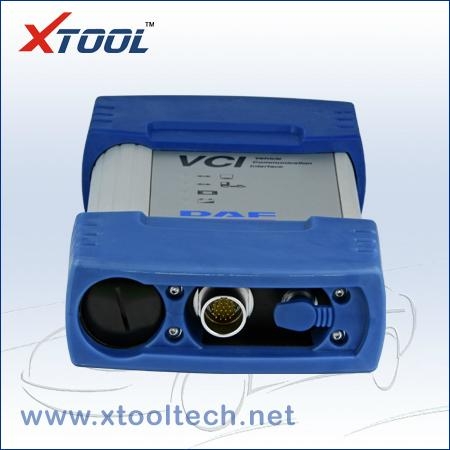

- Blue VCI (1);
- VCI-USB Cable (1);

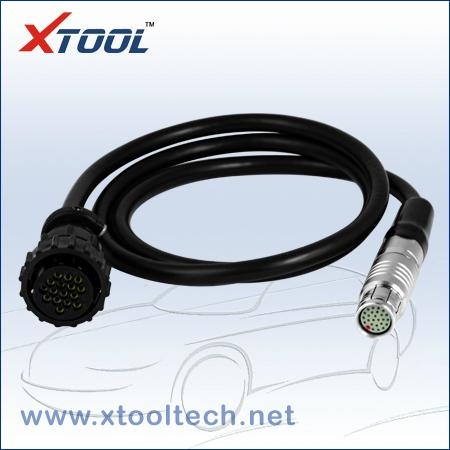

- Vehicle Diagnostic cables (ODU-AMP, AMP-OBD, ODU-USB);
- Carrying case (1).

Languages supported:

English, German, Dutch, Danish, Czech, French, Italian, Finnish, Hungarian, German, Spanish, Norwegian, Russian, Greek, Polish, Turkish.

Supported cars: DAF Trucks.
