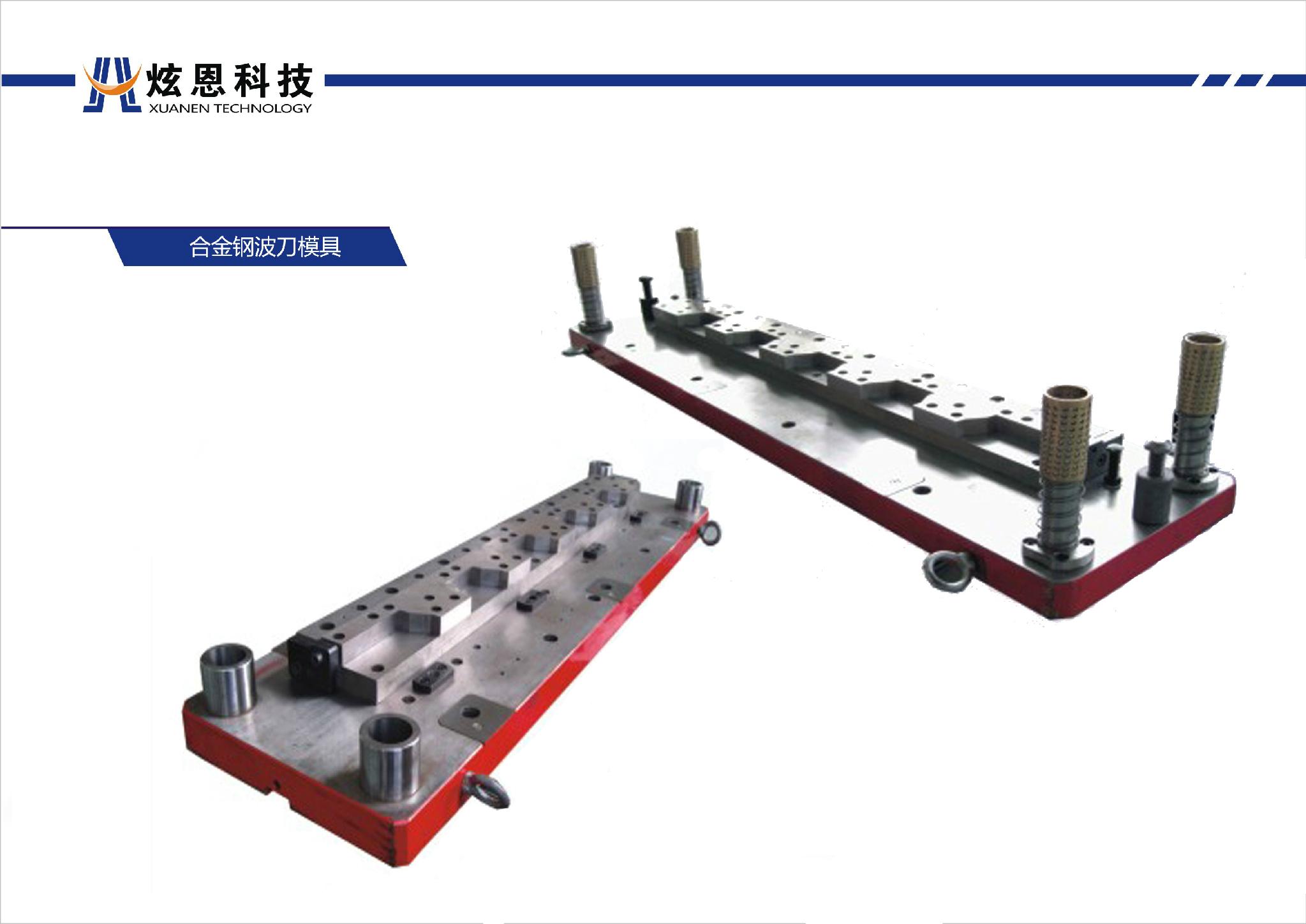

產品說明

1 日本SKD11材料，硬度達到63～67HRC，耐磨性、抗衝擊性能好，不易變形；

2 本產品採用日本進口高精度導柱導套，確保模具間隙小和關鍵零部件壽命長；

3 我公司擁有多名模具高級工程師，精心設計模具結構，確保模具在高速裁剪時的合理性和穩定性。

4 針對鋁板行業裁剪時鋁末粘刀問題，我公司模具高級工程師成功開發出一款波形裁剪模 具，解決了這一困擾鋁板質量的難題。

5 上、下模之間的刀口間隙確保在0.005~0.01mm

6 模具的沖裁最高速度每分鐘達220次。

7 單次刀模壽命達300萬次。

8 裁切產品毛刺≤0.02MM。

9最大剪切寬度1200mm。

Description of Product:

1. Japanese SKD11 material, with hardness between 63 and 67HRC, has good abrasion resistance, impact resistance and is not easily transformed.
2. The product adopts Japanese imported high precision guide pin and guide bushing, ensuring the minimum clearance of die and long lifetime of key components.
3. Our company has many senior engines who design the structure of the die elaborately, which ensures the rationality and stableness of the die while shearing at high speed.
4. To overcome the problem that aluminum powders sticks to blades in cutting, our engineers developed a type of scroll cutting die and solved the problem which interferes with the aluminum plate.
5. The clearance between upper and lower die is from 0.005 to 0.01mm.
6. The cutting frequency of the die is 220times per minute
7. The lifespan of alloy steel cutting die can reach 3 million times.
8. The burrs of cut product are lower than 0.02mm.
9. Max cutting width is 1200 mm.
