用途

Application:

用於變壓器行業的硅鋼片縱剪加工，將硅鋼片卷料裁剪成所需各種寬度的條料，再將條料收成小卷供下道工序使用，是變壓器、電機行業及其它金屬帶材精密剪切的必需設備

The machine can be applicable to split shearing of silicon sheet. The silicon coil can be sheared into various width, and coil the band material into small coil for further usage. It is a necessary device for transformer and electrical machinery industry.

構造

Construction:

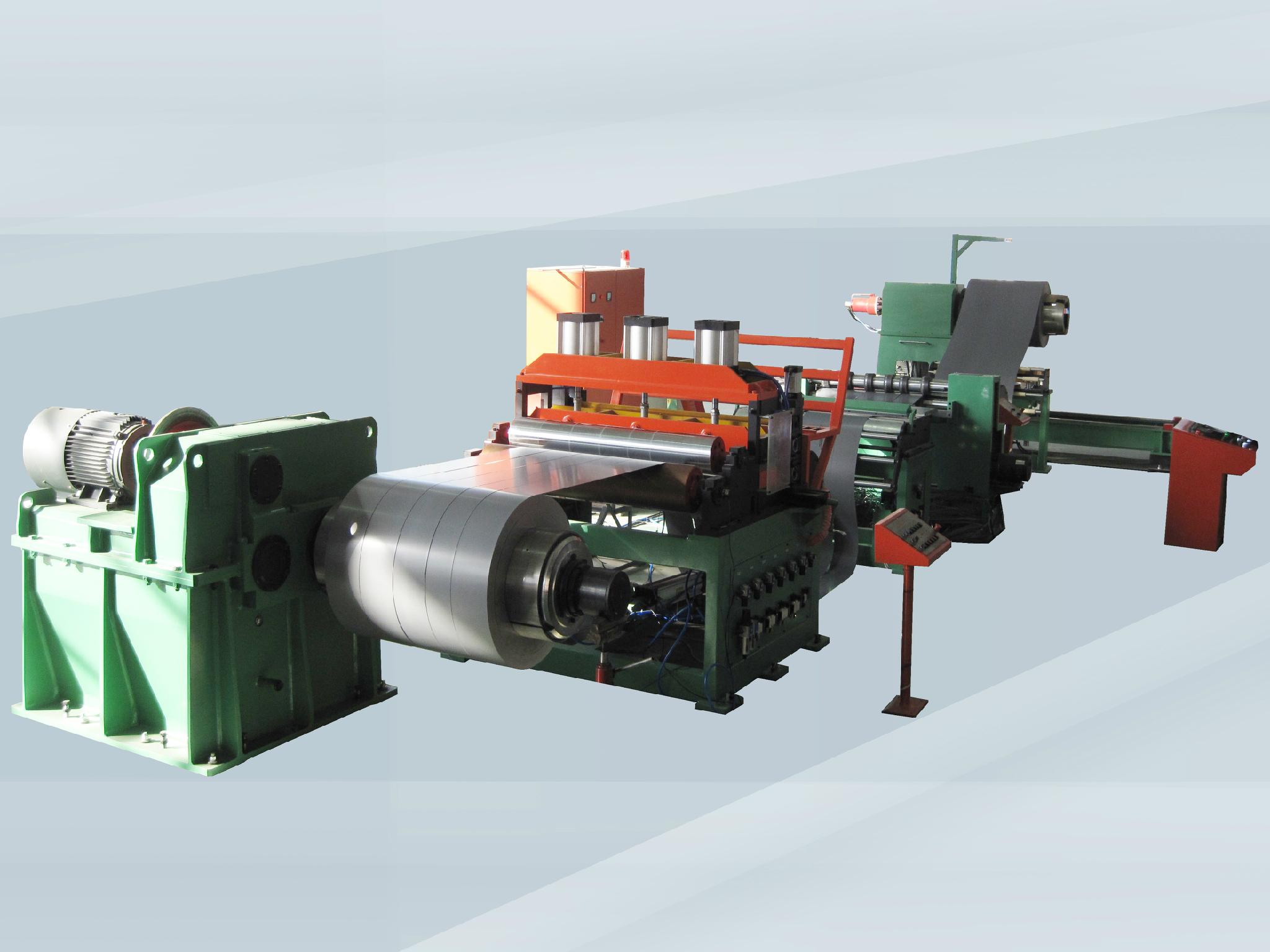

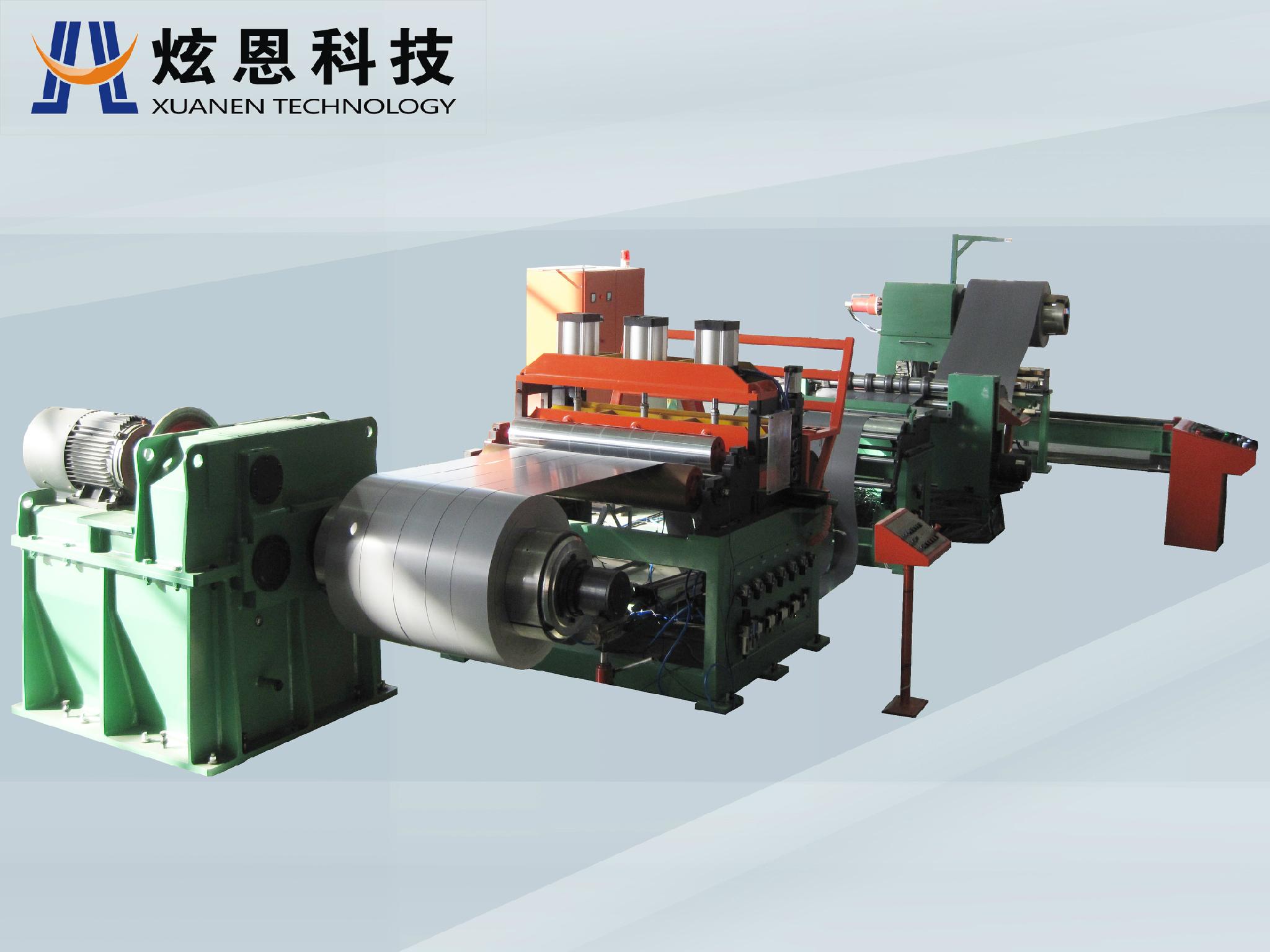

液壓開卷機、上料小車、開卷托臂、圓剪上料機構、高精度鎖緊式圓剪機、氣囊壓緊式張力機構、液壓收卷機（含機械咬頭裝置）、懸臂支撐裝置、卸料小車、液壓氣動部件及電氣控制櫃等組成。

It consists of hydraulic decoiler, charge hoist, decoiling corbel, high precision cutter, tension unit, hydraulic recoiler, cantilever supporting device, coil car，Hydraulic Pneumatic Components and electric control cabinet.

特  點

Features:

1）  開卷機可選用高速懸臂開卷機構，採用地面放卷，減少開挖地坑之苦。

2）  採用鎖緊式圓剪機，裁剪規格更換方便。

3）  採用本公司最新研發的雙刃切頭裝置，體積小，裁剪速度快。

4）  採用氣囊式壓緊，確保張力在不同厚度下保持均衡的張力。

5）  可選配卷繞式收廢料機構或切斷式收廢料機構。

6）  採用我技術團隊最新研發的水平傳動收卷機構，解決了收卷機構齒輪潤滑問題。

1. High speed decoiler with cantilever support, adopt ground recoiling reduces the heavy labor of excavating a pit.
2. Adopt round spacer cutter, also can install locked blade, It is double function cutter.
3. Newly developed double knife-edge head cutter device which with the advantages of small volume and high slitting speed.
4. Our company adopts air chamber type of compaction, make sure the balanced tension unit control system, and solve the problems of tension scratch in recoiling.
5. Scrap material receiving institute has two options, winding type or cut-off type.
6. Our technical team adopts advanced horizontal transmission to solve the problem of recoil gear lubricating.
