DXH06-FLB/4R25 DXH06-FBZS/4R100 DXH06-FBS/4R80 DXH06-FCS/4R40 DXH06-F/3DC1500 DXH06-FCS/3+MR40-760 DXH06-F/2DC48R40浪涌保護器

揚州浪涌電氣公司益雷品牌參數相同產品對照表

DXH06-FLB/4R25可以改選用YLSP-T1-25/4P/320

DXH06-FLB/3R25可以改選用YLSP-T1-25/3P/320

DXH06-FLB/2R25可以改選用YLSP-T1-25/2P/320

DXH06-FLB/3+1R25可以改選用YLSP-T1-25/3P+NPE/320

DXH06-FLB/1+1R25可以改選用YLSP-T1-25/1P+NPE/320

持續工作電壓優選320V，Iimp=25KA(10/350us)，In=25KA Up<1.8kV

DXH06-FBZS/4R100可以改選用YLSP-100/4P/420

DXH06-FBZS/3R100可以改選用YLSP-100/3P/420

DXH06-FBZS/1+1R100可以改選用YLSP-100/3P+NPE/420

持續工作電壓也可選Uc 385V，優選420V，Imax=100KA，In=60KA

DXH06-FLB/4R25 DXH06-FBZS/4R100 DXH06-FBS/4R80 DXH06-FCS/4R40 DXH06-F/3DC1500 DXH06-FCS/3+MR40-760 DXH06-F/2DC48R40浪涌保護器

DXH06-FBS/4R80可以改選用對應的型號YLSP-80/4P/420

DXH06-FBS/3R80可以改選用對應的型號YLSP-80/3P/420

DXH06-FBS/3+1R80可以改選用對應的型號YLSP-80/3P+NPE/420

持續工作電壓也可選Uc385V，優選420V，Imax=80KA ，In=40KA

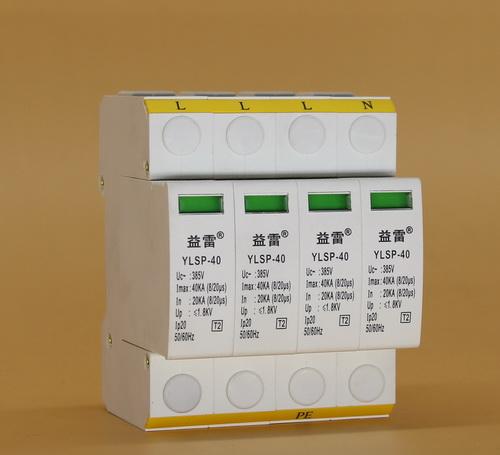

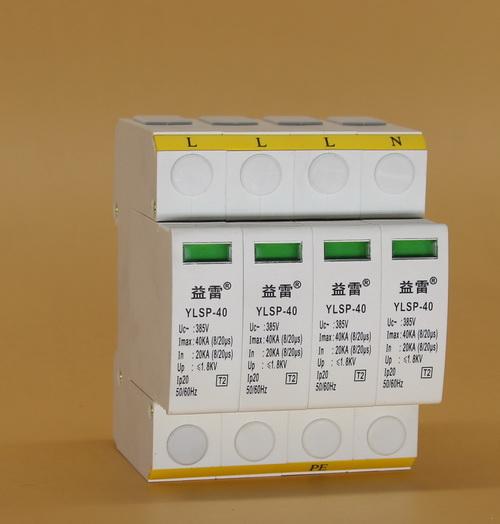

DXH06-FCS/4R40可以改選用對應的型號YLSP-40/4P/385

DXH06-FCS/3R40可以改選用對應的型號YLSP-40/3P/385

DXH06-FCS/2R40可以改選用對應的型號YLSP-40/2P/385

DXH06-FCS/3+1R40可以改選用對應的型號YLSP-40/3P+N/385

DXH06-FCS/1+1R40可以改選用對應的型號YLSP-40/1P+N/385

持續工作電壓優選385V,可帶遙信，Imax=40KA ，In=20KA

DXH06-FLB/4R25 DXH06-FBZS/4R100 DXH06-FBS/4R80 DXH06-FCS/4R40 DXH06-F/3DC1500 DXH06-FCS/3+MR40-760 DXH06-F/2DC48R40浪涌保護器

DXH06-F/3DC1500（光伏專用）可以改選用對應的型號光伏專用：YLSP-40/3P/1500VDC

持續工作電壓1500VDC，Imax=40KA ，In=20KA

DXH06-F/DC1500（光伏專用）可以改選用對應的型號光伏專用：YLSP-40/2P/1500VDC

持續工作電壓1500VDC，Imax=40KA ，In=20KA

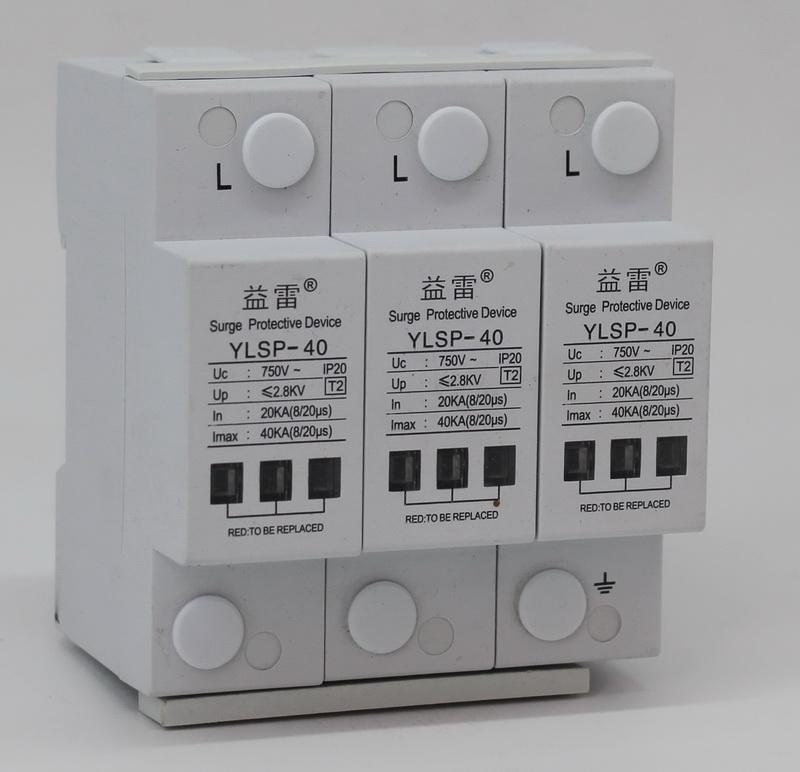

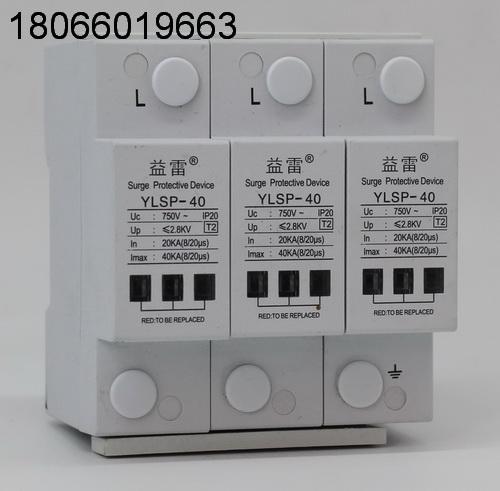

DXH06-FCS/3+MR40-760）可以改選用對應的型號光伏專用：YLSP-40/3P+1/750VAC

持續工作電壓750VAC，Imax=40KA ，In=20KA

DXH06-F/3AC690R30可以改選用對應的型號風電專用：YLSP-40/3/690VAC

持續工作電壓690VAC，Imax=40KA ，In=20KA

DXH06-F/2DC48R40可以改選用對應的型號YLSP-40/2/DC48

DXH06-F/1+1DC48R40可以改選用對應的型號YLSP-40/1+1/DC48

DXH06-F/3DC1500直流光伏防雷器 DXH06-FCS/3+MR40-760交流光伏防雷器DXH06-F/3AC690R30風電浪涌保護器 DXH06-F/2DC48R40直流浪涌 DXH06-FLB/4R25 DXH06-FBS/4R80 DXH06-FBZS/4R100 DXH06-FCS/4R40

DXH06-FLB/4R25 DXH06-FBZS/4R100 DXH06-FBS/4R80 DXH06-FCS/4R40 DXH06-F/3DC1500 DXH06-FCS/3+MR40-760 DXH06-F/2DC48R40浪涌保護器



DXH06型號浪涌保護器	揚州浪涌電氣公司益雷品牌參數相同產品對照表
DXH06-FLB/4R25 DXH06-FLB/3R25 DXH06-FLB/3+1R25 Uc 350V Iimp=25KA(10/350us) In=25KA	對應型號 YLSP-T1-25/4P/320 YLSP-T1-25/3P/320 YLSP-T1-25/2P/320 YLSP-T1-25/3P+NPE/320 YLSP-T1-25/1P+NPE/320 持續工作電壓也可選Uc 385V，優選320V， Iimp=25KA(10/350us)，In=25KA Up<2000V
DXH06-FBZS/4R100 DXH06-FBZS/3R100 DXH06-FBZS/2R100 DXH06-FBZS/3+1R100 DXH06-FBZS/1+1R100 Imax=100KA，In=40KA, Uc385V	對應型號 YLSP-100/4P/420 YLSP-100/3P/420 YLSP-100/3P+NPE/420 持續工作電壓也可選Uc385V，優選420V， Imax =100 KA ，In=60KA
DXH06-FBS/4R80 DXH06-FBS/3R80 DXH06-FBS/2R80 DXH06-FBS/3+1R80 DXH06-FBS/1+1R80 Imax=80KA，In=40KA, Uc385V	對應型號 YLSP-80/4P/420 YLSP-80/3P/420 YLSP-80/3P+NPE/420 持續工作電壓也可選Uc385V，優選420V， Imax=80KA ，In=40KA
DXH06-FCS/4R40 DXH06-FCS/3R40 DXH06-FCS/2R40 DXH06-FCS/3+1R40 DXH06-FCS/1+1R40 持續工作電壓385V,Imax=40KA，In=20KA	對應型號 YLSP-40/4P/385 YLSP-40/3P/385 YLSP-40/2P/385 YLSP-40/3P+NPE/385 YLSP-40/1P+NPE/385 持續工作電壓也可選440V、385V、320V和275V，優選385V,可帶遙信 Imax =40 KA ，In=20KA
DXH06-F/3DC1500（光伏專用）	對應型號 光伏專用：YLSP-40/3P/1500VDC 光伏專用：YLSP-40/3P/1500VDC-R帶遙信 持續工作電壓1500VDC，Imax=40KA，In=20KA
DXH06-F/DC1500（光伏專用）	對應型號 光伏專用：YLSP-40/2P/1500VDC 光伏專用：YLSP-40/2P/1500VDC-R帶遙信 持續工作電壓1500VDC，Imax=40KA，In=20KA
DXH06-FCS/3+MR40-760	對應型號 光伏專用：YLSP-40/3+1/750VAC
DXH06-F/3AC690R30	對應型號 風電專用：YLSP-40/3/690VAC
DXH06-F/2DC48R40 DXH06-F/1+1DC48R40	對應型號 YLSP-40/2/DC48 YLSP-40/1+1/DC48
