廠家直供單面鋁箔麥拉帶鋁箔鋁鉑鋁塑帶鋁塑復合帶規格多樣可定製
| 型號： | - |
|---|---|
| 品牌： | - |
| 原產地： | 中國 |
| 類別： | 電子、電力 / 絕緣材料 |
| 標籤︰ | 鋁箔麥拉 , 鋁鉑 , 鋁箔 |
| 單價： |
¥26
/ 公斤
|
| 最少訂量： | 100 公斤 |
產品描述

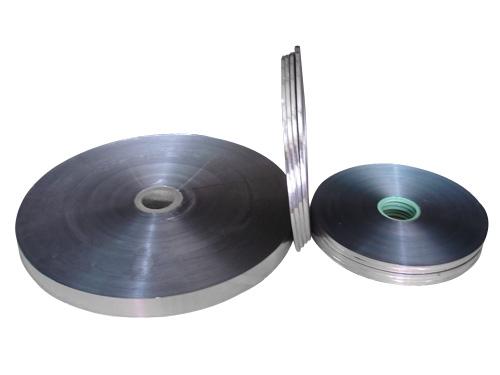

單面鋁箔麥拉帶
Single-side aluminum foil mylar tape
特性與用途 FEATURES AND APPLICATIONS
單面鋁箔麥拉帶由鋁箔與聚酯薄膜復合而成。作為多導體控制線材的干擾屏蔽,鋁箔麥拉帶已廣氾用於通信電纜、數據電纜、光纜、信號電纜、控制電纜等領域。
Single-side aluminum foil mylar tape is composed of aluminum foil and polyester film. As interference shielding of multi-conductor control wires, aluminum foil mylar tape has been widely used in communication cables, data cables, optical cables, signal cables, control cables and other fields.
技術指標TECHNICAL SPECIFICATION
|
Thickness (mm) |
Compositions |
Basis weight (g/m2) |
(m2/kg) |
Elongation (%) |
Tensile strength (Mpa) |
|
|
0.020±10% |
AL7+PET12 |
38±10% |
25.8 |
30↑ |
60↑ |
|
|
0.025±10% |
AL7+PET15 |
42±10% |
23.3 |
30↑ |
60↑ |
|
|
0.030±10% |
AL9+PET19 |
52±10% |
19.0 |
30↑ |
60↑ |
|
|
0.035±10% |
AL9+PET23 |
59±10% |
16.8 |
30↑ |
60↑ |
|
|
0.040±10% |
AL12+PET25 |
70±10% |
14.2 |
30↑ |
60↑ |
|
|
0.050±10% |
AL15+PET30 |
85±10% |
11.7 |
30↑ |
60↑ |
|
|
0.050±10% |
AL20+PET25 |
92±10% |
10.9 |
30↑ |
60↑ |
|
|
0.060±10% |
AL25+PET30 |
112±10% |
8.9 |
30↑ |
60↑ |
|
|
0.040±10% |
AL25+PET12 |
87±10% |
11.5 |
10↑ |
60↑ |
|
|
0.055±10% |
AL40+PET12 |
127±10% |
7.8 |
10↑ |
60↑ |
|
|
0.070±10% |
AL45+PET23 |
156±10% |
6.4 |
10↑ |
60↑ |
|
|
0.070±10% |
AL50+PET15 |
159±10% |
6.3 |
10↑ |
60↑ |
|
|
注：寬度從2mm起按客戶要求生產 NOTE：widths are available from 2mm and can be customized according to customer is requirement
|
||||||
顔色：自然色(銀色)，藍色，紅色，銅色，金色，粉色，綠色等
Colors: natural color (silver), blue, red, copper, gold, pink, green and so on.
