廠家直供高溫分色帶電纜分色帶低溫分色帶規格多樣可定製

型號：	-
品牌：	-
原產地：	中國
類別：	電子、電力 / 絕緣材料
標籤︰	分色帶 , 高溫分色帶
單價：	¥15 / kg
最少訂量：	100 kg

發送查詢

產品描述

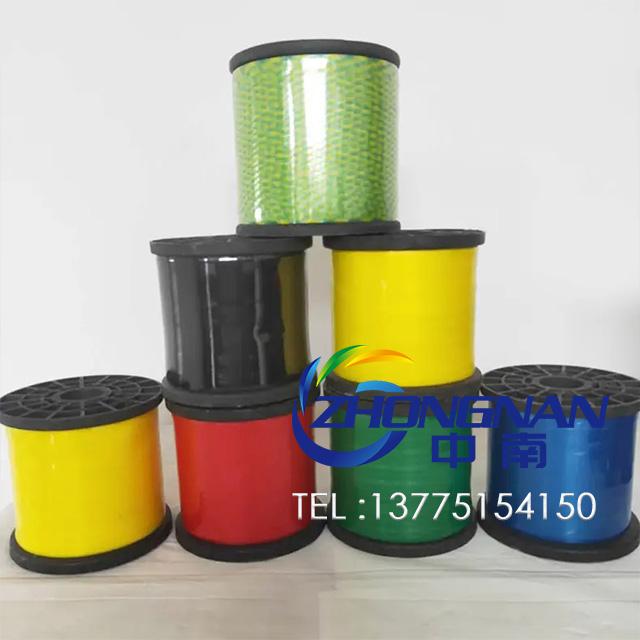

電纜分色帶Cable Color Distingulshing Ribbons

本產品分為高溫分色帶(PET材料)及低溫分色帶（PE材質）兩種，前者做電力電纜、交聯電纜等分色用，後者做通訊電纜、光纜電纜分色用。取代絕緣或護套中的色母粒，節約大量成本。可承受瞬間耐溫230度，在擠護套時直接隨着螺杆擠出，通過硫化管，並且顏色不褪色。

These ribbons are divided into two categories,high temperature color distinguishing ribbons(PET material) and low temperature color distinguishing ribbons(PE material).The former is used for cloor distinguishing in power cable and silane cross-linked polyethylene insulated cable,and the latter for color distinguishing in telecommunication cable and high volage cross-linked polyethylene insulated cable.we provide high temperature color distinguishing ribbons with plastic bobbin core and low. Replace masterbatch in insulation or sheath, save a lot of cost. Can withstand instantaneous temperature of 230 degrees, in the extrusion sheath directly with the screw extrusion, through the vulcanized pipe, and the color does not fade.

高溫分色帶

HIGH TEMPERATURE COLOR DISTINGUISHING RIBBON

寬度With (mm)	厚度 Thickness (mm)	耐溫 Temperature resistant()	拉伸強度 MPA	理論長度 Theoreticallength	熱收縮率 (150℃,30min)	常用顏色 Colors
2.0±0.5	0.03±0.01	220-250	≥150	7000±5%	≤3.5	紅黃藍綠黑 Red,yellow,blue,green,black
3.0±0.5	0.03±0.01	220-250		5000±5%
4.5±0.5	0.03±0.01	220-250		3500±5%
7.0±0.5	0.03±0.01	220-250		2500±5%

低溫分色帶

HIGH TEMPERATURE COLOR DISTINGUISHING RIBBON

寬度With (mm)	厚度 Thickness (mm)	耐溫 Temperature resistant()	拉伸強度 MPA	理論長度 Theoreticallength	熱收縮率 (150℃,30min)	常用顏色 Colors
2.0±0.5	0.03±0.01	220-250	≥150	7000±5%	≤3.5	紅黃藍綠黑 Red,yellow,blue,green,black
3.0±0.5	0.03±0.01	220-250		5000±5%
4.5±0.5	0.03±0.01	220-250		3500±5%
7.0±0.5	0.03±0.01	220-250		2500±5%
