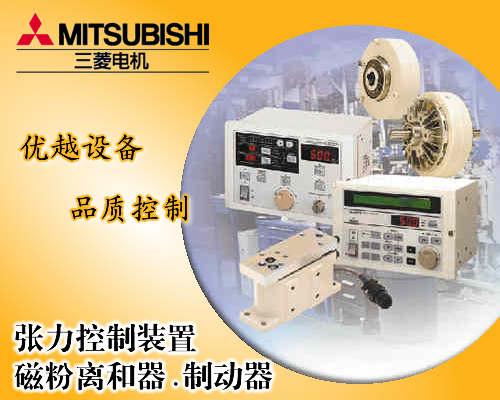

三菱磁粉離合器/制動器

型號：	-
品牌：	三菱
原產地：	-
類別：	電子、電力 / 電氣控制系統
標籤︰	三菱 , 磁粉離合器 , 張力控制器
單價：	-
最少訂量：	1 件

發送查詢

產品描述

Specifications

ZKB-XN Magnetic Powder Brake
Non-contaminated and no noise
Apply in tensile force controlling
No concussion and save energy

MITSUBISHI ZKB-XN Magnetic Powder Brake

Rated torque: 12 to 400 (N · m)

Natural cooling / compulsory extended shaft type

1.15 r / min from available

2.through the compressed air is blown into the voids in the heat to improve the thermal capacity.

Specifications

Model	Rated torque (N·m)	Coil(75°C)			InertiamomentJ (kgm²)	Wind pressure(Pa)	Air volume (m²/min)	Power (W)	Weight(kg)	Max. allowable speed (m/min)	Magnetic particle weight(g)
Model	Rated torque (N·m)	Current (A)	Power (W)	Time constant(s)	InertiamomentJ (kgm²)	Wind pressure(Pa)	Air volume (m²/min)	Power (W)	Weight(kg)	Max. allowable speed (m/min)	Magnetic particle weight(g)
ZKB-1.2XN	12	0.94	22.5	0.10	1.34×10^(-3)	3×10^(4)	0.2	250	5..2	1,800	20
ZKB-2.5XN	20	1.24	30.0	0.12	3.80×10^(-3)	5×10^(4)	0.4	380	9	1,800	33
ZKB-5XN	50	2.15	51.5	0.13	9.50×10^(-3)	1×10^(5)	0.6	700	14.5	1,800	60
ZKB-10XN	100	2.40	57.6	0.25	3.50×10^(-2)	6×10^(4)	1.1	1100	34	1,800	140
ZKB-20XN	200	2.70	64.8	0.37	9.15×10^(-2)	5×10^(4)	1.6	1900	53	1,800	225
ZKB-40XN	400	3..50	84.0	0.40	2.40×10^(-1)	2×10^(5)	2.0	2800	100	1,800	370

Application

Printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire machinery,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, test equipment, analog load use, the kinds of mechanical precision tension controlling,general industrial equipment, other general industrial machinery.
