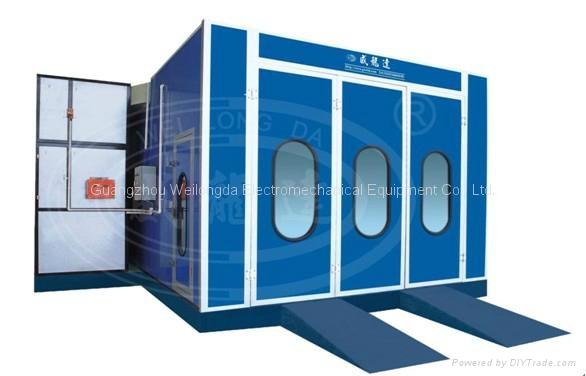

Cabin System |
Wallboard |
EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Galvanized Steel Roof Panel, Tongue & Groove Style, Compound Construction, Anti-flame and Heat-Insulation |
Basement |
Galvanized Steel Sheet Construction, Two Rows Grid with floor filter& Three Embossed Plate, Two Ramps |
Air Circulation System |
Inlet Fan |
Volume: 12000m3/h |
Power: 4kw |
Quantity: 2 sets |
Outlet Fan |
Volume: 18000m3/h |
Power: 5.5kw |
Quantity: 1 sets |
Air Volume: 24000m 3 /h; Air Speed: 0.3-0.5m/s |
Air Purification System |
Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. |
Heating System |
Burner |
Italy Riello Brand, G20 Diesel Burner, 200000Kcal/h, The Heating Time 5-7min |
Heat Energy Converter |
Stainless Steel, Argon Arc Welding. The Heat Exchange Rate 85% |
Max Temp:80ºC, Fuel Consumption: 4-5kg/vehicle, BELIMO Electric Damp |
Light System |
Ceiling Light: 24 pcs 40w Lamp; 800 Lux |
