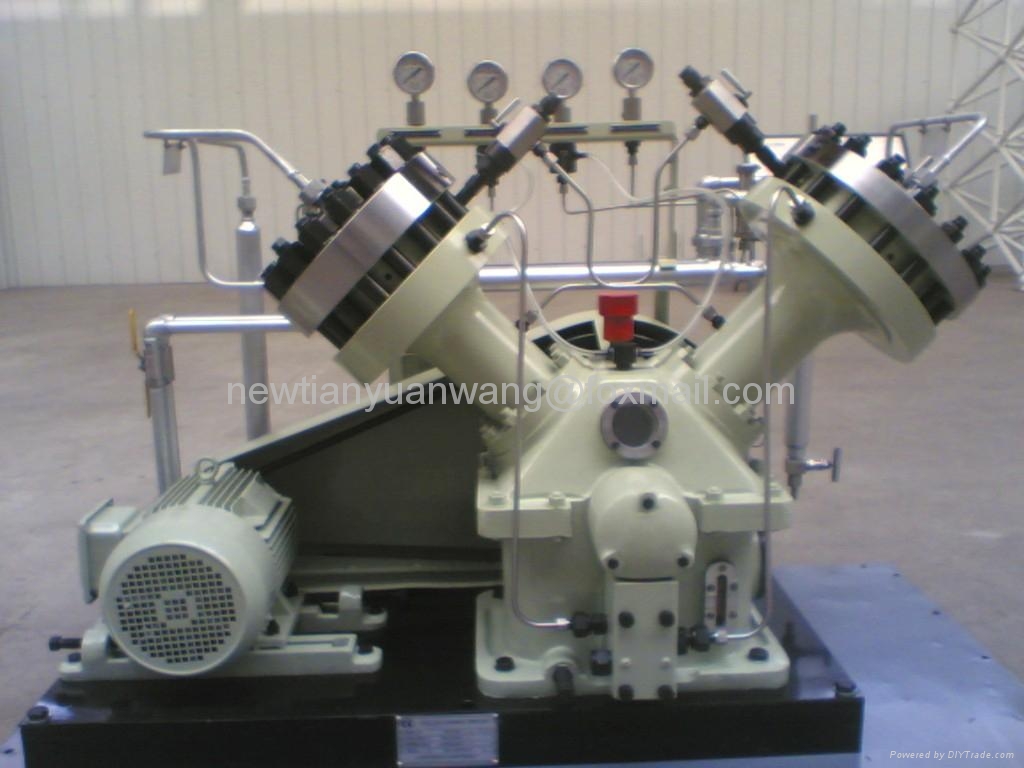

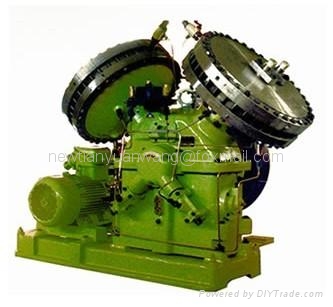

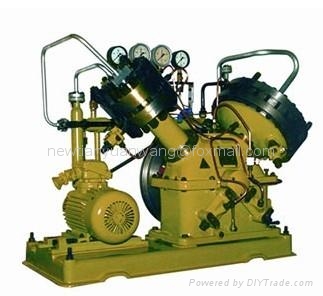

Model No.: GMV3-60/6-200
Type:           V Type, 2 stage compression, single cylinder, hydraulic, double action, water cooling
Media:        Gas
Inlet pressure:                   0.6Mpa
Inlet temperature:             ≤35℃
Capacity:                            60Nm3/hour
Discharge pressure(G): 20MPa
Shaft power:                      16KW
Rotating speed:                400r/min
Driving mode:                    Triangle rubber belt
Cooling mode:                  Water cooling
Cooling water consumption:   900Kg/h
Lub. Mode:                         Cylinder, packing oil free, Connecting rod, crankshaft lubricated by oil pump
Lub. Pressure:                  0.1～0.35 MPa
Lub.temp.(in oil pan）     ≤65℃
Vibration severity:              28.0mm/s
Noise（acoustic power level）： 104 dB(A)
Overall size（L×W×H）:                  1960×1100×1650mm
Main machine weight:                       500Kg

Electric Motor:
Model No.                                            YB180M (to be varied when designing by vendor)
Rated power:                                      22KW
Rotating speed:                                 400r/min
Voltage:                                               380V
Frequency:                                          50HZ
Explosion-proof grade:                     dΠBT4
Protection grade:                               IP55
Weight:                                                166kg
