氦氣隔膜壓縮機
| 型號： | GL-50/0.2-260 |
|---|---|
| 品牌： | NTYT |
| 原產地： | 中國 |
| 類別： | 工業設備 / 通用機械 / 壓縮設備 |
| 標籤︰ | 氦氣壓縮機 , 氦隔膜壓縮機 , 氦氣增壓機 |
| 單價： |
-
|
| 最少訂量： | 1 件 |
產品描述
|
Main Parameters Of Compressor
|
GL-50/0.2-260 Diaphragm Helium Compressor
|
|
Model No.
|
GL-50/0.2-260
|
|
Type
|

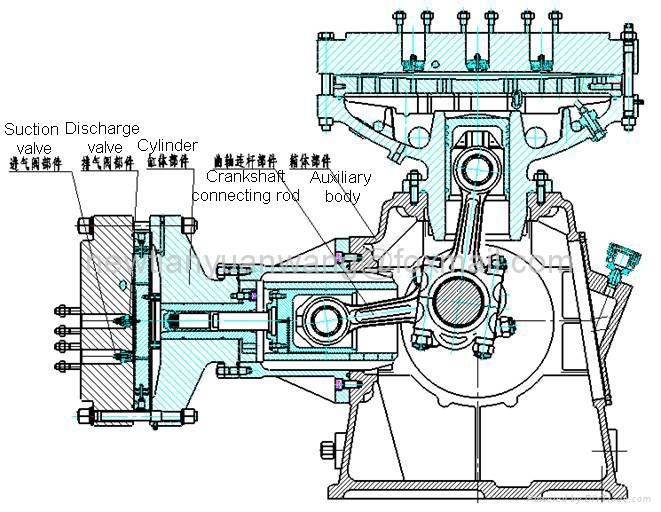

L Type, 2 cylinders, 2-stage compression, water cooling diaphragm compressor
|
|
Rated flow rate
|
50Nm³/hour
|
|
Suction pressure(G)
|
0.2 bar
|
|
Rated outlet pressure(G)
|
260 bars
|
|
Suction temperature(℃)
|
≤40
|
|
Discharge temperature(℃)
|
≤cooling water temp +10℃
|
|
Compressed medium
|
Helium
|
|
Cooling mode
|
Water cooling
|
|
Consumption of cooling water
|
3 tons per hour
|
|
Lubricating mode
|
Crackshaft, connecting rod, cross-head body:Lubricated by oil pump; Cylinder, packing assembly: Less oil lubrication
|
|
Oil consumption
|
≤85 g/h
|
|
Lubrication oil brand
|
L-HM32antiabrade oil （self provide by client）
|
|
Driving mode
|
Electric motor, model No. YB225S-4, power at 37KW
|
|
Transmission mode
|
Through belt
|
|
Rotation speed
|
400rpm
|
|
Main Parameters Of Electric Motor
|
|
|
Model No.
|
YB225S-4
|
|
Type
|
Three-phase asynchronous explosion-proof motor
|
|
Rated power
|
37KW
|
|
Voltage
|
380V
|
|
Frequency
|
50Hz
|
|
Explosion-proof grade
|
dⅡCT4
|
|
Parameters Of Compressor Unit
|
|
|
Outer dimension (LxWxH in mm)
|
Approximately 700×1750×2000
|
|
Overall weight (kg)
|
Approximately 5200
|
|
Package
|
Exportable seaworthy polywood case
|
