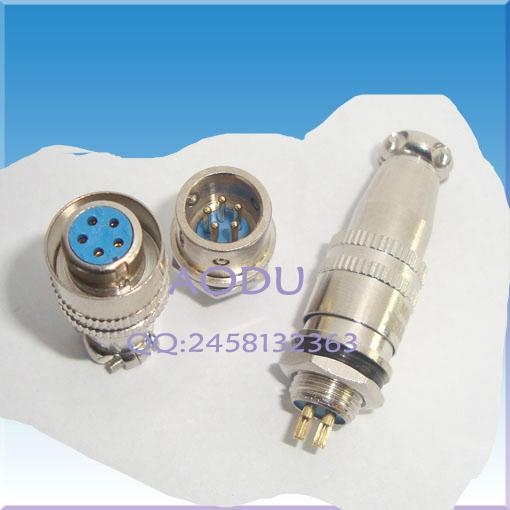

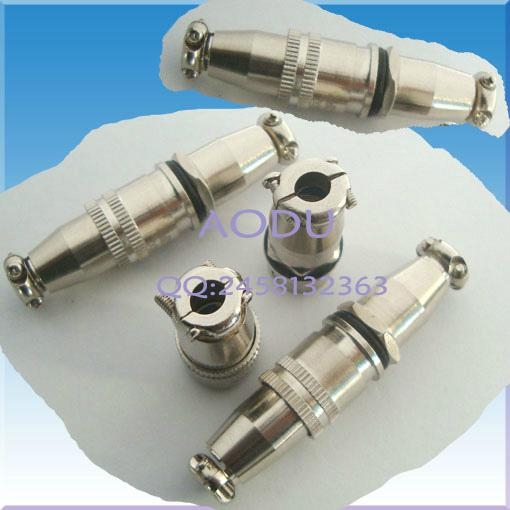

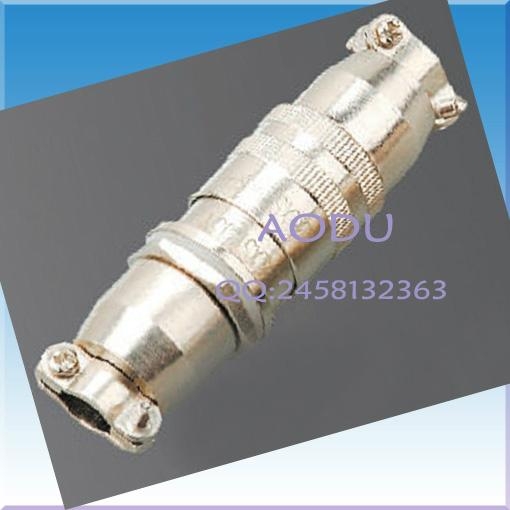

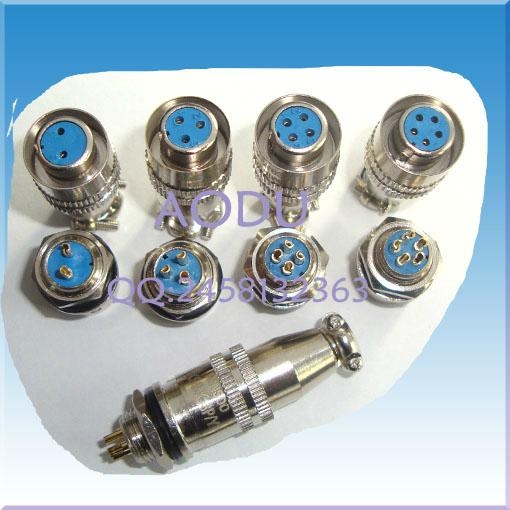

型號: | XS8 9 10 12 |
---|---|
品牌: | AODU |
原產地: | 中國 |
類別: | 電子、電力 / 電子元器件 / 端子、連接器 |
標籤︰ | 航空插頭 , 推拉自鎖 , 電纜連接器 |
單價: |
¥5.8
/ 件
|
最少訂量: | 200 件 |
環境溫度: -55~+ 85 ℃
相對濕度:溫度為 + 40 ℃ 時達 93%
絕緣電阻 : 大於等於 1000M Ω
試驗電壓 :1000V
額定電流 A : 3A
額定電壓 :250V
振動;振頻 0~500HZ ,加速度達 100 m /s 2
碰撞 : 加速度達 250 m /s 2
機械壽命 :500 次
接觸對數:2芯 3芯 4芯 5芯
XS8:2芯3芯4芯
XS9:2芯3芯4芯5芯
XS10:2芯3芯4芯5芯
XS12:2芯3芯4芯5芯6芯7芯8芯
XS16:2芯3芯4芯5芯6芯7芯9芯
XS24:12芯19芯26芯
X系列XS16型 :XS16K2P+XS16J2A,XS16K2P+XS16J2Y,XS16K3P+XS16J3A,XS16K3P+XS16J3Y,XS16K4P+XS16J4A,
XS16K4P+XS16J4Y,XS16K5P+XS16J5A,XS16K5P+XS16J5Y,XS16K7P+XS16J7A,XS16K7P+XS16J7Y,XS16K9P+XS16J9A,
XS16K9P+XS16J9Y
X系列XS12型 :XS12K2P,XS12J2Y,XS12J2A,XS12K3P,XS12J3Y,XS12J3A,XS12K4P,XS12J4Y,XS12J4A,XS12K5P,XS12J5Y,XS12J5A,
XS12K6P,XS12J6Y,XS12J6A,XS12K3A,XS12K3Y,XS12K4A,XS12K4Y,XS12K5A,XS12K5Y,XS12K7A,XS12K7Y,XS12K3P,XS12K3P,
XS12K3T,XS12K4P,XS12K3T,XS12K5P,XS12K5T,XS12K7P,XS12K7T,XS12J3P,XS12J3T,XS12J4P,XS12J3T,XS12J5P,XS12J5T,XS12J7P,
XS12J7T,XS12J3A,XS12J3Y,XS12J4A,XS12J4Y,XS12J5A,XS12J5Y,XS12J7A,XS12J7Y
X系列XS10型 :XS10K2P,XS10J2Y,XS10K2P,XS10J2A,XS10K3P,XS10J3Y,XS10K3P,XS10J3A,XS10K4P,XS10J4Y,XS10K4P,XS10J4A,
XS10K5P,XS10J5Y,XS10K5P,XS10J5A
X系列XS9型 :XS9K2P,XS9J2Y,XS9J2A,XS9K3P,XS9J3Y,XS9J3A,XS9K4P,XS9J4Y,XS9J3A,XS9K5P,XS9J5Y,XS9J3A,XS9K6P,XS9J6Y,XS9J3A
X系列XS8型 :XS8K2P,XS8J2Y,XS8J2A,XS8K3P,XS8J3Y,XS8J3A,XS8K4P,XS8J4Y,XS8J4A,
