1J系列連接器能夠供應2芯、3芯、4芯、5芯、6芯、7芯 6種規格產品。
2J系列對接/面板連接器，含有7芯、10芯、12芯三種規格。

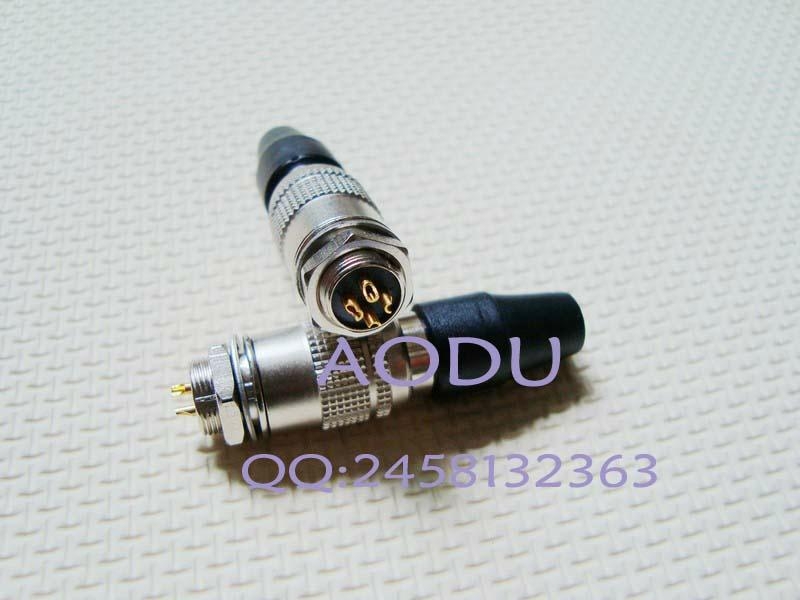

3J系列的面板安裝連接器有4芯 6芯 兩種規格

方便快捷的推拉自鎖功能，廣氾應用於各種設備。

應用於包括航空、航海、計算機、儀器儀表，CCD工業照相機等設備。

歡迎廣大客戶前來咨詢訂購，單只也可購買。

聯繫人：李先生

QQ：2458132363

主要用於計算機及外圍設備、醫療設備、音頻、視頻、無線電、測量設備等

HRS|HRS廣瀨連接器|HRS接線端子HR10A-7P-12PA

本公司專業代理HRS|HRS連接器|日本廣瀨連接器|HRS接線端子常用型號備有庫存,特價銷售,交期短
HR10A-7P-4S HR10A-7P-4P HR10A-7J-4S HR10A-7J-4P HR10A-7R-4S HR10A-7R-4P HR10A-7R-4SB HR10A-7R-4PB HR10A-7P-6S HR10A-7P-6P HR10A-7J-6S HR10A-7J-6P HR10A-7R-6S HR10A-7R-6P HR10A-7R-6SB HR10A-7R-6PB HR10A-7P-7S HR10A-7P-7P HR10A-7J-7S HR10A-7J-7P HR10A-7R-7S HR10A-7R-7P HR10A-7R-7SB HR10A-7R-7PB HR10A-10P-7S HR10A-10P-7P HR10A-10J-7S HR10A-10J-7P HR10A-10R-7S HR10A-10R-7P HR10A-10R-7SB HR10A-10R-7PB HR10A-10P-10S HR10A-10P-10P HR10A-10LP-10S HR10A-10LP-10P HR10A-10J-10S HR10A-10J-10P HR10A-10R-10S HR10A-10R-10P HR10A-10R-10SB HR10A-10R-10PB HR10A-10P-12S HR10A-10P-12P HR10A-10LP-12S HR10A-10LP-12P HR10A-10J-12S HR10A-10J-12P HR10A-10R-12S HR10A-10R-12P HR10A-10R-12SB HR10A-10R-12PB HR25-9TP-16S HR25-9TP-16P HR25-9TJ-16S HR25-9PJ-16P

Characteristic
 Specifications

No. of Positions
 7， 10, 12

Current Rating(Amps)(Max.)
 2

Shell Size (dia)
 7, 10, 13

PCB Mount Type
 Through-hole

Contact Mating Area Plating
 Tin, Gold, Silver

Operating Temperature Range (degrees C)
 -25, -10 to 60, 85

Applicable Cable
 0.8D-QEW.CW, Cable outer dia.Φ3, Solder cup inside dia.Φ0.8, Conductor AWG#26 max., Cable outer dia.Φ5, Conductor AWG#26 to #30, Cable outer dia.Φ5, Solder cup inside dia.Φ0.8, Conductor AWG#26 max., Cable outer dia.Φ6, Conductor AWG#26 to #30, Cable outer dia.Φ6, Solder cup inside dia.Φ0.8, Conductor AWG#26 max., Cable outer dia.Φ6.2, Solder cup inside dia.Φ0.8, Conductor AWG#26 max., Cable outer dia.Φ6.4, Solder cup inside dia.Φ0.8, Conductor AWG#26 max., Cable outer dia.Φ7, Conductor AWG#26 to #30, Cable outer dia.Φ7, Solder cup inside dia.Φ0.8, Conductor AWG#26 max., Cable outer dia.Φ8.3, Solder cup inside dia.Φ0.8, Conductor AWG#26 max., Cable outer dia.Φ9, Solder cup inside dia.Φ0.8, Conductor AWG#26 max., Cable outer dia.Φ9.5, Conductor AWG#26 to #30, Conductor AWG#26 to #30, Solder cup inside dia.Φ0.8, Conductor AWG#26 max.

Termination Style
 Crimping, Soldering

Connector Type
 Board mounting/Cable/Panel/Wire

Contact Gender
 Female, Male

Mating/Unmating Cycles
 1000

Remarks
 Connection tools, Automatic crimp machine, Crimp tool, Extraction tool
