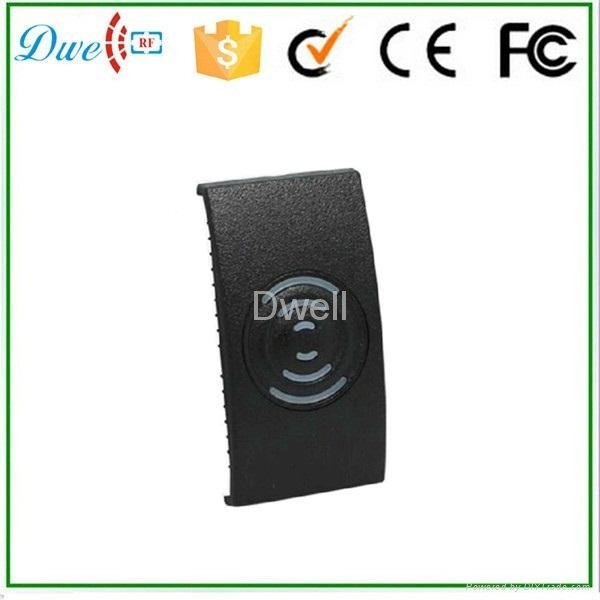

Access control card reader 002D

Model:	002D
Brand:	Dwell
Origin:	Made In China
Category:	Computers & AV Digital / Computer Accessories / Memory Card & Card Reader
Label:	access control , access card reader , card reader
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

Feature

• 125KHz Proximity/13.56MHz MF Card Reader
• Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
• 26/34bit Wiegand (default)
• Easy to install on Metal Door Frame or Mullion
• External LED Control
• External Buzzer Control
• Indoor / Outdoor Operation
• Solid Epoxy Potted
• Waterproof IP65
• Reverse Polarity Protection

Model	002D-26	002D-M34
Read Range	Up to 10CM	Up to 5CM
Reading Time (Card)	≤300ms
Power / Current	DC 6-14V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Format	26bit Wiegand (default)	34bit Wiegand (default)
LED Indicator	2 Color LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-20° to +65°C
Operating Humidity	10% to 90% relative humidity non-condensing
Color	Black
Material	ABS+PC with texture
Dimension (W x H x T)mm	84.54416.8
Weight	55g
Index of Protection	IP65
