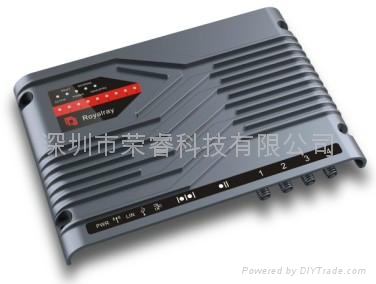

RoyalRay UHF RFID Fixed Reader

RoyalRay UHF RFID Fixed Reader
Model:RRU2861
Brand:RRU2861
Origin:Made In China
Category:Security & Protection / Access Control System
Label:Fixed Reader , UHF RFID , UHF Reader
Price: -
Min. Order:1 pc

Product Description

  UHFReader28 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

FEATURES

l        Self-intellectual property;

l        Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;

l        902~928MHz frequency band(frequency customization optional);

l        FHSS or Fix Frequency transmission;

l        RF output power up to 30dbm(adjustable);

l        4 TNC antenna port;

l        Support auto-running, answer and trigger work mode;

l        Support EPC and TID inventory;

l        Low power dissipation with single +9 DC power supply;

l        Support RS232, RS485, TCPIP with other interface optional;

l        Built-in LED, Buzzer, GPIO and Relay;

l        High reliability design.

CHARACTERISTICS

l        Absolute Maximum Rating

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

16

V

Operating Temp.

TOPR

-10~+55

Storage Temp.

TSTR

-20~+75

l        Electrical and Mechanical Specification

Under TA25℃VCC+9V unless specified

ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

8

9

12

V

Current Dissipation

IC



600

1500

mA

Frequency

FREQ

902



928

MHz

Size

Size



230x170x40



mm

RoyalRay UHF RFID Fixed Reader 1RoyalRay UHF RFID Fixed Reader 2
