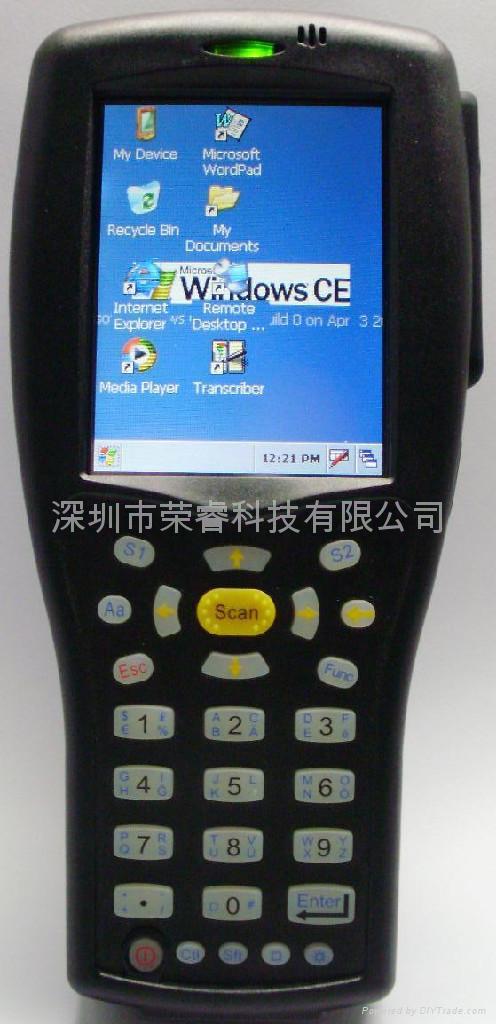

RRH9183A/RRU9183A handheld Reader is the 5th generation product developed by our company. It can read/write the electronic labels or the tags, which complies with ISO15693, ISO14443A, ISO14443B, UHF EPC Gen2 (ISO18000-6C), and ISO18000-6B standards. This reader can be widely applied to data collection systems, such as Vehicle Access Control, ETC, Personnel Access Control, Logistics Control, Electronic Anti-counterfeiting, Auto-production Management, etc.

u Integrated Long Range Laser Barcode Scanner;

u Support WiFi, Communicate with LAN by wireless network;

u Outdoor user can keep in touch with Headquarters at any time by GPRS;

u Support HF/UHF RFID;

u Handwrite input, support signature capture function;

u Industry IP54 Hardware design and can be used in Harsh environment;

u Good Performance and Cost-effective.

Performance features:

l         Processor: SAMNSUNG 400 MHz CPU;

l         Memory: ROM128MB, RAM 128MB SDRAM，expandable by SD card slot with maximum capacity to 1GB;

l         Screen:3.5 inch QVGA (240*320pixel) color Transflective TFT-LCD with LED backlight;

l         Operation System: Microsoft Windows CE 5.0 OS（Multi-Language）;

l         Keypad: 25+1 digital backlight keypad, soft keys, support handwrite input;

l         Standard Communication: USB1.1，RS232;

l         Standard Battery:3.7V 2800mAh/3200mAh Li-ion Battery；Inside backup battery: 17mAh;

l         WiFi module (IEEEE802.11b/g, 11Mb/s~54Mb/s);

l         GSM/GPRS communication module (900/1800/1900MHz);

l         Information collection: Stylus，Input board，barcode scanner, RFID;

l         Audio: built-in speaker, Mini earphone slot（2.5mm Stereo）;

l         Size:190x80x25mm  Weight:400g（with standard battery）;

l         Barcode Scan/Decode speed:100 times/s;

l         Barcode Recognition angle: 54°,effective read angle: 44°;

l         Support  Barcode type: China Post code、Code 39、Code 93、Code 128、EAN-8、EAN-13、UPC、Cross 25 code;

l         Support HF RFID: ISO15693, ISO14443A, ISO14443B / UHF RFID: EPC Gen2(ISO18000-6C), ISO18000-6B;

l         Laser Light Security standard: IEC 825.
