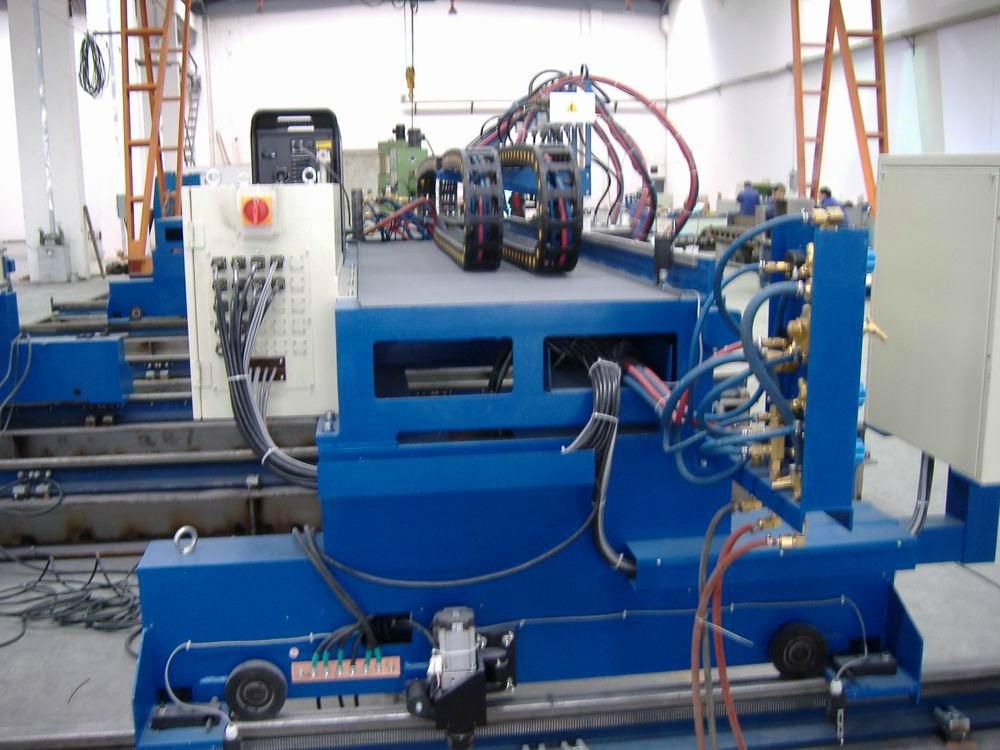

The host is the main body, mainly from the following parts: the beams, main frame, deputy frame, steel belt when tight institutions, steel strips, horizontal active car, driven car, transverse cutting torch device, pneumatic, slip line frame, cutting platform, electric control system, the numerical control system, distribution box etc.
1, cutting machine installation
1) the open-package inspection. First should be according to the packing list spare parts inventory or spare parts whether cases in good condition, check the technical data and documents are ready, and read the instruction for use, manufacturing technology agreement.
2) according to WeiDa company welding research drawings of check foundation, slip line frame and cutting platform fabrication precision.
3) the installation and adjustment of rail
L two tracks the center line parallel to 3 mm;
L Lord tracks for 1 mm centerline straightness;
L Lord tracks joining together place straightness of 0.1 mm;
L vice tracks joining together place straightness is 0.3 mm, the plane flatness of 0.4 mm, two side flatness of 0.4 mm;
L Lord, deputy tracks of the plane and level parallel degree of 1 mm.
