Six spindles four side planer/four side moulder

Six spindles four side planer/four side moulder
Model:DL4006
Brand:AUYU
Origin:Made In China
Category:Industrial Supplies / Tools / Woodworking
Label:four side planer , four side moulder , 4 side moulder
Price: -
Min. Order:1 pc
Inquire Now

Product Description

Technical parameter

Technical Specifications
Width(tool diameter 140mm) 20-230mm
Height(tool diameter 140mm) 6-125mm

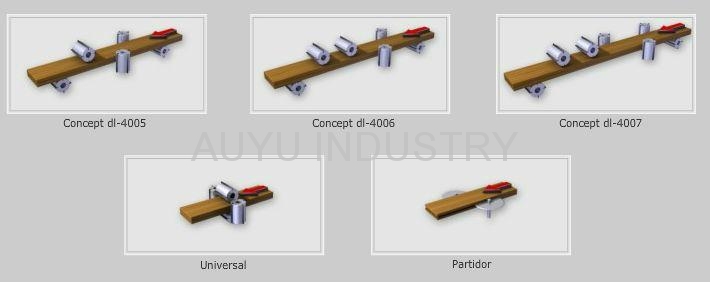

Number of spindle 5-10
Spindle speed(rpm) 6000
Cutting circle horiz.(except 1st bottom 180mm) 110-200mm
Cutting circle(vertical) 110-200mm
Spindle diameter(hardened) 50mm
Frequency controlled feed speed(m/min) 5-60
Adjustment range for infeed bed plate and fence(mm) 10
Axial movement for(horizontal-vertical spindles)(mm) 22
Feed rolls diameter(mm) 140
Max.pneumatic pressure(bar) 6
Infeed table length(mm) 1200
Min stock length(mm) 228
Upper and lower driven feedrolls 　
Bed paltes exchangeable and adjustable to tool 　
Cardan drive system 　
Air loaded receding chipbreadker in front of top spindles 　
Air loarded automatic oil pump 　
Centralized lubrication points 　
Pneumatic clutch (top spindles + feed rolls) 　
Remote controls for emergency stop,feed jog and feed works 　
Full sound and safety enclosure


Options
Outboard bearing for horizontal spindles(except 1st bottom)
Profile jointer
Straight jointer
Motor increase
Chrome plated bed plates and fences
Grooved bed plates
Extra short stock feed oll assembly
Spindle diameter(40mm,1 13/16,2 1/8)
Increased spindle speed up to 8000rpm
Long infeed table(2000mm)
Different voltages
Six spindles four side planer/four side moulder 1Six spindles four side planer/four side moulder 2Six spindles four side planer/four side moulder 3Six spindles four side planer/four side moulder 4
