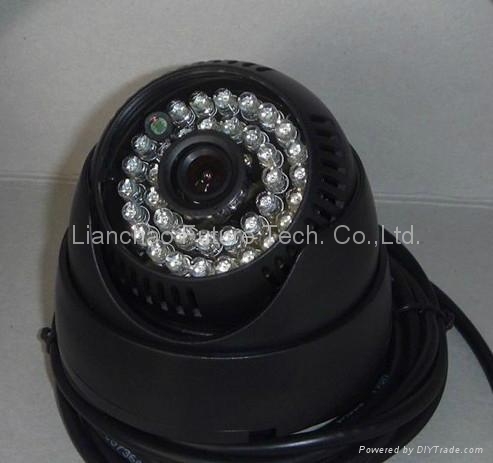

24pcs LEDS IR DOME RS232 Serial Camera

24pcs LEDS IR DOME RS232 Serial Camera
Model:LCF-23IRCN
Brand:-
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / GPS
Label:rs232 serial cmaera , rs232 cctv camera , jpeg serial camera
Price: -
Min. Order:10 pc

Product Description

Model No.: LCF-23IRCN


Application

General purpose embedded imaging and control.

Security system

Access Control system

Robot vision, object detection and recognition.

Industrial control system.

Automotive system.

Medical systems etc.



Features

1. Working by day and light.(IR LED)

2. Low cost and low powered camera for embedded imaging applications.

3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.

4. UART: up to 115200bps(128K,256K optional) for transferring JPEG still pictures

5. Support fast continuous snapshotting

6. Support from 160X120,QVGA,VGA to 1600X1200 different resolutions

7. Auto-Infrared, Auto-White Balance, Auto-Gain Control.

8.Support IR FILTER SWITCH(AUTO)



No.

Item

Description

1

Image sensor

CMOS

2

Pixels

2.0 mega pixels

3

Image Resolution

from 160X120 to 1600X1200

4

Image Compression

JPEG

5

Focal Length

3.6mm 6.0mm

6

Angle of View

90° 60°

7

Minimum lumen

1 Lux

8

Night Vision lumen

5 Lux

9

Night Vision Image

Black-White Image

10

Night Vision Distance

3-10M

11

Serial Interface

RS232 TTL RS485

12

Baud Rate

9600-115200bps ,128K,256K

13(1)

Connector

Customize for customer(any connector is available)

(2)

 PIN Description

PIN 1: DC 12V/24V

PIN 2: TXD

PIN 3: RXD

PIN 4: GND



14

Length of Cable

Customize for customer(2m is default one)

15

White Balance

Automatic

16

Exposure

Automatic

17

Auto Gain Control

Automatic

18

Weight

0.4KG

19

Working Current

IR Off: 80-120mA

IR On: 250-320mA

20

Power Supply

5V

21

Working Temperature

-15°C~70°C

22

Datasheet/Protocol

LCF Protocol

23

PC Test Software

Support

24

Material of case

Plastic case

24pcs LEDS IR DOME RS232 Serial Camera  124pcs LEDS IR DOME RS232 Serial Camera  2
