Model: | YAG-500W |
---|---|
Brand: | GuangFeng |
Origin: | Made In China |
Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
Label: | laser engraving cnc , metal carving router , metal sheet cutting |
Price: |
-
|
Min. Order: | 1 pc |
1 |

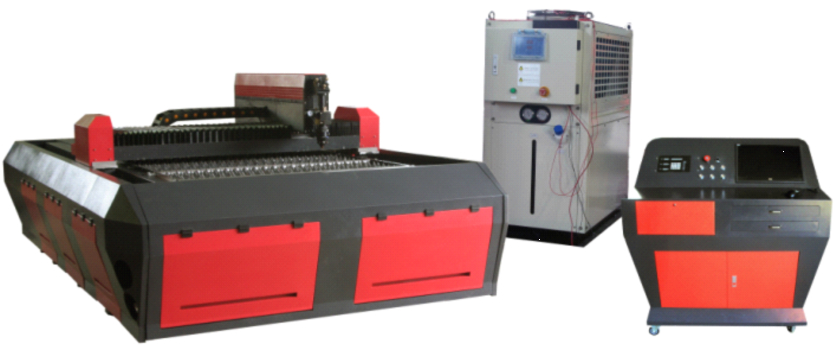

Machine Name |
Metal laser cutting machine |
|
2 |
Machine Model |
YAG-500W |
|
3 |
Laser wavelength |
1064 |
nm |
4 |
Laser pulse frequency |
0.1 - 500 |
Hz |
5 |
Width of pulse |
0.2 - 20 |
ms |
6 |
Working current |
100 - 400 |
A |
7 |
Laser rated power |
500 |
W |
8 |
Laser power source |
18 |
kw |
9 |
Chiller |
5.6 |
kw |
10 |
X axis, Y axis route |
1300×1300 |
mm |
11 |
Z axis route |
50 |
mm |
12 |
X、Y located precision |
+/-0.05 |
mm/m |
13 |
X、Y repeated located precision |
+/-0.05 |
mm/m |
14 |
Min line width |
0.2 |
mm |
15 |
Located apparatus |
Red light direction |
|
16 |
Way of air protection |
Coaxial |
|
17 |
Suitable file format |
dxf, ai, plt |
|
18 |
Driving way |
Japanese servo motors |
|
19 |
Continuous working time |
24 |
H |
20 |
Max cutting thickness (Carbon steel) |
8 |
mm |
21 |
Applied material |
Stainless steel, carbon steel, copper,aluminum, titanium sheet and so on |
|
22 |
General power |
12-20 |
KW |
23 |
Electrical source voltage |
380V±10%/50Hz/100A |
|
24 |
Spare parts |
Xe lamp, water, auxiliary gas(N2, O2) |
|
25 |
Grade of laser |
Class IV |
