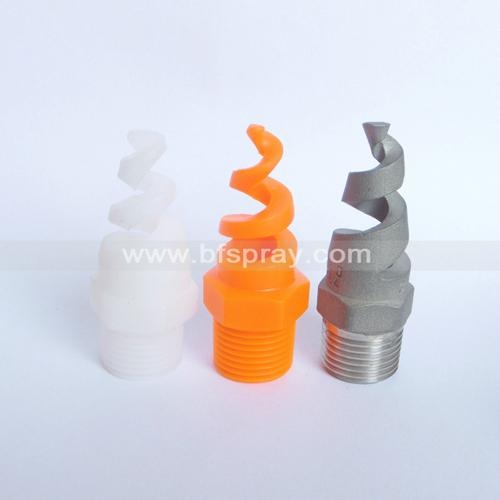

Desulphurization and dust removal spiral nozzle

Features

1. Spiral nozzle (SPJT) is a full cone shaped or hollow cone spray nozzle, Jet angle scope can be from 60 ° to 170 °, generally 120 °.
2. At 3 bar pressure, the liquid flow rate range is from 5.5 L/min to 140 L/min.
3. widely used in the flue gas desulphurization and dust removal, exhaust gas and wastewater disposing, fireproof and firefighting, spray cleaning, etc.
4. This compact nozzle has a smooth flow path design that can minimize the liquid blocking, and the liquid in the pipeline of a given size reaches the maximum flow.
5. Spiral nozzle can be installed or updated in the majority of the pipeline system. There are NPT or BSPT (male) threads nozzles available, spiral nozzle generally for inch male thread specification, it can connect with threaded adapters to be female thread, Usually, 1/4 inch to 4 inch nozzles can be separately made of various materials, such as brass, 316 L stainless steel castings, PVDF, 95 ceramic, silicon carbide, TEFLON PTFE or PVC. And 316L stainless steel castings, PVC, 95 ceramics, silicon carbide stock a large number.
6. We promise that conventional products can be shipped freely. If the nozzles applied to the special areas, relevant material nozzles also can be supplied.
7. if you need special processing, please contact BOFA Electronic Technology Co. Ltd sellers.

Application

1. Power plant, burning coal project desulfurization and denitration.
2. Air purification, air cooling and defoaming.
3. Evaporation, cooling, and dust controlling
4. Wetting air by dust removing spray--environment protect
5. Pre-treatment requires for non-blocking spray
6. Air cooling
7. Exhaust gas cleaning
8. Fire fighting, fireproof
9. Steel and iron /petrochemical industry dustproof application
