Application:



Woodworking industry: wave plate processing, wood cabinet, cupboard door, fine pattern's engraving, carving of the antique furniture, craft wood door, paint-free door, byobu, craft casement,etc.

Advertising industry: advertising signs& label making, engraving of Acrylic, crystal words' processing, plastic molding's making, etc.

Crafts& gifts: toys, and processing of copper, aluminum, plastic, double-color board, marble.

Others: decorations, plastic light box, molds, wooden architechts'molds, product identification industry, carpentry furniture industry, teaching, enterprise and public institution, etc.



Introduction:

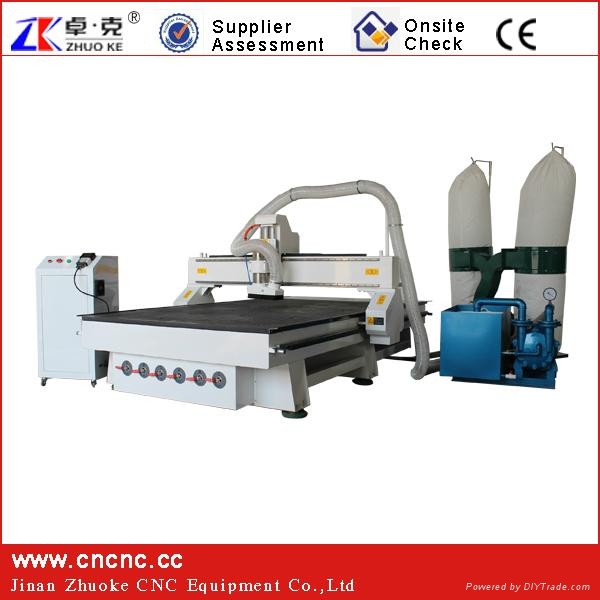

a: The Stable T-shaped Cast iron frame and gantry, 1500*2500*200mm working area.

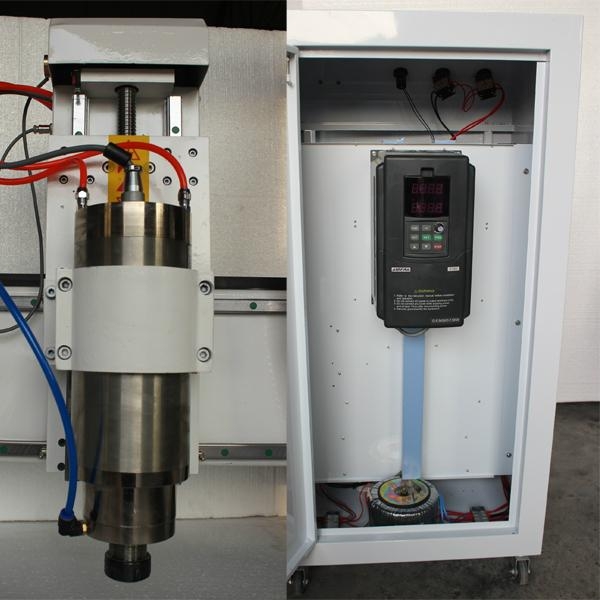

b: The China 7.5KW water cooling motor spindle and 5.5-7.5KW inverter.
c: X,Y,Z axis are Hiwin linear square guide rail(20mm), the X,Y axis transmission is gear rack, Z axis is ball screw(2505.
d: X,Y, Z axis are install 4 sets 86BYG-450B Step motor and Leadshine MA860H drivers.
e: Vacuum working table with T-Slot, the vacuum pump is 380V 5.5KW water cooling pump(The whole will be divide to 6 Zone with 6 valve).

f:  AC 380V 5.5KW double bags dust collector.
g: DSP offline operating Control system and Artcam 2008 design software.

h: The machine voltage is AC 380V 50HZ.




Parameter:



Introduce	Data	Optional
XY-axis working area	1500*2500mm
Z-axis working area	200mm	Higher
Spindle power	China 7.5KW water cooling motor spindle
Guide rail	Hiwin Linear square guide way(25mm)
Transmission	Rack for XY axis ball screw for Z axis
Driving mode	86BYG-450B step motor	Yaskawa servo motor
Processing accuracy	0.03mm
Spindle speed	0-18000rpm/min
Empty traveling speed	0-12000mm/min
Engraving speed	0-10000mm/min
Milling  cutter	3.175/4/6/8/10/12.7mm
Control system	DSP Offline operating system	PCI Ncstudio or Mach3
Carving Instructions	G code *Uoo *mmg *plt HPGL
Software environment	Windows 2000 / XP/7
Compatible software	Type 3, Artcut, Artcam2008
Vacuum working table	380V 5.5KW vacuum pump and seals	7.5KW vacuum pump
Clean system	380V 5.5KW double bag dust collector
Power supply	AC380V/50HZ
Other parts	Auto electric oiling system for guide rail





Packing and Shipping:



Our machine all use strong plywood case to packing for the whole machine, and before cover this plywood case, we also will use high quality plastic film to keep whole machine dry on the delivery.



For our products, the better transportation method is shipping transportation and land transportation, and for our small size machine, you also could air transportation or air express, you can make decision according to your place and budget. If you want to know the shipping costs, please inform me the nearest harbor to your home.

Packing dimension: 3300*2200*1680mm

Gross weight: 1650KG



Dear customer:



We also have other model for you, the 3.4.6 8 spindles all ok to us, and you also could choose different working size.



I wish this information will helpful to you, if you have other confuse or request, please just contact me, or you can ask me for machine working video, i will be here support you.



Contact person: Sabrina Zhou
