Application:



Metal cnc router is suitable for all kinds of metal, such as copper, aluminum, iron, steel, stainless steel, soft steel, alloy, silver, gold.
Also suitable for nonmetal, such as arcylic,wood, MDF, double color board, stone, jade and so on.
It can engrave and cut well on aluminum, copper, alloy,silver, gold.
Engrave well on steel, stainless steel, iron and so on.
For nonmetal, advertising and wood indurstry, it can work well on mini size material.



Introduction:



1. Cast iron Lathe bed ,cast aluminum Longmen structure , Aviation aluminum working mesa (1.8mm thickness).

2. 3-axis (XYZ) use step motor (57BYG-311) and 3-axis is dust-proof.

3. X Z axis use cylinder guideway ball screw(1605) transmission, Y axis is PMI or Hiwin linear square guide rail and ball screw (2510)

4. Exchange transformer(AC 30V 300W) power supply, driver motor is Leadshine M542-05.

5.  China water-cooled brushless frequency-change spindle (1.5kw) and inverter  is 1.5KW Shenzhen Sifang.

6. 3-axis motor line is CNC High soft lines (4*0.75), spindle line is Shielding high soft line (3*1.5)

7. The processing precision is 0.05mm

8. Design software is Type3 , Artcam, Control system is DSP offline operating system.

9. Stainless steel water slot for tools protection.

10. Voltage is AC220V 50HZ.



Parameter:

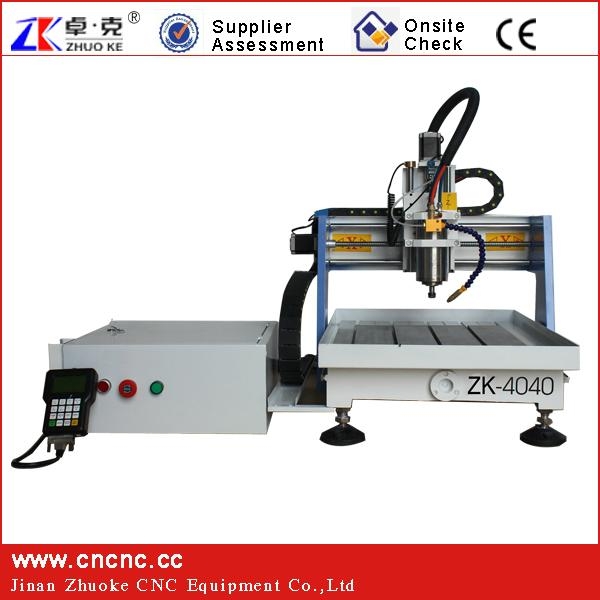

Model:	ZK-4040
Machine body:	cast iron lathe, cast aluminum gantry
Move Mode	Gantry Move
Guideway:	XZ-axis use cylinder guideway, Y axis is linear square
Driving mode :	XYZ-axis use ball screw
X,Y-axis working area :	400*400mm
Z-axis working area:	120 mm
Cut thickness of material:	≤40mm
Max. Speed:	8000mm/min
Working speed :	0-6000mm/min
Mechanical precision:	0.02mm
Driver type:	Stepper motor (57BYG-311)
Spindle:	1.5 KW variable speed , water-cooled motor
Spindle speed:	0-24000rpm/min
Blade diameter:	3.175mm,4mm,6mm
Control system:	DSP(offline operate)
Command:	G code ,u00,mmg,plt,HPGL
Operating temperature:	0-45°C
Relative humidity:	30%-75%
Compatible Software:	Type 3 software , Artcut , Artcam, Mastercam
Max. Power consumption:	2.2KW
Power source:	AC220/50HZ
Optional parts	Stainless steel water slot



Packing & Shipping:



For our products, we will take one strong plastic bag cover whole machine to prevent machine Soaking, then we also use the thick plywood case packing whole machine, it is good for long time delivery.
