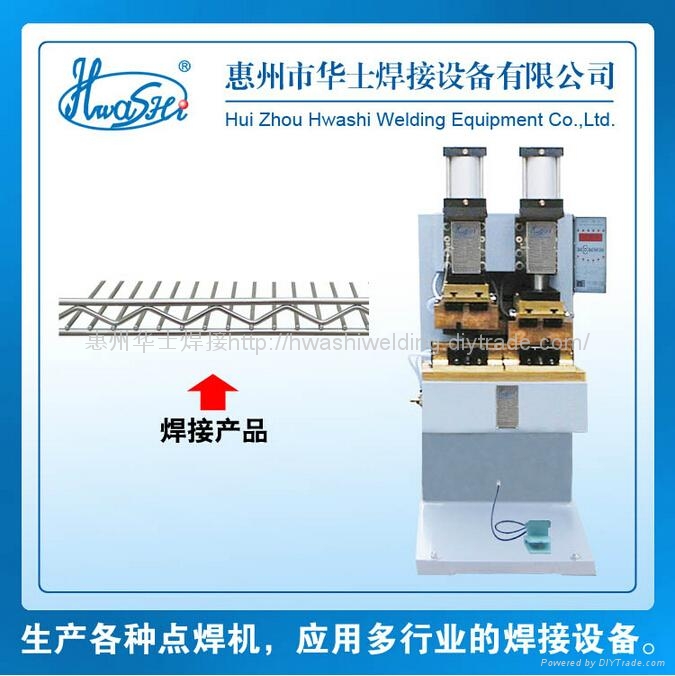

HWASHI Series multi-fuction wire row welder

• This machine is composed of cantilever type rack, welding transformer, pneumatic servo motor device, upper and lower electrodes, electricity and air installation panel, cooling system and PLC operation control system. This machine could be used to weld the square, rectangle, triangle, circular and other shape wire mesh.

• Multiple welding electrodes are installed on the beam which is equipped with slide way to conduct moving from left to right. Easy to adjust the distance between the welding spots. It is suitable for welding different work pieces. Flexible assembly: the actions of cylinders could be changed via modifying the parameters. There are more than 1000 types of assembly way.

• The upper electrodes will conduct vertical movement to complete the welding process. Besides, the upper electrodes could adjust the working distance from front and back smoothly. The lower electrode mould could be adjusted from left to right, the installation is simple.

• The operator only needs to put the wire onto the mould, then the machine will conduct feeding and assembly welding automatically. It can help save the labor force and increase the productivity compared with manual feeding. Besides, the machine could be used to weld multiple moulds.





HWASHI Series multi-fuction wire row welder

• Main body: It adopts longitudinal stress body and good quality thick steel plate to ensure the strength and stability of the main body.

• Welding Power Source:Since the distance between wires is long, the welding head is suitable to conduct single-point welding. So the machine will choose the small power 150KW discharging transformer which is special used for resistance welding as the welding power source. To ensure the strength and stability of the welding,

• Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.

• Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively.





HWASHI Series multi-fuction wire row welder

Welding of carbon steel, low steel alloy, stainless steel, galvanized or nickelplating wire.





HWASHI Series multi-fuction wire row welder

No.	Item	Data
1	Input Voltage	380V  two-phase
2	Input Current	400A
3	Output Voltage	AC11.6V
4	Max Short Circuit Current	38000A
5	Welding Models	16 types
6	Welding Positions	5000 point
7	Different Welding Current	8 types
8	Welding Effective Width	800mm
9	Welding Effective Length	800mm
10	Feeder Moving Speed	100mm/sec-800mm/sec
11	Feeder Moving Force	Servo Motor
12	Upper Welding Cylinder	6(100x80mm)
13	Lower Welding Cylinder	2(125X50mm)
14	Fixture Feeder	2





HWASHI Series multi-fuction wire row welder

• Adopt silicon controlled from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life.
• Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
• Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system.
• Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%.
• Adopt South Korea SANWO pneumatic components with stable performance.
• All the electronic components are from Japan Mitsubishi and Omron with ideal service life and performance.
• The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.
• High precision all digital control system effectively resolve the  problems of cold joint or loose welding due to the current shunt in projection welding.
• Strictly comply with CE security standard to design the machine. Lower the accident rate.





HWASHI Series multi-fuction wire row welder

We have professional production team,  production line,  experienced technical experts who engaged in this industry for more than 20 years.
The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.








1. HWASHI is the leading brand in resistance welding industry in China for 20 years;Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
