Specification

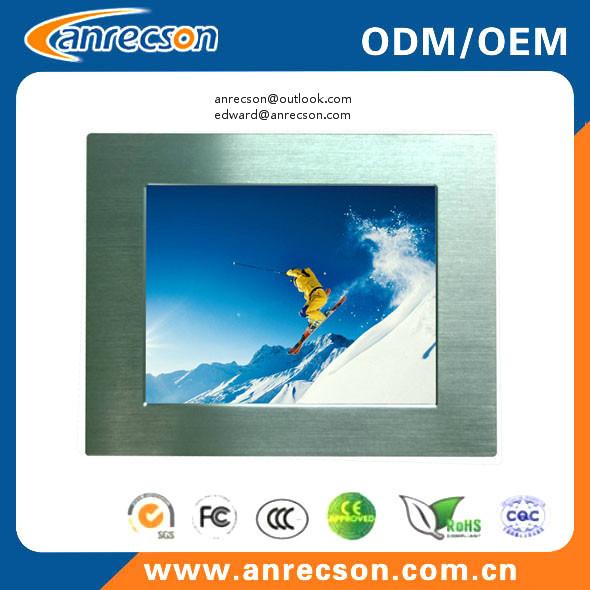

17"Touch Industrial Monitor

Mode Name

LC-MI1701ET-5R

Screen Size

17"

Active Display Area (mm)

337.92mm(W)×270.336mm(H)

Display Mode

4:3

LCD Type

TFT-LCD

Resolution

1280×1024

Display Color

16.7M

Pixel Pitch(mm)

0.264(H)×0.264(V)

Brightness(nits)

250cd/m²

Contrast Ratio

1000:1

Viewing Angle

170(H) /160(V)

Response Time

5ms

Backlight

2 CCFL

Interface

D-Sub15 pin(VGA),DVI,HDMI

Power

DC12V  4A   50HZ/60HZ/70HZ

Power Consumption

≤35W (Max)

Plug & Play

DDC 1/2B

OSD Control

Auto adjust, Brightness, Contrast, Hori. / Vert.

Position, Clock, phase, Color, Language..

MENU

Chinese/English(other languages supported)

Mount Method

Mounting

EmbeddedMount

Optional Mounting Way

VESA 75mm/100mm

Touch Type

TouchScreen Type

Resistive(5-wire)

Optional TouchScreen Type

SAW, IR ,Capacitive

TouchScreen interface

Serial (RS232) or USB(B)

Certificate Approval

CE,RoHS,CCC,FCC,ISO9001

Warranty

1.5 years

Application

ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment
