Specification

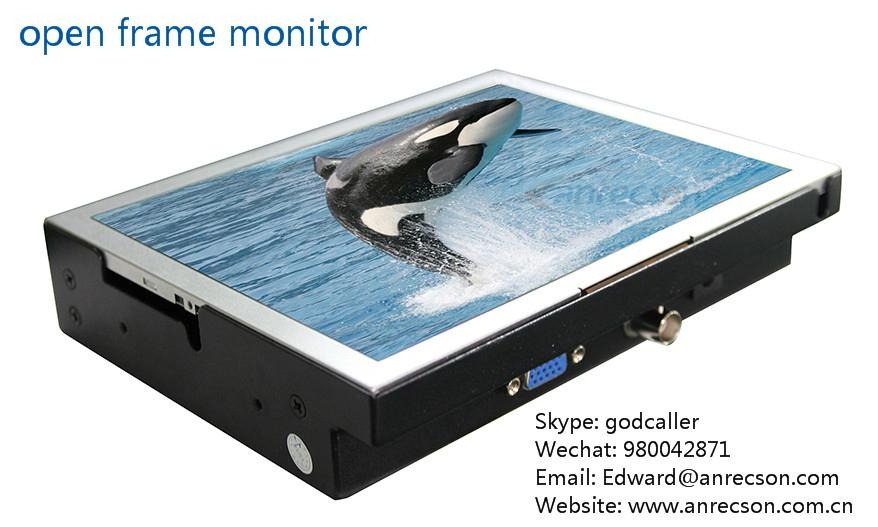

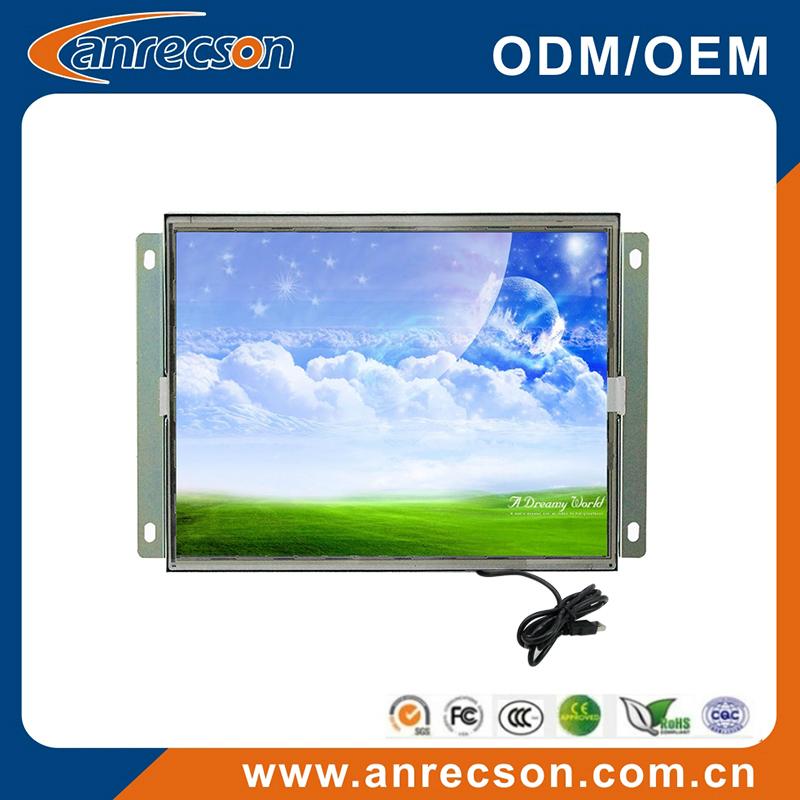

8" Touch Open Frame Monitor

Mode Name

LC-OF0801T-4R

Screen Size

8″

Active Display Area (mm)

162mm(W)×121.5mm(H)

Display Mode

4:3

LCD Type

TFT-LCD

Resolution

800×600

Display Color

16.7M

Pixel Pitch(mm)

0.0675(H)×0.2025(V)

Brightness(nits)

250cd/m²

Contrast Ratio

500:1

Viewing Angle

140(H) /120(V)

Response Time

10ms

Backlight

LED backlight

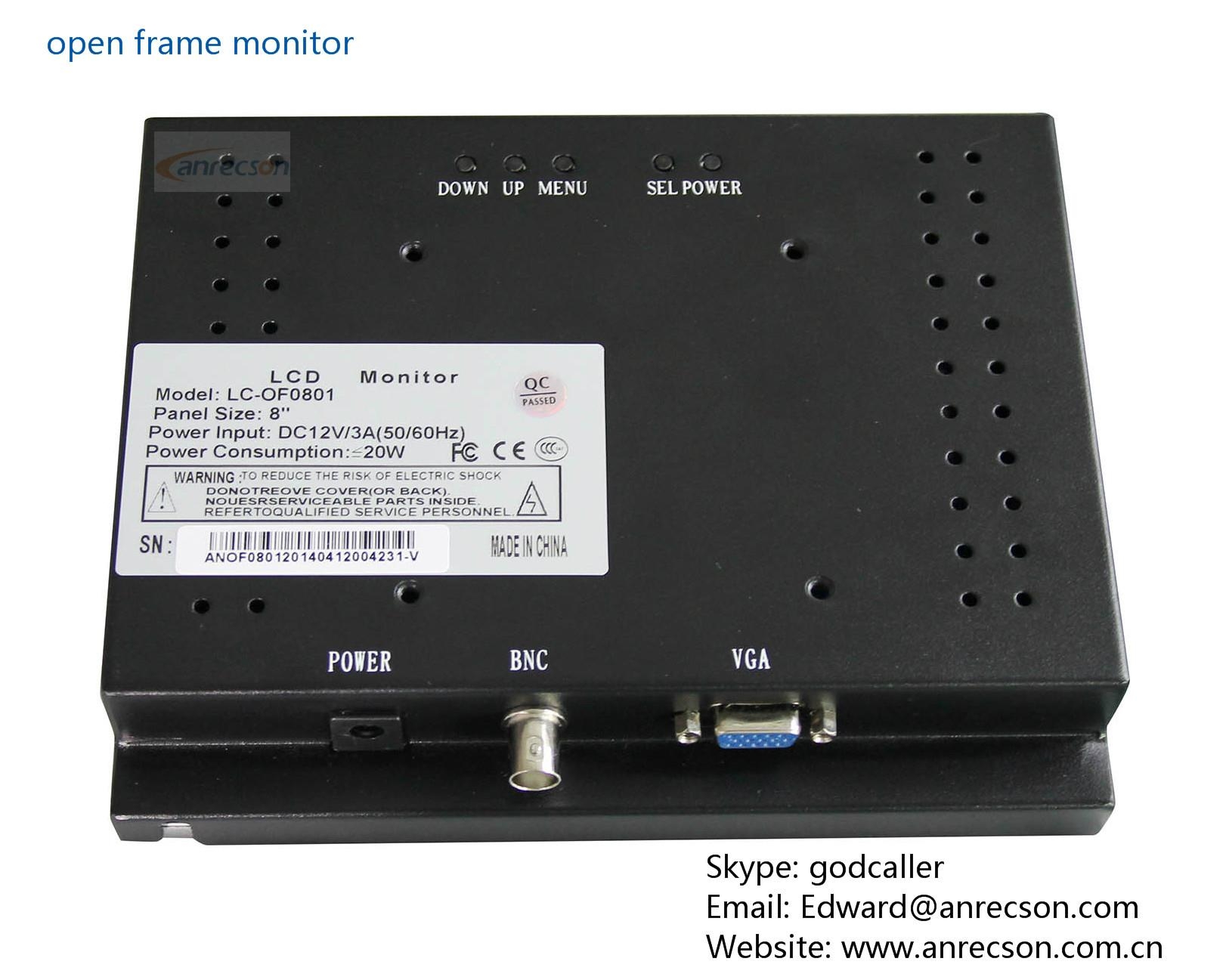

Interface

D-Sub15 pin(VGA),BNC

Power

DC12V  2A   50HZ/60HZ

Power Consumption

≤20W (Max)

Plug & Play

DDC 1/2B

OSD Control

Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..

MENU

Chinese/English(other languages supported)

Mount Way

Mounting

VESA 75mm/100mm

Touch Type

TouchScreen Type

Resistive(4-wire/5-wire)

Optional Touch Type

IR

TouchScreen interface

Serial (RS232) or USB(B)

Certificate Approval

CE,RoHS,CCC,FCC,ISO9001

Warranty

1.5 years

Application:

ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment
