Model: | GW301 |
---|---|
Brand: | Linktech |
Origin: | Made In China |
Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
Label: | Car bus router , router openwrt , 3G/4G LTE router |
Price: |
US $1
/ pc
|
Min. Order: | 1 pc |
Product Description:

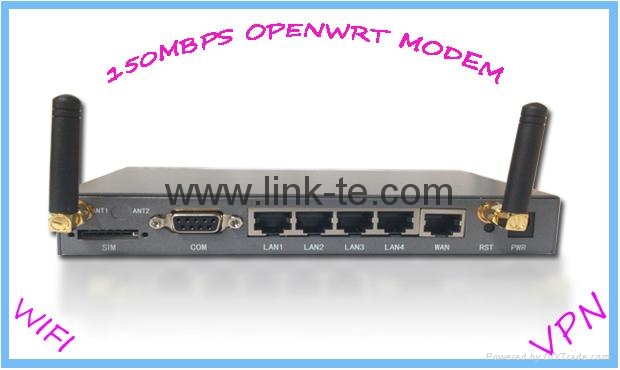

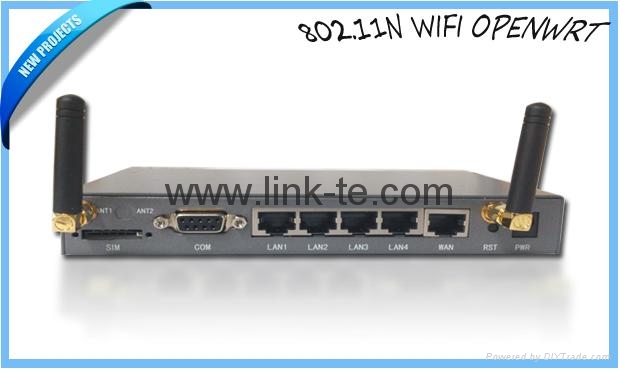

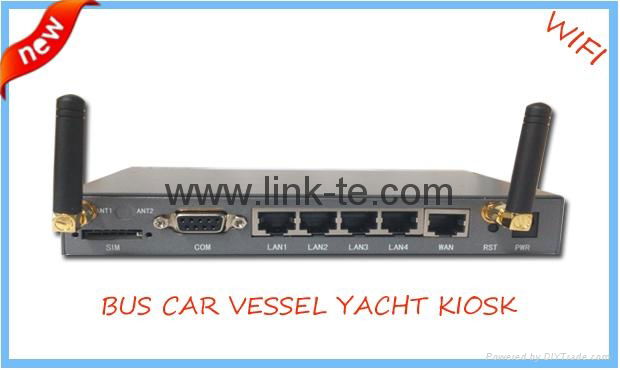

The GW400 Industrial 4G WiFi Router that can be used as a WiFi hotspot via 3/4G network . The M2M series Cellular Router enables users to quickly create a secure Wi-Fi (802.11 b/g/n) network and provide access to the Internet using a cellular network .
Professional Industrial M2M 4G Cellular WiFi Router , wireless support 802.11n,WiFi speed up to 300Mbps, GW400 is based on the industrial application of high performance wireless router Using one of the world's leading Atheros scheme, the CPU basic frequency 550 MHZ.
Product Applications:
1, Mobile POS terminal, fiscal cash register; Networking of banks, ATM;
2, Gathering data of power/water/gas meter over Ethernet;
3, Wireless supervision for vehicles: fire engines, police cars, taxi, buses, container trucks;
4, Monitoring for traffic, water supply system, power supply system, unsupervised warehouse/BTS;
5, Remote supervision of factories, street lamps, gas pipelines
6, Remote collecting for weather data, environmental protection system data;
7, Mobile video supervision system.
Product Feature:
1, Compliance to the IEEE 802.11 n/g/b, Speed up to 300Mbps
2, 1 WAN port , 4 LAN port, 1 RS232 debug uart, 1 SIM slot , 1 DC in
3, Built-in Industrial 4G module, Support 4G LTE/ WCDMA/UMTS/HSUPA/HSDPA
/ EVDO/ TD-SCDMA, Download speed up to 150Mbps
4, Support auto recovery mechanism, including online detect, auto redial when offline to
make router always online
5, Support APN/VPDN
6, SIM/UIM port: 15KV ESD protection;
7, Wide power range: DC 5~40V; 9V- 60V (Option)
8, Provide three GPIO ports, customers can develop any application
9, Support standard COM RS232 debug uart port
10, Support virtual server, special application and the DMZ host and so on the many kinds of port forwarding, and can be used for the connection website construction
11, Support SSID broadcasting control, based on the MAC address of the access control list
12, Built-in firewall, support IP and MAC, URL filtering, can flexibly control the Internet access and Internet time
13, Built-in DHCP server, can be automatically, dynamic allocation IP address
14, Using wireless Roaming (Roaming) technology, efficient wireless connections
15, OpenWrt software, meet customer secondary development (Option)
Product Specification:
CPU |
Qualcomm AR9531 550MHz |
||||
RAM |
64M, 128M(option) |
||||
Flash |
16M |
||||
Interface |
1 WAN port , 4 LAN port, 1 RS232 debug uart, 1 SIM slot , 1 DC in; |
||||
Network type |
LTE; WCDMA/UMTS/HSDPA ; EVDO, TD-SCDMA; |
||||
Cellular Frequency
|
FDD Band |
TDD Band |
WCDMA Band |
GSM Band |
|
B2,B4,B12 |
|
B2,B4,B5 |
|
||
B1,B3,B5,B7,B8,B20 |
B38,B40,,B41 |
B1,B5,B8 |
900/1800 |
||
B4/B13 |
|
|
|
||
B1,B3,B5,B7,B8,B28 |
|
B1,B5 |
|
||
B1,B3,B8 |
B38,B39,B40,B41 |
B1,B8 |
900/1800 |
||
B1,B3,B8 |
B38,B39,B40,B41 |
B1,B8 |
|
||
B1,B3,B8 |
|
B1 |
900/1800 |
||
B1,B3 |
B38,B39,B40,B41 |
|
900/1800 |
||
B2,B4,B5,B12,B17 |
|
|
850/1900 |
||
B1,B3,B5,B7,B8,B20 |
|
B1,B3,B5,B8 |
850/900/1800/1900 |
||
Cellular Speed |
Network mode |
upload speed |
Download speed |
||
FDD-LTE |
cat3:50Mbps,cat4:50Mbps |
Cat3:100Mbps,cat4:150Mbps |
|||
TDD-LTE |
cat3:50Mbps,cat4:50Mbps |
Cat3:100Mbps,cat4:150Mbps |
|||
EVDO |
Reva:1.8Mbps |
Reva:3.1Mbps |
|||
HSUPA(WCDMA) |
HSPA+:5.76Mbps |
HSPA+:42Mbps |
|||
Network Settings |
Wan Settings, LAN Settings, DHCP client list, senior routing configuration, QoS quality service |
||||
Wireless settings |
Basic Settings, advanced Settings, security Settings, WDS, the client list |
||||
Firewall |
MAC/IP/Port filter, the virtual service, DMZ, system security Settings, content filter |
||||
WLAN Feature |
Support 64/128 bit WEP encryption; Support WPA/WPA - PSK, WPA2 / WPA2-PSK, IEEE 802.1 X and encryption and security mechanism Support SSID broadcasting control and based on the MAC address of access control |
||||
VPN |
Support L2TP/PPTP(Openwrt) |
||||
5.8G module |
Support 5.8G WIFI, 5.8G WIFI MINI PCIE Slot (option) |
||||
Management mode |
Telnet, Serial Port |
||||
Size |
(L) 130 x (W) 86 mm |
||||
Power |
DC Wide voltage, 5~40V; 9V- 60V (Option) |
||||
Case |
Metal case, providing IP30 protection |
||||
operating environment |
Working temperature:- 20°C to 70°C; Work humidity: 10% to 90% RH not condensation Storage temperature: -40°C to 80°C; Storage humidity 5% to 90% RH not condensation |
||||
