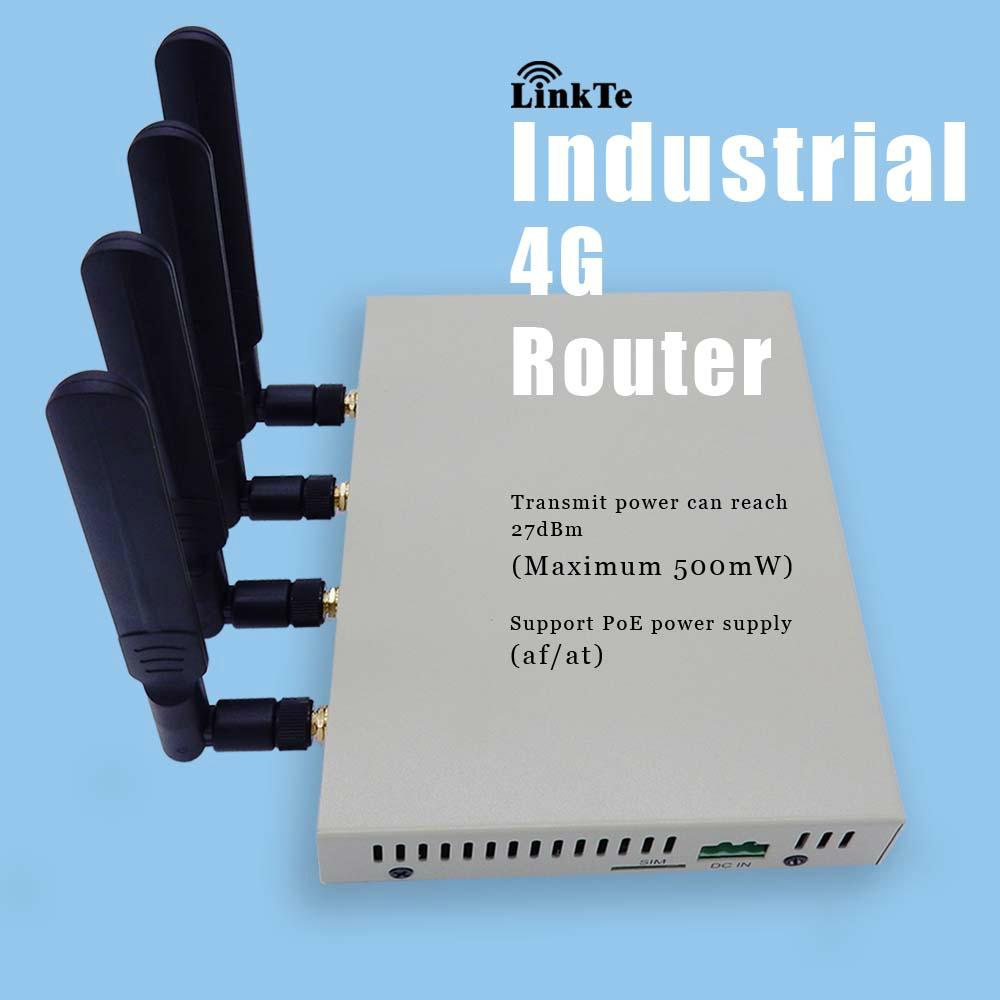

Industrial 4G WiFi Router with OpenWrt PoE 500mw High Power




Product Description:



The GW403Industrial PoE 4G High Power WiFi Routerthat can be used as a WiFi hotspot via 3/4G network . It is support standard AF/AT PoE, no need extra power adater. High power : Transmit power can reach27dBm (maximum 500mW), which use2pcs SE2576 of SKYWORKS.



Professional OpenWRT  wireless  router,  wireless  support  802.11n,WiFi speed up to 300Mbps, GW403 is based on the industrial application of high performance wireless router Using one of the world's leading Atheros scheme, the CPU basic frequency 550 MHZ, highest ,Perfect compatible OpenWRT third parties firmware, meet customer secondary development, is also a new high performance 3/4G wirelessrouter.





Product  Applications:



1,     Mobile POS terminal, fiscal cash register; Networking of banks,ATM;2,  Gathering data of power/water/gas meter over Ethernet;

3, Wireless supervision for vehicles: fire engines, police cars, taxi, buses, container trucks;

4, Monitoring for traffic, watersupply system,power supply system, unsupervised warehouse/BTS;

5,     Remote supervision of factories, street lamps, gas pipelines

6, Remote collecting for weather data,  environmental  protection  system data;

7,     Mobile video supervision system.







Product Feature:



1,     Complianceto the IEEE 802.11 n/g/b, Speed up to300Mbps;

2,     1 WAN/PoE port ,4 LAN port,  1 SIMslot , 1 DC In;

3,    Built-in Industrial4G module, Support 4G LTE/WCDMA/UMTS/HSUPA/HSDPA

/ EVDO/ TD-SCDMA;

4,   WiFi High Power : Transmit power can reach 27dBm (Maximum 500mW);

5,Support PoE power supply (af/at);

6,Support OpenWrt software, meet customer secondary development;

7,    Using wireless Roaming (Roaming) technology, efficientwirelessconnections8,Support UPnP, DDNS, static routing, VPN Pass - through

9, Provide DoS attack prevention,has the virus to be automatic isolation function 10, Support virtual server, special application and the DMZ host and so on the many kinds of port forwarding, and can be used for the connection website construction

11,Support SSID broadcasting control, based on the MAC address of theaccesscontrollist

12,Built-in firewall, support IP and MAC, URL filtering, can   flexibly controltheInternet access and Internettime

13,    Built-in DHCP server, can be automatically, dynamic allocationIPaddress





Product Specification:





CPU	Qualcomm AR9341 550MHz
RAM	DDR2    64M
Flash	SPI 8M
3/4G module	F5521GW, MC7304, MC7354, MC7700, MC7710, etc
Interface	1* WAN/PoE ,4*LAN,1* SIM slot,,              1 DCIn
Network type	LTE;      WCDMA/UMTS/HSDPA;          EVDO,      TD-SCDMA;
Work frequency	LTE FDD 800/900/1800/2100/2600MHz LTE FDD 700/1700/2100/MHz Downlink LTE packet data service of up to 150 Mbit/s Uplink LTE packet data service of up to 50 Mbit/s   WCDMA/UMTS/HSDPA/HSUPA:850/900/1900/2100MHz,21Mbps/5.76Mbps EVDO:800/1900MHz,Release    A,3.1Mbps/1.8Mbps TD-SCDMA/HSDPA:2100MHz,up to 2.8Mbps,GSM/GPRS/EDGE 900/1800MHz
Network Settings	Wan Settings, LAN Settings, DHCP client list, senior routing configuration, QoS quality service
Wireless settings	Basic Settings, advanced Settings, security Settings, WDS, the client list
Firewall	MAC/IP/Port filter, the virtual service, DMZ, system security Settings, content filter
WLAN Feature	Support 64/128 bit WEP encryption; Support WPA/WPA - PSK, WPA2 / WPA2-PSK, IEEE 802.1 X and encryption and security mechanism Support SSID broadcasting control and based on the MAC address of access control
VPN Support	Support PPTP, L2TP, support for multiple encryption mode
Management mode	telnet, Serial Port
Size	(L) 130 x (W) 86 mm
Power	DC Wide voltage, 9V – 55V
Case	Metal case
operating environment	Working temperature:- 20°C to 70°C; Work humidity: 10% to 90% RH not condensation Storage temperature: -40°C to 80°C;
