new active 10 inch line array system

new active 10 inch line array system
Model:W-110&W-118P
Brand:CVR
Origin:Made In China
Category:Consumer Electronics & Lighting / Other Consumer Electronics
Label:10" line array , active line array , array system
Price: -
Min. Order:2 pc

Product Description

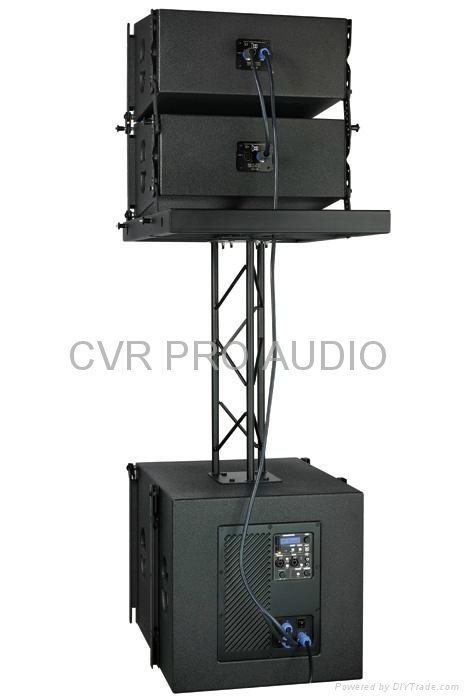

   W-110 is a line array system which is made of one 10” neodymium woofers, two 1.75” titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. Wherever low frequency extension is required, a W-110 will integrate seamlessly with W-118 or W-118P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-110 is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
     W-118/W-118P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-110, W-118/W-118P is a sub-bass enclosure which must be flown with W-110. Its physical dimensions are identical to the W-110 and it is equipped with the same proprietary rigging system. It features with a 18” neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion. The W-118P with Bluetooth features a highly efficient power amp module and incorporated DSP.

Model W-110 & W-118/W-118P(Active)
Type Line array system
line array sub-bass system(W-118/W-118P)
Frequency Response 65Hz-20KHz±3dB
35Hz-500Hz±3dB(W-118/W-118P)
Power handling LF 400W(RMS)800W(PEAK)
HF 120W(RMS)240W(PEAK)
800W(RMS)1600W(PEAK)(W-118/W-118P)
Power amp 2X600W/4ohm + 1X900W/8ohm (W-118P)
Amplifier type Switching power amp, class D circuit
Other functions Bluetooth,DSP (W-118P)
Sensitivity LF 96dB(1W@1M)
HF 108dB(1W@1M)
109dB(1W@1M)(W-118/W-118P)
Max@S.P.L LF 122dB(PEAK/1M)
HF 125dB(PEAK/1M)
135dB(PEAK/1M)(W-118/W-118P)
LF section 1×10"(260mm) neodymium woofer
75mm(3in)coil
1×18"(460mm)woofer
100mm(4in)coil (W-118/W-118P)
Nominal impedance 8 ohm/8 ohm (W-118/W-118P)
HF section 2×1.75"compression driver with44mm
titanium diaphragm
Nominal impedance 16 ohm
Output section 2-channel
Dispersion pattern 110º H×9º V
Surface finish Black paint
Array design Arrays of less than 3×W-110 will
provide poor dispersion control and are
neither recommended nor supported
Speaker cables LF1(+)1(-) HF 2(+)2(-)
1(+)1(-) (W-118P)
Rigging system Please refer to the W-110 user's
manual before any operation
Input connectors 2×NL4MP speakon
Recommend crossover LF 70Hz-2KHz
HF 2KHz-20KHz
35Hz-120Hz(W-118P)
Dimensions 522×595×450mm(W×H×D)
522×510×650mm(W×H×D)
(W-118/ W-118P)
Package dimensions 592×665×520mm/0.15cbm
592×735×720mm/0.39cbm
(W-118/ W-118P)
Enclosure Birch Plywood
Net weight 21kg(W-110)/40kg(W-118)/46kg(W-118P)
Gross weight 23kg(W-110)/43kg(W-118)/49kg(W-118P)
