indoor line array active 8 inch professional system

indoor line array active 8 inch professional system
Model:W-82C&W-15CP
Brand:CVR
Origin:Made In China
Category:Consumer Electronics & Lighting / Other Consumer Electronics
Label:indoor line array , 8" line array , active line array
Price: -
Min. Order:2 pc

Product Description

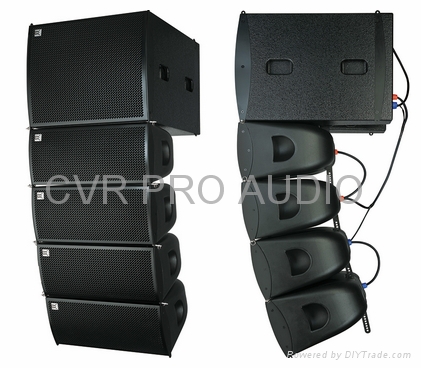

  W-82C is a line array system which is made of a 8"woofer, a 1.75"titanium compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-82C will integrate seamlessly with W-15C or W-15CP line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-82C is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
       W-15C/W-15CP is a dedicated high performance sub-bass system designed to augment the low frequency output of W-82C. W-15C/W-15CP is a sub-bass enclosure which must be flown with W-82C. So its physical dimensions are identical to the W-82C and it is equipped with the same proprietary rigging system. It features with a 15"woofer with magnet structure and suspensions engineered for maximum linear excursion. The W-15CP with Bluetooth features a highly efficient power amp module and incorporated DSP.

Model W-82C & W-15C/W-15CP(Active)
Type Line arry system
line arry sub-bass system(W-15C/W-15CP)
Frequency Response 70Hz-20KHz±3dB
40Hz-500Hz±3dB(W-15C/W-15CP)
Power handling 250W(RMS)500W(PEAK)
500W(RMS)1000W(PEAK)(W-15C/W15CP)
Power amp 2X600W/4ohm + 1X900W/8ohm(W-15CP)
Amplifier type

Switching power amp, class D circuit

Other functions Bluetooth,DSP (W-15CP)
Sensitivity 96dB(1W@1M)
106dB(1W@1M)(W-15C/W15CP)
Max@S.P.L 116dB(PEAK/1M)
130dB(1W@1M)(W-15C/W15CP)
LF section 1×8"(210mm)woofer 50mm(2in)coil
15"(380mm)woofer 100mm(4in)coil
(W-15C/W-15CP)
HF section 1×1.75"compression driver with44mm
titanium diaphragm
Nominal impedance 8 ohm(W-82C)& 8 ohn (W-15C/W-15CP)
Output section 2-channel
Dispersion pattern 110º H×9º V
Surface finish Black paint
Array design Arrays of less than 3×W-82C will
provide poor dispersion control and are
neither recommended nor supported
Speaker cables 1(+)1(-) Built in crossover
Rigging system Please refer to the W-82C user's
manual before any operation
Input connectors 2×NL4MP speakon
Recommend crossover 70Hz-20KHz
40Hz-100Hz(W-15C/W-15CP)
Dimensions 544×245×375mm(W×H×D)
515×450×611mm(W×H×D)
(W-15C/W-15CP)
Package dimensions 615×315×445mm/0.09cbm
585×520×680mm/0.22cbm
(W-15C/W-15CP)
Enclosure HLPE(W-82C)/Plywood(W-15C/W-15CP)
Net weight 12.5kg(W-82C)/34kg(W-15C)/40kg(W-15CP)
Gross weight 14.5kg(W-82C)/37kg(W-15C)/43kg(W-15CP)
