Model: | 3.2V200AH |
---|---|
Brand: | Lirhium Power |
Origin: | Made In China |
Category: | Electronics & Electricity / Battery, Storage Battery & Charger |
Label: | 3.2V module battery , lithium battery , energy storage batte |
Price: |
-
|
Min. Order: | 100 pc |
Features of LiFePO4 battery:
1, Soft packing, poor liquid, laminated lithium battery we manufactured is safety
2,The battery has long cycle life, low internal resistance, high energy density etc. Cycle life is more than 2000 times. Gravimetric specific energy is up to 120WH/KG, volumetric specific energy is up to 210WH/L, higher than industry average.
3, Cycle life is more than 2000 times.
4, Combination method can be according to the customers' requiremtns.
5, Lithium iron phosphate battery has the characteristics of 360 randomly placing, high space utilization.
6, The features of the battery is maintenance-free, wide usage temperature, high reliablity and no pollution.

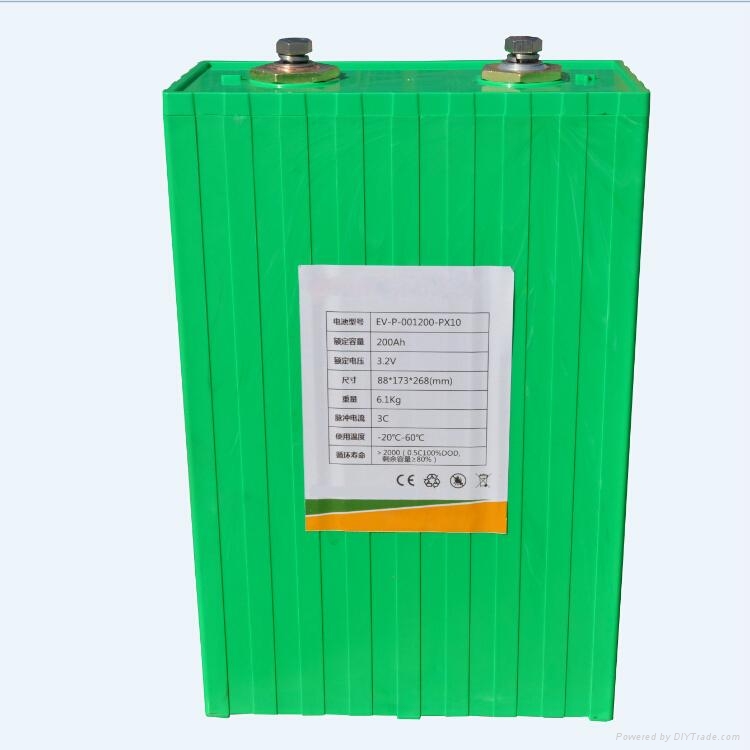

Specification of battery module
Voltage |
3.2V |
Capacity |
200AH |
Standard Charging |
Constant current at 0.3 C with max. voltage Of 3.6 V and cutoff current at 0.01C |
Standard Charging Method |
Constant current at 0.5 C to 2.0 V |
Max. Charging Current |
100A(0.5C) |
Max. Discharging Current |
200A(1C) |
Operating Temperature |
Charge:0°C-45°C |
Discharge:-20°C-60°C |
|
Storage Temperature |
-10°C-45°C Less than 3 months,0°C-25°C Less than 1 year |
Weight |
6.1Kg |
Dimension |
88*173*268(mm) |
Cycle Life |
>2000 times |
