Mud Agitator

Quick Details

Place of Origin: Hebei, China (Mainland)

Brand Name: GSSY

Model Number: NJ

Condition: New

Oilfield: solids control

HDD&CBM: mud system

Slurry separation: Mud system

Mixer Type: Agitator

Product Type: drilling mud mixing

Application: Liquid with Suspended Solids

Additional Capabilities: mixing

Voltage: 380-460v

Certification: ISO

Warranty: 12 months

After-sales Service Provided: Engineers available to service machinery overseas



Product Description

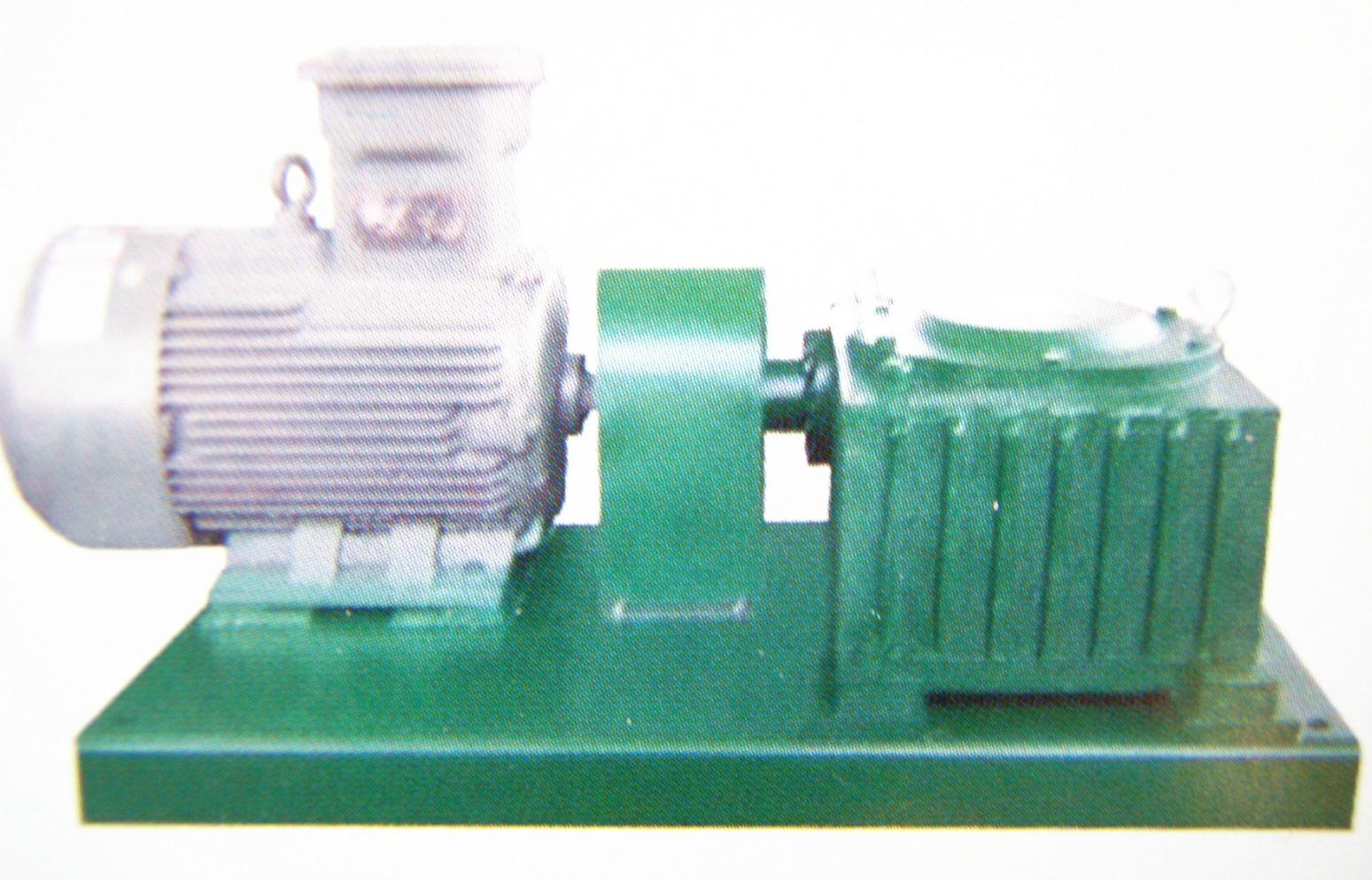

GSSY Mud Agitator

NJ series mud Agitator, Less than 5.5 kW drilling mud Agitator adopts the blender cycloid speed reducer, and it is applied to the drug liquids mixing tank. This mud agitator has the advantage of compact structure, so it occupies small area. More than 7.5 kW Mud Agitator uses the turbo and worm gear speed reducer, with the large torque transmission, the  revolution is steady, it works reliable and has great merit. Common model of mud agitator is NJ5.5 KW, NJ7.5kW, NJ11kW and NJ15kW.The drilling mud agitator is an important components for GSSY Solids Control drilling fluids processing system.



GSSY mud agitator mix the suspend the solids using both axial and radial flows, and by utilizing low shear mixers to suspend and mix mud additives particle size degradation and polymer shear. Unlike centrifuge pumps or mud guns. The GSSY Mud Agitator is relatively low shear and low energy device, so it’s easy to operate and inexpensive to maintain. This will ensure that mud additives are homogeneously mixed to prevent dead spots. Agitators will keep the active mud system flowing even when the pumps are disengaged and keep the weighting agents in suspension.



Our Service

A) Pre-Sales Service: Free consultancy and design according to clients requirements, provide optimal proposal for individual clients.



B) After Sales Service: Guarantee & Commissioning: GSSY Provide 1 year guarantee and service for first time commissioning of system and training up clients engineer.



C) Emergency Service: According to the time of finishing formalities .GSSY Engineers will leave for the job site ASAP or provide long-distance service, and finish trouble shooting. GSSY also keep try to make offices around the world.



D) Spare Parts: GSSY always have spare parts available in stock to ensure fast delivery.





parameters



Agitator Model	NJ-5.5	NJ-7.5	NJ-11	NJ-15
Motor Power	5.5KW	7.5KW	11KW	15KW
Impeller output Speed	72RPM	72RPM	72RPM	72RPM
input Speed	1440rpm	1440rpm	1460rpm	1460rpm
Impeller Dia.	800mm	800mm	Up:920mm Down:450mm	Up:920mm Down:450mm
Propose shaft length (mm)	1000-1500	1200-1700	1500-2000	1800-2500
Dimension(L*W*H)	1250x680x640mm	1870x610x950mm	1940x610x1030mm	1000x650x2340mm
Weight:	310kgs	340kgs	430kgs	460kgs
Electric Specs	380V/50HZ Or 460V/60HZ Or Customized
Remarks	Explosion Proof motor
