Aluminum Alloy Vision Measuring Machine

Aluminum Alloy Vision Measuring Machine
Model:MUMA200
Brand:3dfamily
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:MUMA , 3dfamily , VMS
Price: ¥50000 / pc
Min. Order:1 pc
Inquire Now
点击这里给我发消息

Product Description

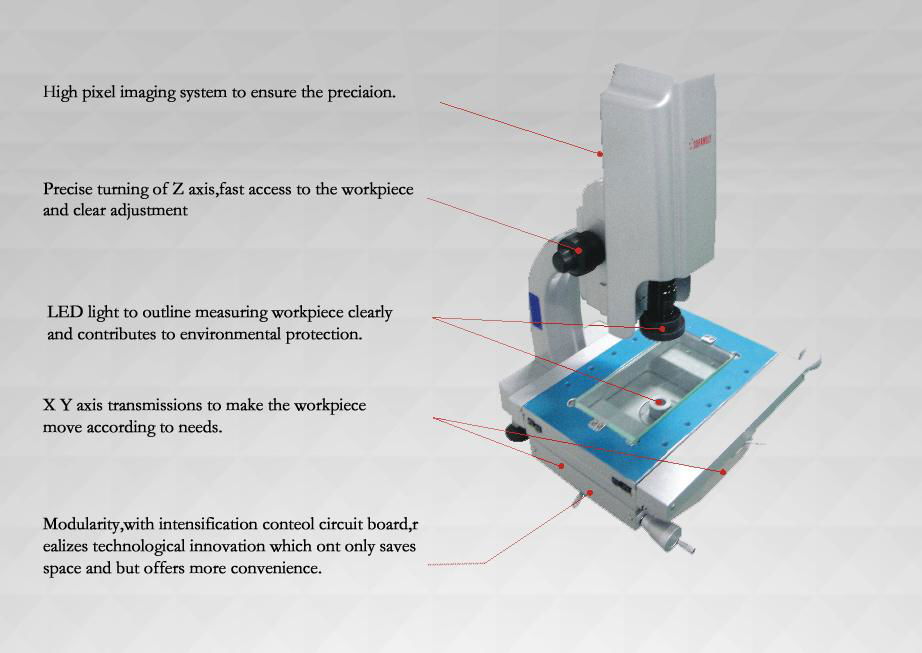

~Product Introduction:The MUMA Measurement System is a portable vision measurement system offered as a cost effective solution for manual, small part inspection. Designed with the practicability in mind, the MUMA has a compact design, lens power supply by USB or external power, fine-tuning device, and an external computer. These features provide for high portability, convenience, and easy upgrades. Add MUMA Pro software to handle measuring applications with ease.

~1.Pretty design with compacted frame, steady performance and facilitated operation.


2.Aluminum alloy design is light, better rigidity and high heat conductivity.


3.New Z-axis transmission device with precision fine-tuning and rapid move.


4.Step zoom lens doesn't need any linear calibration with software.


5.High resolution 1,300,000 pixels CMOS without image card.


6.USB2.0 interface supports plug and play can be linked to notebook PC.


7.The power supply is by the PC USB interface or the changeover device.

~

Model MUMA200
Work platform Size(mm) 355*220
Measuring Stroke(mm) 200*100
Machine Size(mm) 395*355*635
Weight(kg) 23
Loading(kg) 10
Base and Column Material cast aluminium
Operation manual
Transmission XY:independently developed precise toothless screw drive
 Z: original coarse and fine transmission mechanism
Lens 3DFAMILY-P type continuous zoom lens
 (optional with signal feedback lens)
Magnification Optical magnification:0.7X-4.5X
 image magnification:38X-240X
 (1920*1080 display resolution)
CCD USB interface megapixels COMS
Light Source surface lamp: zonal control white 4-phase lights
 contour light: LED nearly parallel light, white
 three color options (white, red, green)
 control modes: programmable
Optical Ruler Resolution(um) 1
Precision(X/Y)(um) (3+L/200)
Repeatability(X/Y)(um) 3
Software OVM-MUMA
Warranty One year
Applicable Environment Power:110V-220V±10% 50/60HZ,
 temperature:20±5℃,
Humidity:45%-75%

~Mobile fittings, home appliances, connector, machine fittings, precision fixture, plastic, hardware, circumjacent fields of computer and so on.

Aluminum Alloy Vision Measuring Machine 1Aluminum Alloy Vision Measuring Machine 2Aluminum Alloy Vision Measuring Machine 3Aluminum Alloy Vision Measuring Machine 4Aluminum Alloy Vision Measuring Machine 5
