~3D Vision Measuring Machine

Product Introduction：NVC 3D vision measuring machine uses American original Navitar automatic zooming lens with 5-ring 8-district forty quadrants light, can achieve the precisely measuring of some complicated workpiece in continuous zooming. Shortcut key of circle detection , locking type general control switch, emergency button, not only can satisfy cycle detection quickly, but also can stop machine promptly in emergency condition.
 OVM 3.0 software can offer basic measure functions of point, line, plane, cylinder, cone, curve, curved surface and other geometric elements. Measuring data can be output to EXCEL, WORD and TXT or output to DXF for CAD design. NVC series is the most competitive machine in the field of precision machine.

~Cycle detection shortcut
 Can realize cycle detection quickly
 in editing measuring condition

 Laser system available for selection
 Can achieve many special
 measuring functions

 High quality linear guide rail
 Maintain machine smoother moving

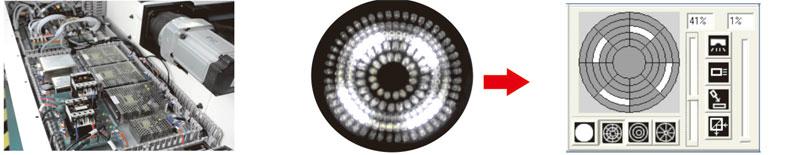

 High integrated circuit design
 Maintain moving stability

 Surface round light
 5-ring 8-district forty quadrants light

~
Model NVC322 NVC432
Workstage Size
 (mm) 348×248 448×348
Measuring Range(X/Y/Z:mm) 300×200×200 400×300×200

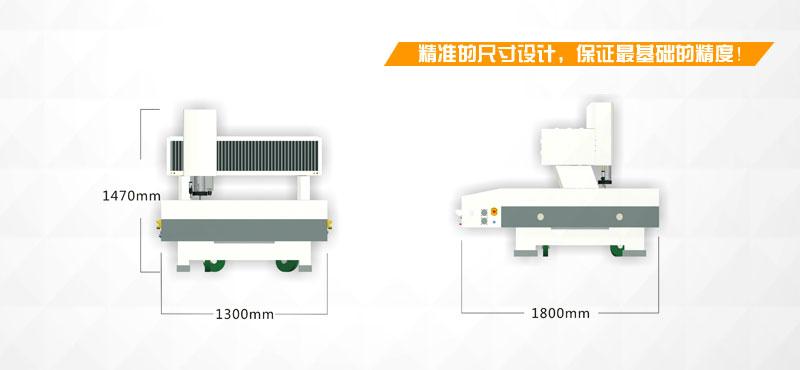

Machine Size (mm) 1030×792×1858 1030×792×1858
Machine Weight(kg) 575kg 600kg
Lens Automatic NAVITAR Zoom lens
Magnification Optical magnification:0.7X-4.5X; Image magnification: 28X-145X, (display resolution:1440x900)
CCD SONY high pixel CCD
Material THK Linear Guides,Grinding level Screw Rod
Operation Mode Automatic
Light Top light: Zone control 40 quadrants light: White  Bottom light: LED Parallel light,
 White,Three tricolor optional(white/red/green),control mothod: programmable
Optical Ruler Resolution 1μm(0.5μm optional)
Transmission Mode Screw rod transmission
Software OVM Pro 3.0
Free Maintain Time One year
Workstage and Column Material High Precision Granite
X/Y axis precision (3+L/250) μm
X/Y axis repeatability 2μm
Z axis repeatability 4.5μm
Motor Control Mode Intelligent integration(Mouse or Joystick)
Measuring speed（mm/s） X:150mm/s, Y:125mm/s, Z:80mm/s
Accelerated speed (mm/s²) X:300mm/s², Y:200mm/s², Z:100mm/s²
Machine Load Capacity 30kg
Applicable Environment Power: 110V-220V±10% 50/60Hz,Temperature:20±5℃,Humidity: 45%~75%


 ~Widely used in mechanics, electronics, mold, metal, rubber, low voltage electrical, magnetic materials, precision metal, connector, terminal, mobile phone, home appliances, computer, LCD, printed circuit board, automobile, medicalinstruments, watch etc.
