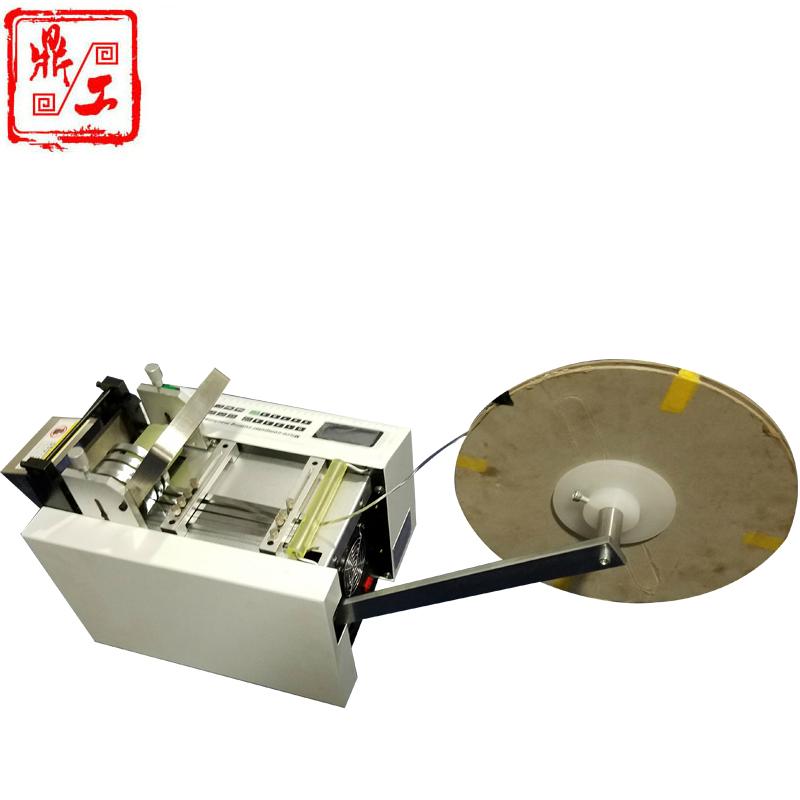

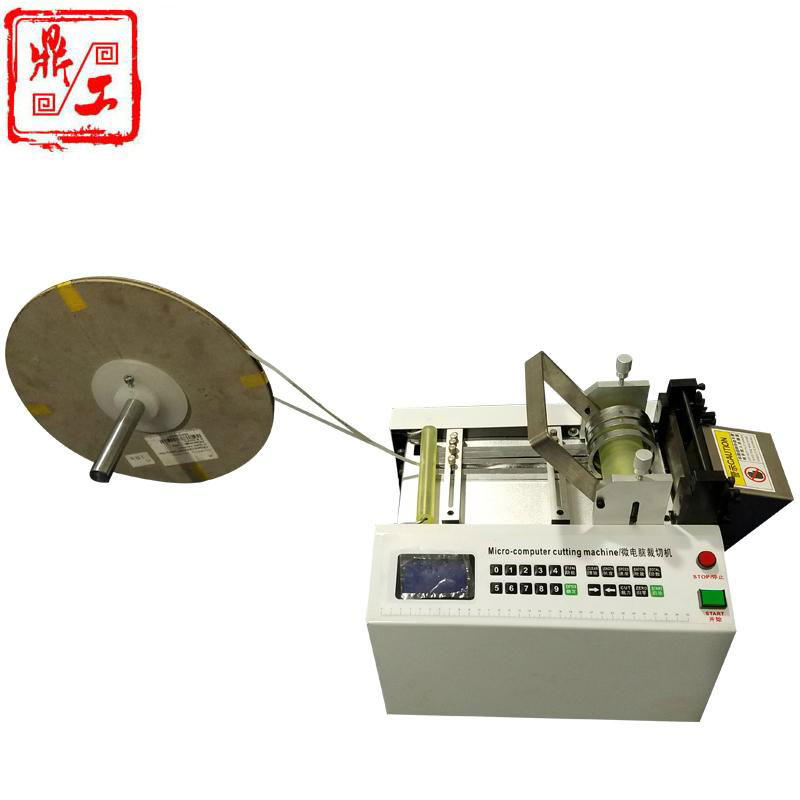

Nickel belt welding with automatic straightening slicer

Model: DG - 100



Cutting range (applicable to new energy industry such as battery, solar energy industry, etc.)

Nickel/nickel/nickel foil, copper/copper strip, copper foil, aluminum/aluminum strip/foil, electrode, pole piece, spread sheets, plastic sheet, mica Slice, battery separator, and so on.



Product advantage:

1. The mechanical structure of the special and import cutter, solve the problem of uneven with burr of incision

2. Lack of automatic stop, do not need to monitor the artificial management.

3. The whole Chinese LCD display, operation be clear at a glance, convenient operating employees.

4. High speed feeding, microcomputer program control precision of 0.1.

5. The straightening device can be mounted to the system to realize the function of straightening.

Product system composition:

Main control board, according to the keypad, 128 * 64 LCD screen, stepper drives, stepper motor, rollers, etc.



Product principle:

The machine adopts microcomputer digital display device and cutting length, number, feeding speed set freely, equipped with adjustable roller feeding

Institutions, automatically adjust the pressure on both sides and lift, can rapid feeding, cooperate with the plunger type conveying mechanism, effectively prevent the materials

Injury, model design accord with human body engineering principle, operation simple automation is high.



Product parameters:

Model: DG - 100

Power: 220 v 50/60 hz

Cutting speed: 110 times/min

Cutting width: 0.1-100 - mm

Cutting length: 0.1-9999 - mm

weight: 28kg

Specification: 420 * 350 * 390 mm



After the warranty:

The company equipment in normal use, the machine one year warranty, mainboard warranty for three years.

The company to provide life-long maintenance for equipment, to provide spare parts for life.
