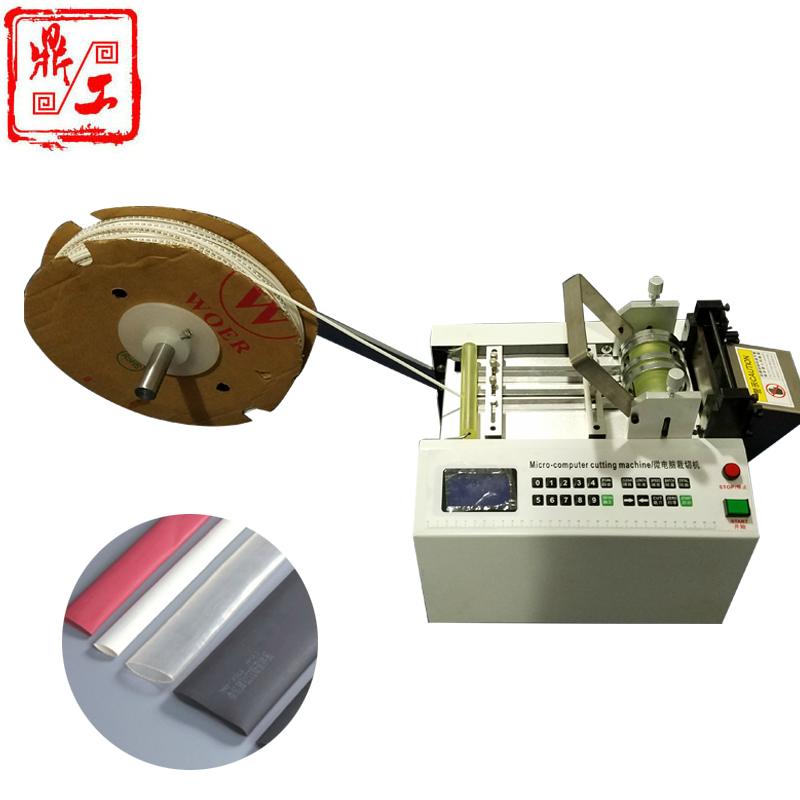

Heat shrinkable tube heat shrinkable casing automatic pipe cutting machine

Model: DG - 100



Scope of application:

Widely used in electronic industry, wire processing industry, insulation materials production industry, fixed-length cutting heat shrinkable casing, famous cooperation manufacturer "sanlian plant".



Technical parameters

Brand: Topone

Model: DG - 100.

The power supply: AC110/220 v 50/60 hz

Cutting width: 1-100 - mm

Cutting length: 1-9999 - mm

Cutting tool material:SKD - 2 high speed steel

Control system:MCU + stepper motor

weight :28 kg

Overall dimensions:Length * width * height W350 L400 * * H390 mm



The performance characteristics of

1. Special mechanical structure and special cutting tools, with professional software control completely solve the problem of incision uneven: to cut flat/degree.

2.. Independent development of the special cutting machine motion control system, the core technology, and is suitable for various industries fixed-length cutting equipment.

3. The whole Chinese LCD display, operation is clear, simple and convenient.

4. High speed feeding, microcomputer program control precision of 0.1.

5. Any continuous adjustable length and speed, achieve high efficiency operation.

6. The cutting speed can be adjustable, full control high speed cutting machine.

7. Set the dynamic grouping and total cumulative count.

8. The batch suspension and the delay time can be set.

9. In automatic stop, do not need special DingShou.



The quality assurance period

Shenzhen Topone automatic equipment co., LTD., the independent development of special computer cutting machine motion control system, suitable for various industries fixed-length cutting equipment, machine warranty for a year, circuit warranty for 3 years, permanent after-sales service.
