dmx rgb addressable led panel light

Model:	LED-PL1503636
Brand:	ISEELED
Origin:	Made In China
Category:	Consumer Electronics & Lighting / Lighting / Professional Lighting
Label:	led panel light , dmx panel light , addressable led pane
Price:	US $25 / pc
Min. Order:	4 pc

Inquire Now

Product Description

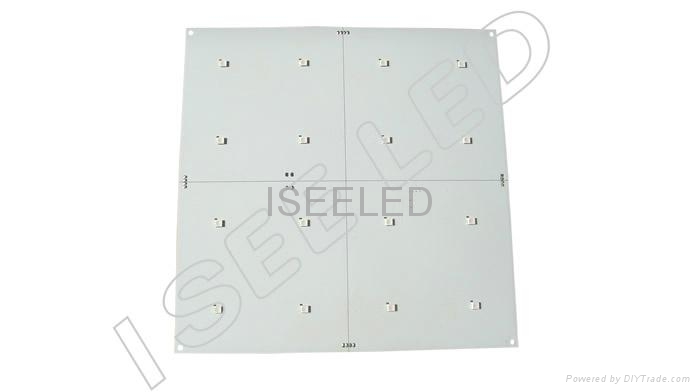

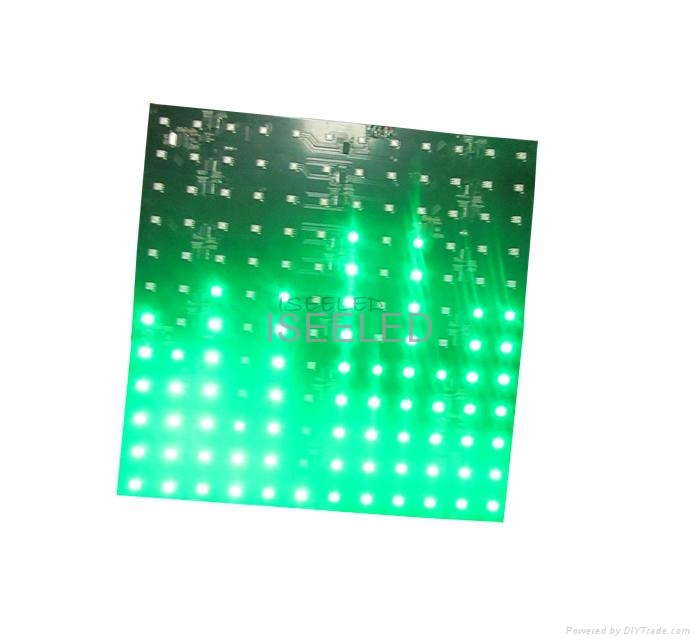

DMX LED Panel Light

1, Ultra wide voltage input(DC:12-24V), adopt high brightness
2, LED chips, SMD RGB 5050,

3, 1 led/pixel, 1 panel/pixel which realize manifestation and visual impact
4, Standard DMX 512 control, 44frames/second, manual or auto-addressing customized

5, 2D pixel mapping to set on the software programming

6, Protections: short circuit, over current , over temperature .

7, With working life-span at least 50,000hrs;

8, Fast get through input/output signal;

9, Support adjustable color temperature within 2,500k-10,000k ;

10,Application: adapted for all kinds of installation methods including, stage background, lighting background, video display, club and bar lighting

Model NO.	LED-PL150DMX3636	LED-PL150DMX3601	LED-PL250DMX1616	LED-PL300DMX1616	LED-PL600DMX144144
LED type and QTY	36 pcs SMD RGB 5050	36 pcs SMD RGB 5050	16 pcs SMD RGB 5050	16 pcs SMD RGB 5050	144 pcs SMD RGB 5050
Emitting angle	120 degrees	120 degrees	120 degrees	120 degrees	120 degrees
Color	■■■ RGB full color	■■■ RGB full color	■■■ RGB full color	■■■ RGB full color	■■■ RGB full color
Gray Scale	256	256	256	256	256
Operating Voltage	DC 12-24V	DC 12V	DC 12-24V	DC 12-24V	DC12-24V
Power	12W	10W	6W	6W	55W
Control Protocol	DMX512
Control Mode	DMX Artnet / DMX DVI / Standalone Control
Address Setting	Automatically/ Manually
Dimension	150*150MM	150*150MM	250*150MM	300*300MM	600*600MM
PCB Material	Standard FR4 PCB Panel
PCB Color	White color or other customized
Pitchr	P25MM	P150MM	P62.5MM	P75MM	P25MM
LED Source Life	50,000 hours, based on test data of LED manufacturer
Temperature	-4℉ to 122℉(-20℃ to 50℃) operating temperature
Humidity Range	0 to 95% non-condensing
Protection	IP20
Package	Carton
Note	Custom-made housing is available
